Full Perimeter Plastic Pallets
We manufacture full perimeter plastic pallets for loaded floor stacking, returnable logistics, beverage distribution, warehouse racking and automated material handling.
16 product options
What Is a Full Perimeter Plastic Pallet?
Select each numbered section to compare the base structure, available sizes, handling access and rack-use conditions.
Definition and Base Geometry
A full perimeter plastic pallet has a connected bottom frame around all four outer sides, normally with two internal cross-runners. This 6-runner underside is also called a picture-frame base, frame base, perimeter base, cruciform base, Hui base or cross-bottom pallet.
Compared with a 3-runner pallet, the connected base gives your unit load broader contact during loaded floor stacking and repeated forklift movement.
Available Sizes and Product Weight
We offer fixed footprints from 1100 × 830 mm to 1400 × 1400 mm for cartons, crates, beverage cases, drums, bags and industrial components.
Deck area ranges from 0.913 to 1.96 m², while published plastic-body weights range from 10 to 23.2 kg.
Forklift Entry and Construction Options
Featured models provide 4-way forklift access—twice the approach directions of a 2-way pallet.
You can choose one-piece molded, welded, modular or related reversible double-sided structures, with open or solid decks and model-specific steel reinforcement.
Rack Use Is Model-Specific
“Full perimeter” describes the bottom-base geometry; it does not mean every model is rackable.
If you require rack storage, you may choose to add our steel reinforcement bars, which are placed inside the pallets.
Full Perimeter, 6-Runner and Related Heavy-Duty Pallets
Filter by deck or handling requirement. Every product card is present in the initial HTML so buyers and search engines can read the complete range without JavaScript.
16 products available

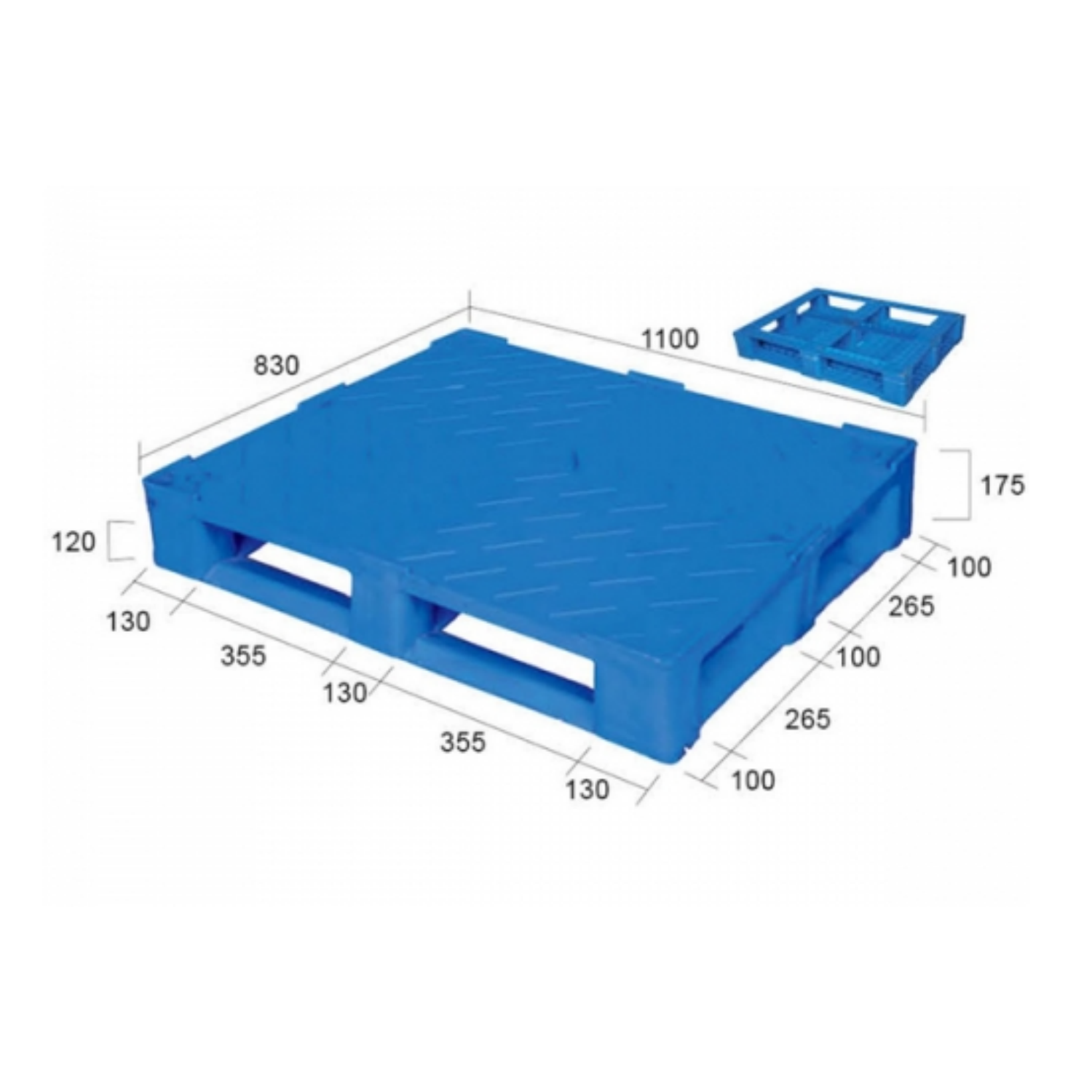

1100 × 830 Full Perimeter Solid-Deck Pallet
A compact picture-frame pallet with a continuous anti-slip deck. Adding 3 steel tubes increases both dynamic and static capacity by 50% and adds a published rack rating.
- Dimensions
- 1100 × 830 × 175 mm
- Body weight
- 13.1 kg plastic
- Deck / base
- Solid / full perimeter
- Reinforcement
- 3 tubes, 2.5 kg
Best for: Compact industrial loads, bags, cartons and reinforced rack use.

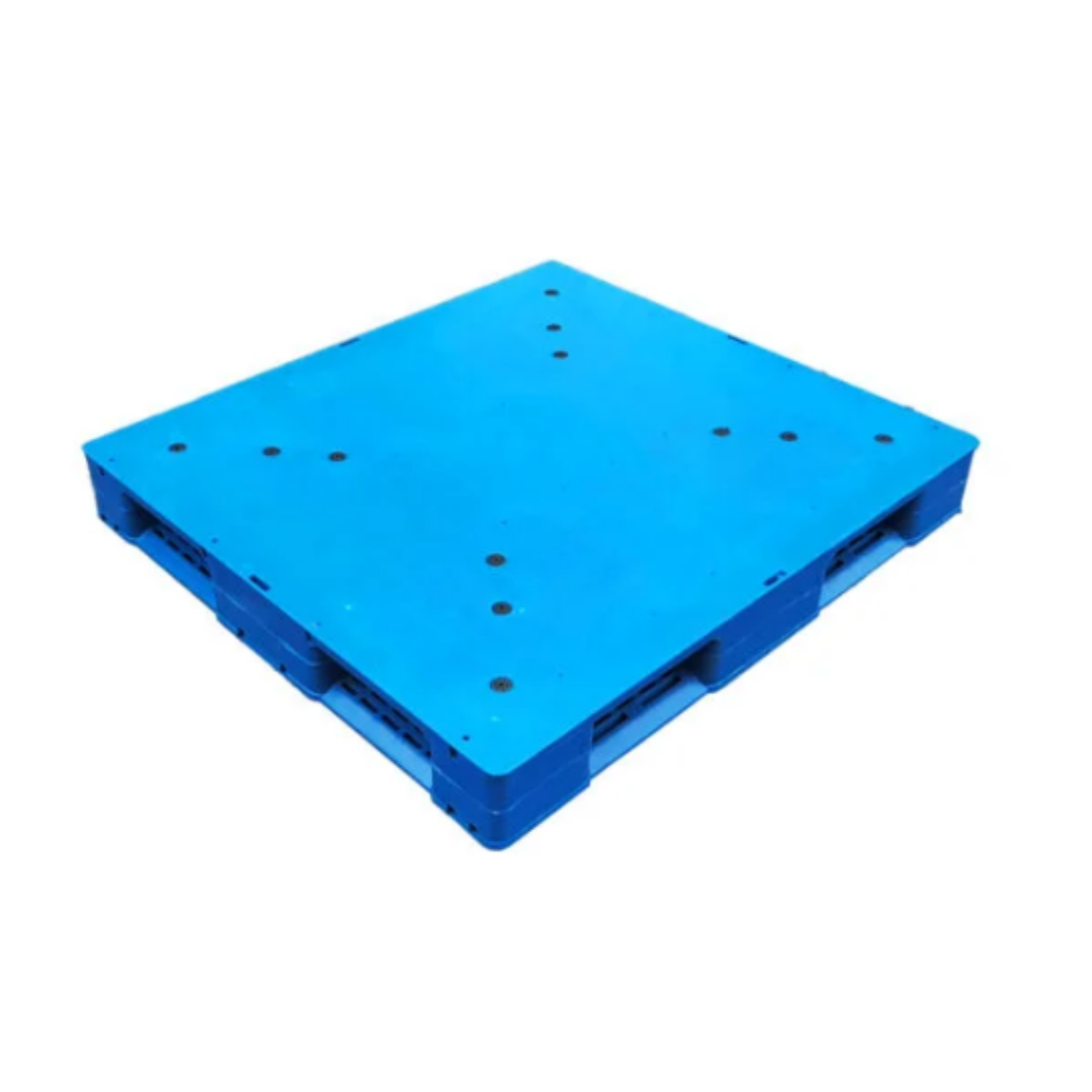

1100 × 1100 4-Way Entry Double-Sided Pallet
A welded, reversible pallet with broad support above and below. We include it as a related heavy-duty option, not as a conventional single-deck picture-frame pallet.
- Dimensions
- 1100 × 1100 × 150 mm
- Body weight
- 23 kg plastic
- Deck / base
- Flat double deck
- Reinforcement
- 4 upper + 4 lower bars
Best for: Square unit loads, dense industrial goods and reversible use.

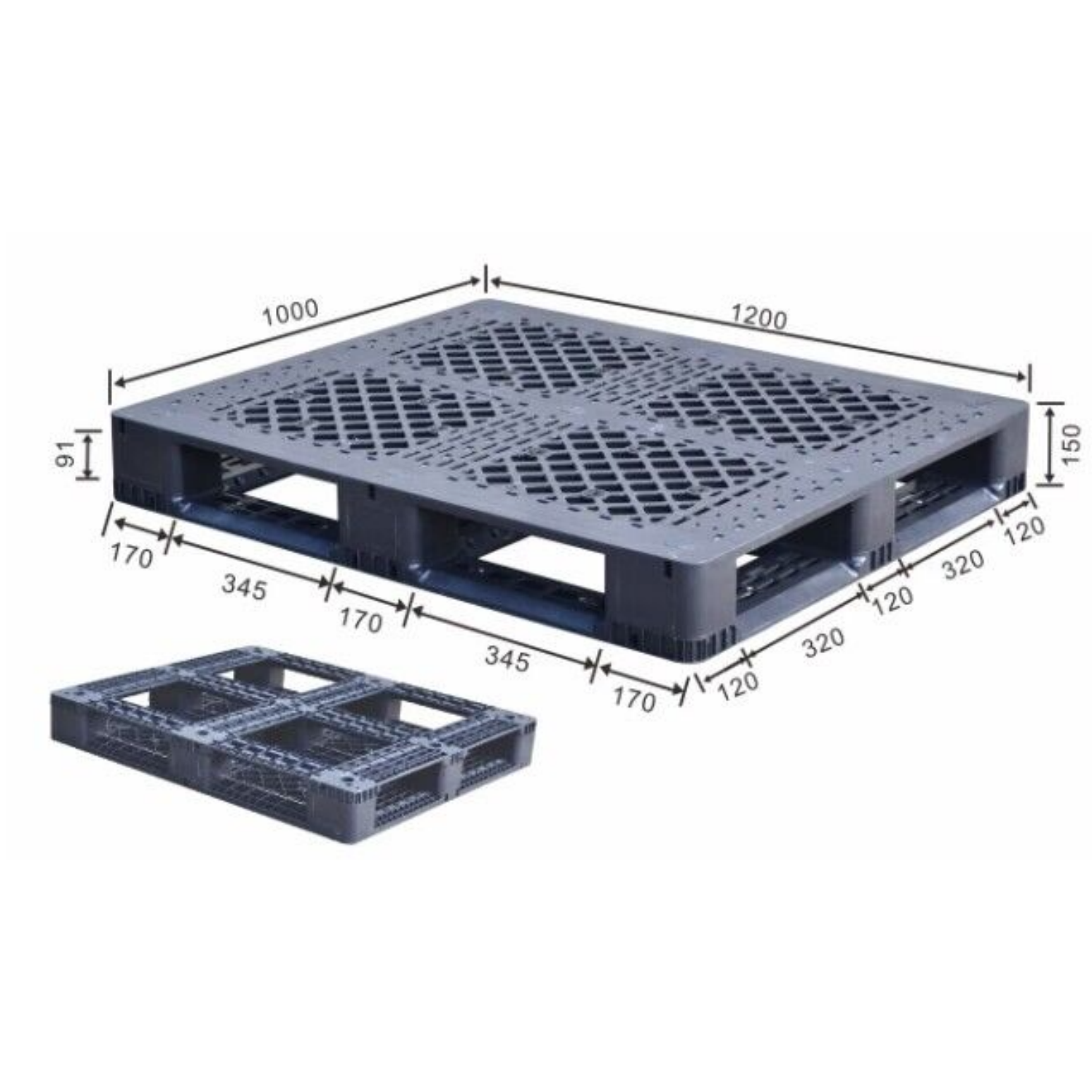

1200 × 1000 Beverage Full Perimeter Pallet
An open-deck beverage pallet for cases, trays and returnable drink distribution. Its grid promotes drainage and cold-air circulation around packaged loads.
- Dimensions
- 1200 × 1000 × 150 mm
- Body weight
- 17.5 kg plastic
- Deck / base
- Open / full perimeter
- Reinforcement
- 4 tubes, about 7 kg
Best for: Bottled water, soft drinks, beer crates and cold-chain distribution.

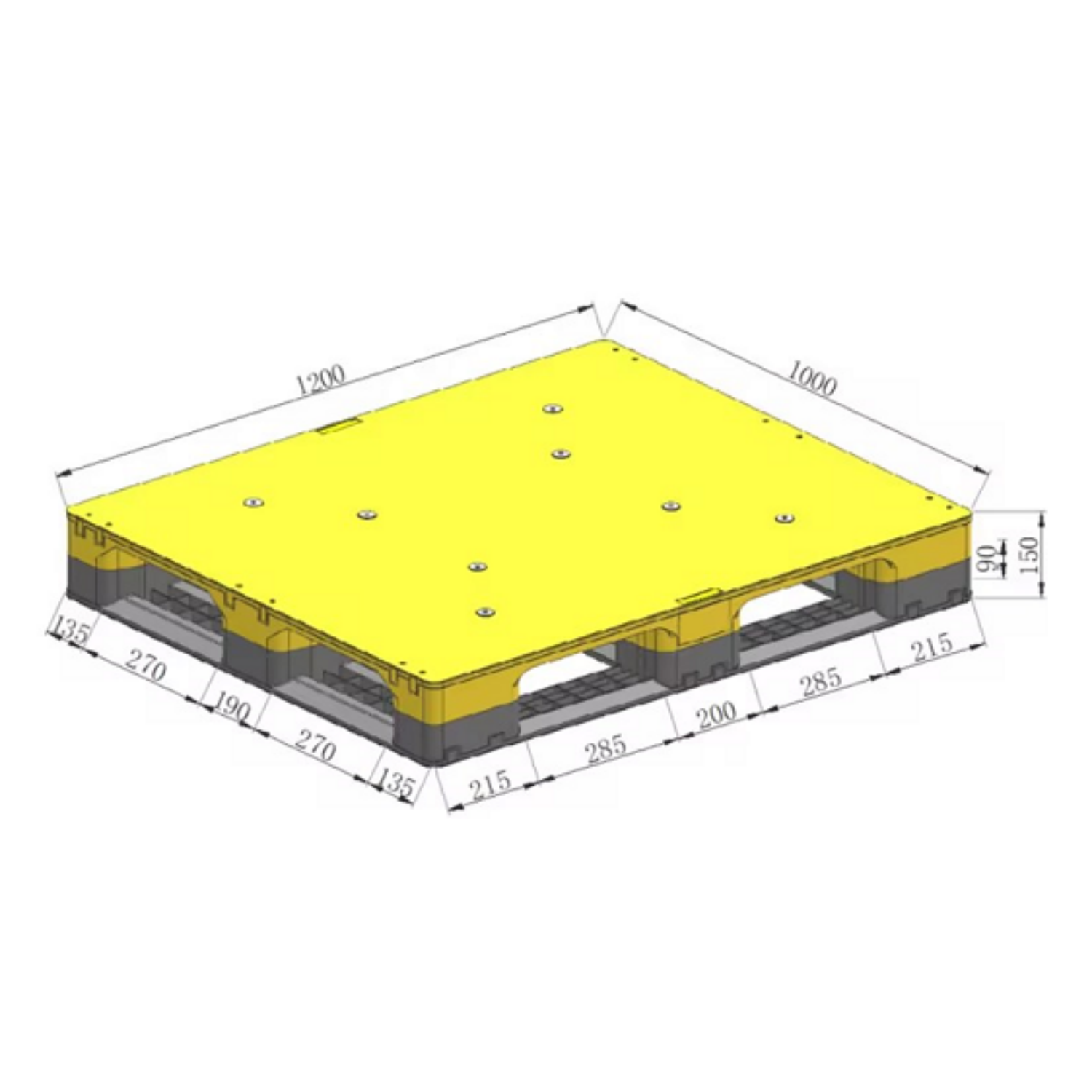

1200 × 1000 Yellow Picture-Frame Pallet
A high-visibility solid-deck pallet with a connected perimeter base. Six tubes reinforce the deck and 6 reinforce the bottom frame for balanced heavy-load support.
- Dimensions
- 1200 × 1000 mm; height not published
- Body weight
- 20.5 kg plastic
- Deck / base
- Solid / picture frame
- Reinforcement
- 12 tubes, 9.25 kg
Best for: Color-coded workflows, bags, cartons and smaller packages.

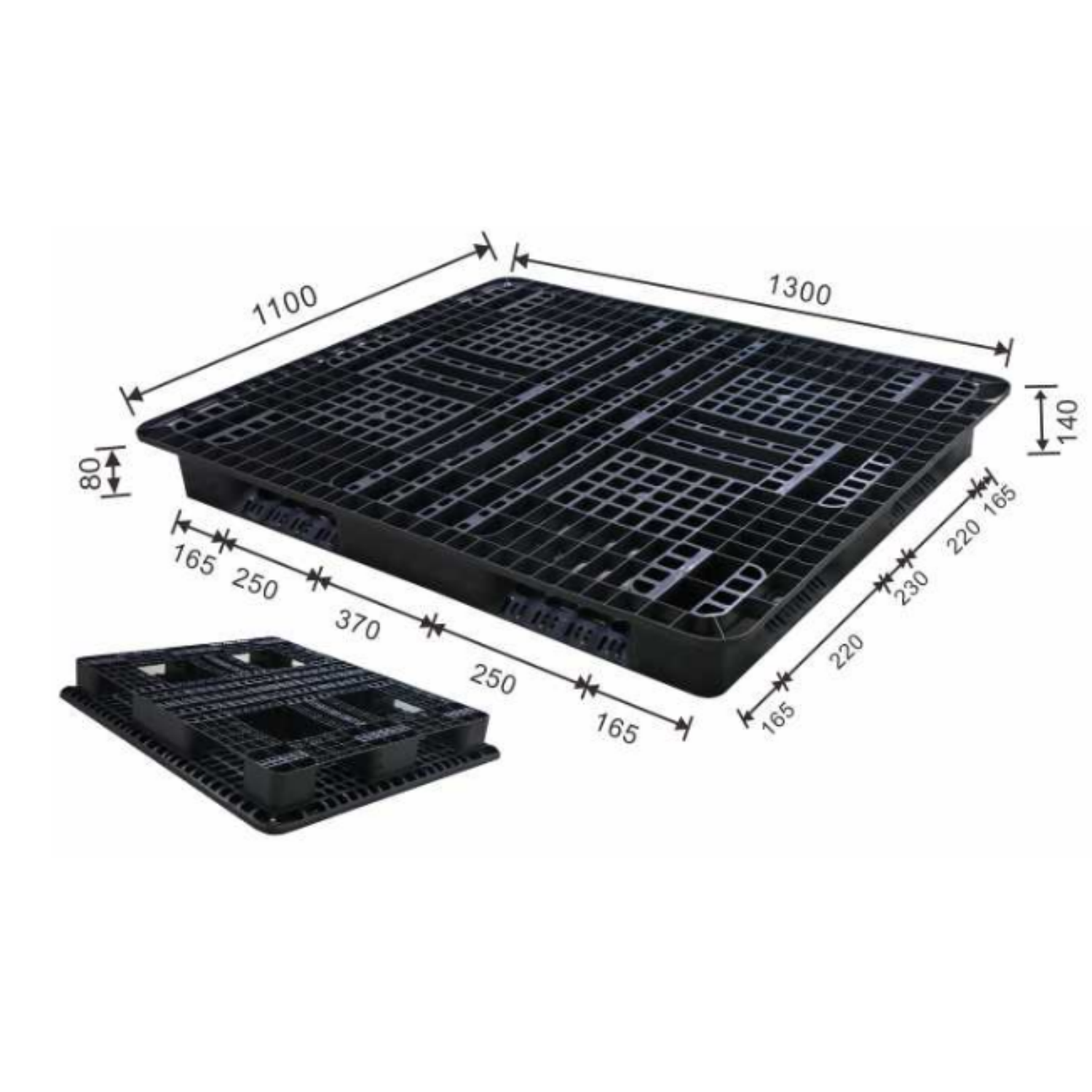

1300 × 1100 Returnable Full Perimeter Pallet
A lightweight one-piece pallet with no welded foot joints and no steel. Its 11.3 kg body carries 1,500 kg dynamically—about 133 times its own weight.
- Dimensions
- 1300 × 1100 × 140 mm
- Body weight
- 11.3 kg plastic
- Deck / base
- Grid / 6-runner
- Reinforcement
- No steel
Best for: Controlled return loops, large cartons, bags and flat-floor storage.
1100 × 1100 AS/RS Plastic Pallet
A square 6-runner pallet for repeat pickup positions in automated handling. Match the support span and operating load to each rack or stacker-crane project.
- Dimensions
- 1100 × 1100 × 150 mm
- Body weight
- 10.58 kg plastic
- Deck / base
- Grid / 6-runner
- Reinforcement
- Application-specific
Best for: AS/RS, conveyors and square unit-load patterns.
1100 × 1100 Modular Full Perimeter Pallet
A configurable platform adjusted in about 20 mm increments. More than 3,000 combinations cover standard and oversized builds, including lengths beyond 4 m.
- Dimensions
- 1100 × 1100 × 150 mm reference
- Body weight
- By configuration
- Deck / base
- Full perimeter
- Reinforcement
- 4+ steel bars
Best for: Non-standard footprints, automation and replaceable modules.
1165 × 1165 Heavy-Duty Stackable Pallet
A square heavy-duty 6-runner pallet. Five kilograms of steel raises dynamic capacity from 1,500 to 2,000 kg and supports a published 1,500 kg rack load.
- Dimensions
- 1165 × 1165 × 150 mm
- Body weight
- 23.2 kg plastic
- Deck / base
- Open / 6-runner
- Reinforcement
- 5 kg steel; 28.2 kg total
Best for: Heavy square loads, stacking and reinforced beam-rack use.
1200 × 1000 Rackable Pallet Y1210WTG
A one-piece field-pattern pallet with a 6-runner underside. The reinforced configuration uses 8 tubes weighing 7 kg for racking and heavier circulation.
- Dimensions
- 1200 × 1000 × 150 mm
- Body weight
- 12 kg plastic
- Deck / base
- Grid / 6-runner
- Reinforcement
- 8 tubes, 7 kg
Best for: General warehousing, repeat circulation and reinforced racks.
1200 × 1000 Plastic Beer Pallet
A flat-deck, full-perimeter format for beverage cases and brewery circulation. Steel reinforcement is optional; the product page publishes the standard floor-load values below.
- Dimensions
- 1200 × 1000 mm; height not published
- Body weight
- 16 kg plastic
- Deck / base
- Flat / 6-runner
- Reinforcement
- Optional
Best for: Breweries, drink cases and returnable beverage programs.
1200 × 800 Full Perimeter Euro Pallet
A reusable Euro-footprint pallet with an open deck and one-piece perimeter base. The 8-tube version increases dynamic and static performance by 50%.
- Dimensions
- 1200 × 800 × 150 mm
- Body weight
- 11.6 kg plastic
- Deck / base
- Open / full perimeter
- Reinforcement
- 8 tubes, 5 kg; 16.6 kg total
Best for: Euro logistics, stacking, export and reinforced storage.
1200 × 800 Plastic Euro Pallet Y1208WTC
A 10 kg Euro-format 6-runner pallet with optional 3-tube reinforcement. It combines a compact tare weight with a published 1,000 kg rack configuration.
- Dimensions
- 1200 × 800 × 150 mm
- Body weight
- 10 kg plastic
- Deck / base
- Open / 6-runner
- Reinforcement
- 3 tubes, 4.5 kg
Best for: Euro-size shipments, repeat handling and selected racks.
1300 × 1100 Rackable Pallet Y1311WTH
A large-format pallet for wider cargo patterns and reinforced storage. Dimensions follow the product detail table: 1300 × 1100 × 150 mm.
- Dimensions
- 1300 × 1100 × 150 mm
- Body weight
- 15 kg plastic
- Deck / base
- Open / 6-runner
- Reinforcement
- Reinforced option
Best for: Large goods, warehouse circulation and reinforced racks.

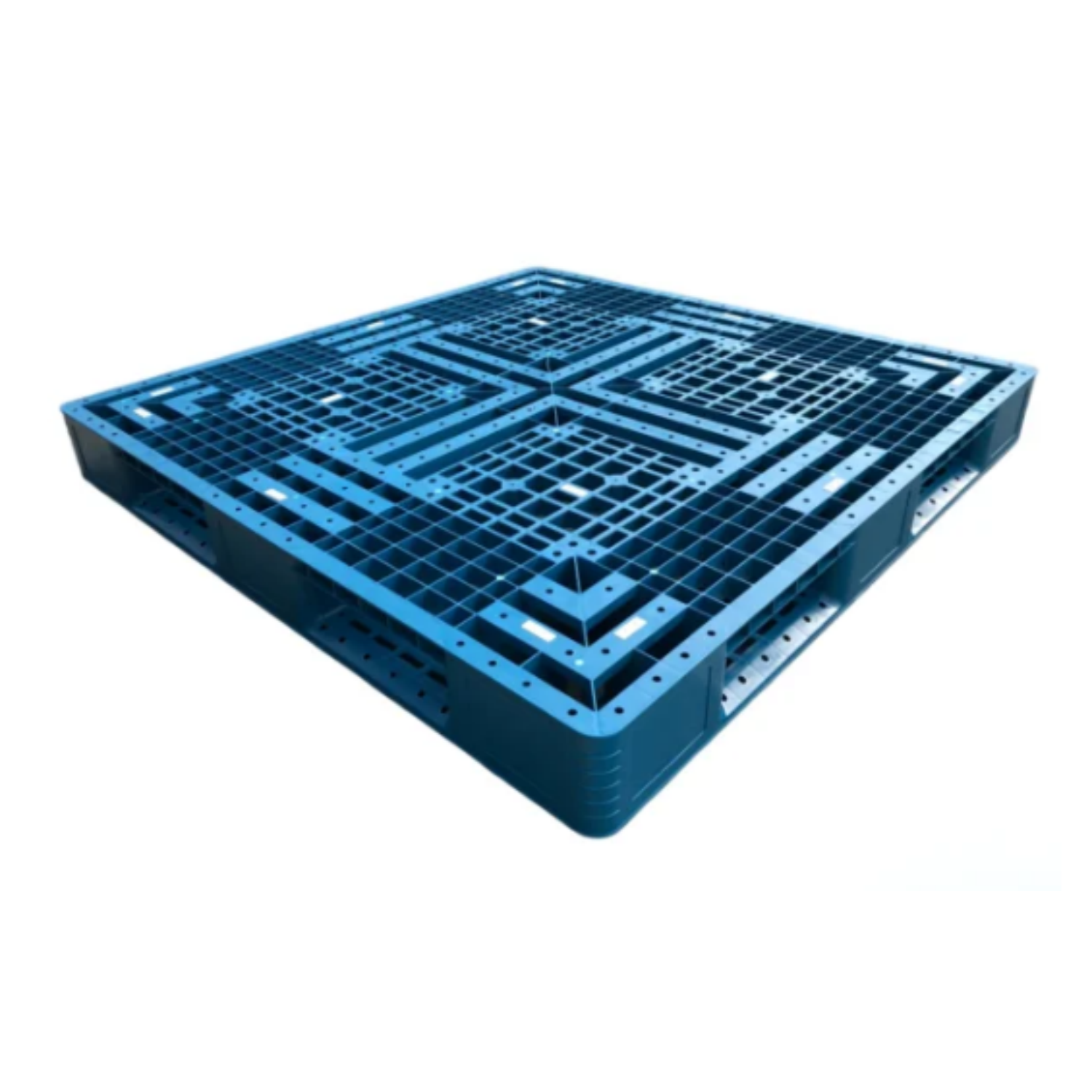

1400 × 1400 Full Perimeter Rackable Pallet
The largest fixed footprint in this range provides 1.96 m² of deck area. Its full perimeter base supports broad industrial loads and a published 1,000 kg rack condition.
- Dimensions
- 1400 × 1400 × 150 mm
- Body weight
- 21.5 kg plastic
- Deck / base
- Vented / full perimeter
- Reinforcement
- Published rack build
Best for: Oversized bags, drums and wide industrial components.
1200 × 1000 Rackable Pallet H1210PTS
A 135 mm low-profile welded pallet for floor loads and reinforced racks. The steel package weighs 8 kg and lifts published performance to 1,500 / 6,000 / 1,000 kg.
- Dimensions
- 1200 × 1000 × 135 mm
- Body weight
- 17.5 kg plastic
- Deck / base
- Solid / 6-runner
- Reinforcement
- 8 kg steel
Best for: Low-clearance handling and reinforced warehouse storage.
1100 × 1100 Black Perimeter-Base Pallet
An integral molded field-style pallet with a perimeter or Hui base. We use the product-specific 800 kg dynamic and 2,000 kg static ratings, not generic market references.
- Dimensions
- 1100 × 1100 × 150 mm
- Body weight
- 11 kg plastic
- Deck / base
- Grid / perimeter base
- Reinforcement
- No steel
Best for: Everyday warehouse movement and flat-floor stacking.
Why Buyers Choose Full Perimeter Plastic Pallets
Compare the eight differences that matter most in daily procurement: base support, load capacity, reinforcement, footprint, temperature, customization, forklift access and export handling.
Twice the Principal Runner Lines
A picture-frame pallet uses 6 connected runner lines instead of the 3 longitudinal runners on a conventional 3-runner base, giving your load broader underside contact during floor stacking.
Heavy-Load Configurations
Published configurations reach up to 2,000 kg dynamic, 6,000 kg static and 1,500 kg rack load on the relevant model, reinforcement and support condition.
Measured Reinforcement Gain
On selected models, steel raises dynamic load from 1,000 to 1,500 kg and static load from 4,000 to 6,000 kg—a 50% increase in both operating conditions.
Deck Area Matched to Your Cargo
Fixed footprints provide 0.913 to 1.96 m² of deck area. The largest offers 114.7% more area than the smallest for wide bags, drums, cartons and industrial components.
Selected-Model Temperature Span
Selected virgin-material configurations operate from -40°C to 70°C, covering a 110°C range across cold rooms, ambient warehouses and temperature-variable distribution routes.
Modular Size Combinations
Our modular system adjusts in approximately 20 mm increments, offers more than 3,000 combinations, supports builds beyond 4 m and lets you replace one damaged module.
Twice the Forklift Approach Directions
Four-way forklift entry provides 2× the approach directions of a 2-way pallet, helping your operators approach from either the long or short side.
No Wood, Nails or Wood Treatment
Plastic construction uses 0 wood and 0 exposed nails and requires 0 ISPM 15 heat-treatment or fumigation steps intended for wood packaging.
Full Perimeter vs 3-Runner, 9-Leg and Double-Sided Pallets
These names describe the underside, not a universal strength grade. Choose the structure that fits your floor, forks, rack supports, conveyor and empty-return route.
| Structure | Bottom geometry | Entry | Published reference | Best fit | Empty return |
|---|---|---|---|---|---|
| Full perimeter / 6-runner | 4 connected outer sides + 2 inner cross-runners | 4-way forklift | Up to 2,000 kg dynamic / 6,000 kg static / 1,500 kg rack by model | Loaded floor stacking, closed loops, selected racks and automation | Non-nestable |
| 3-runner / 3-skid | 3 longitudinal runners | Commonly 4-way forklift; pallet-truck route depends on openings | Capacity depends on the individual construction and support span | Defined conveyor contact and compatible rack beams | Non-nestable |
| 9-leg / nestable | 9 individual feet; 0 continuous runners | 4-way on compatible models | Lightweight example: 6 kg body / 1,000 kg dynamic / 2,000 kg static | One-way export and reduced empty-return volume | Nestable |
| Double-sided / reversible | 2 load-bearing deck faces | 4-way forklift | Current 1100 × 1100 example: 23 kg / 1,500 kg dynamic / 6,000 kg static / 1,000 kg rack* | Dense industrial loads and reversible use | Non-nestable |

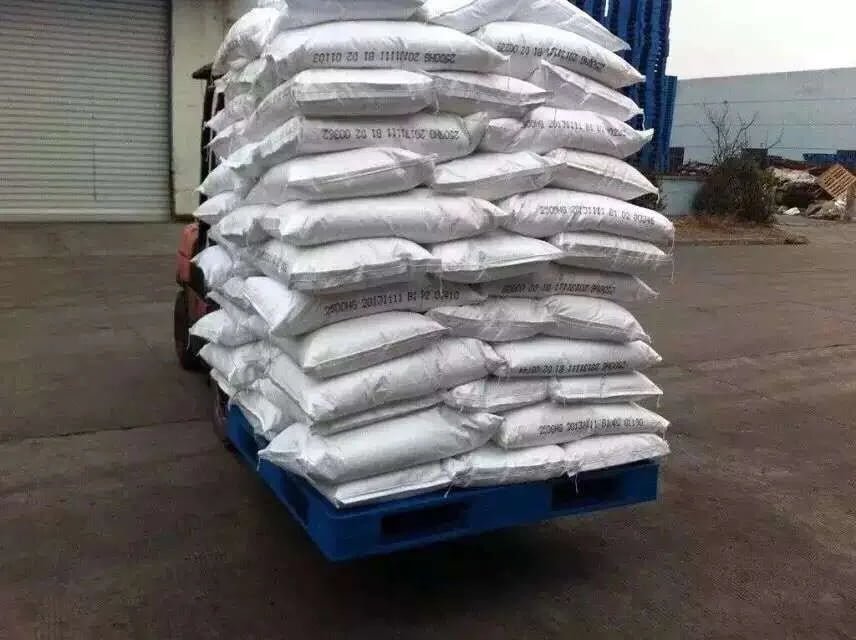

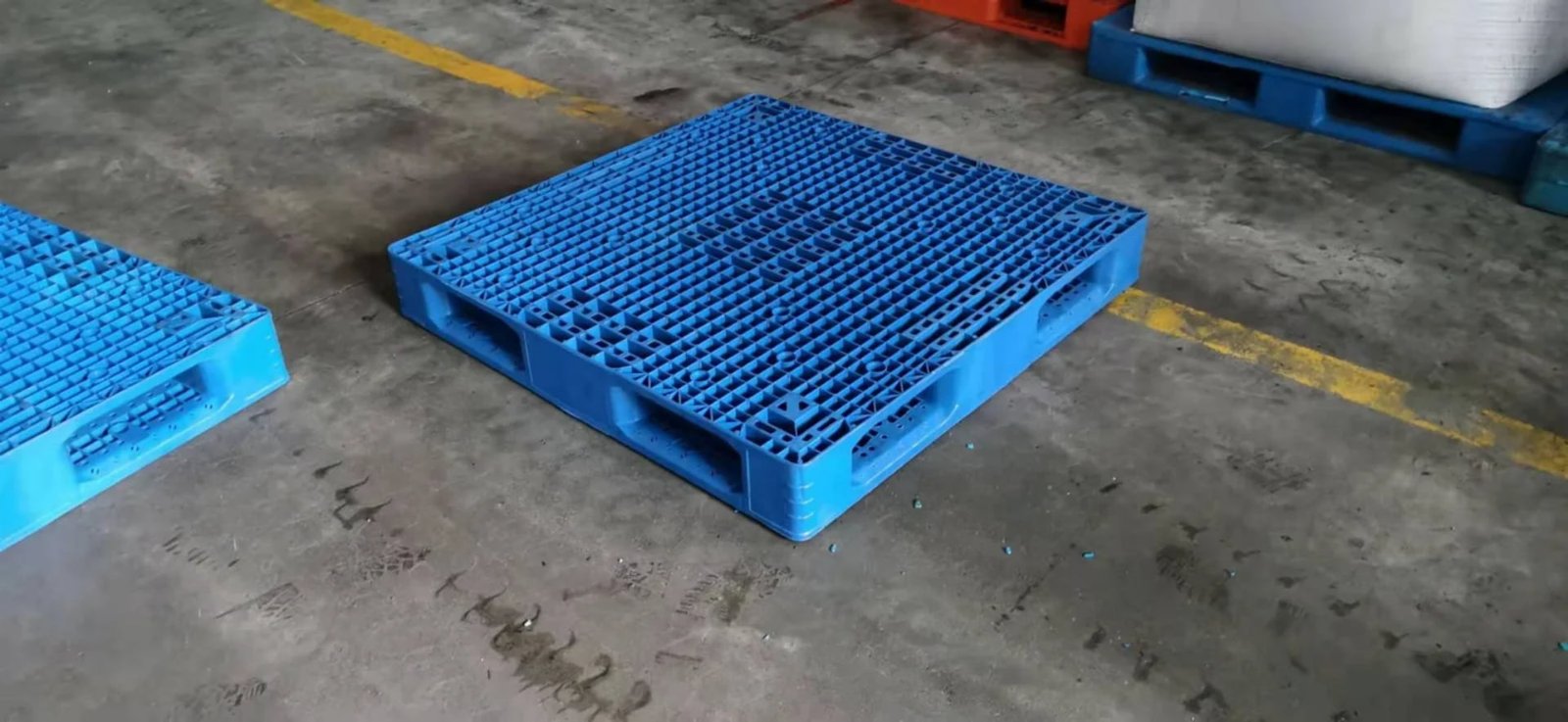

Full Perimeter Plastic Pallets in Daily Use

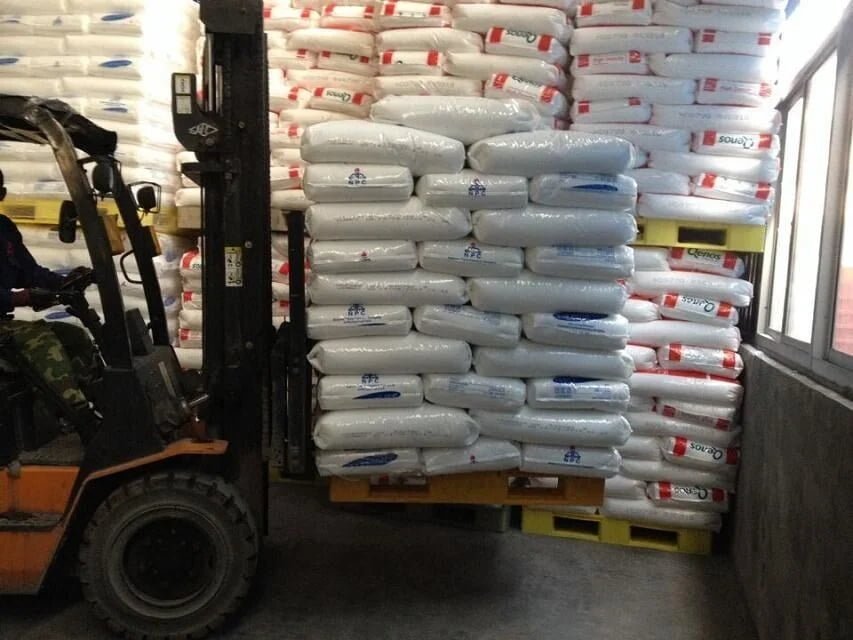

See how plastic pallets support floor stacking, forklift handling, bagged products, goods turnover and rack-based warehouse operations.
Full Perimeter Plastic Pallets by Use Case
Start with your load and handling route, then choose the deck, footprint and reinforcement that solves that job.
Beverage and Bottled Drinks
Our 1200 × 1000 beverage model reaches 1,500 kg dynamic, 6,000 kg static and 1,000 kg rack load with its 4-tube configuration.

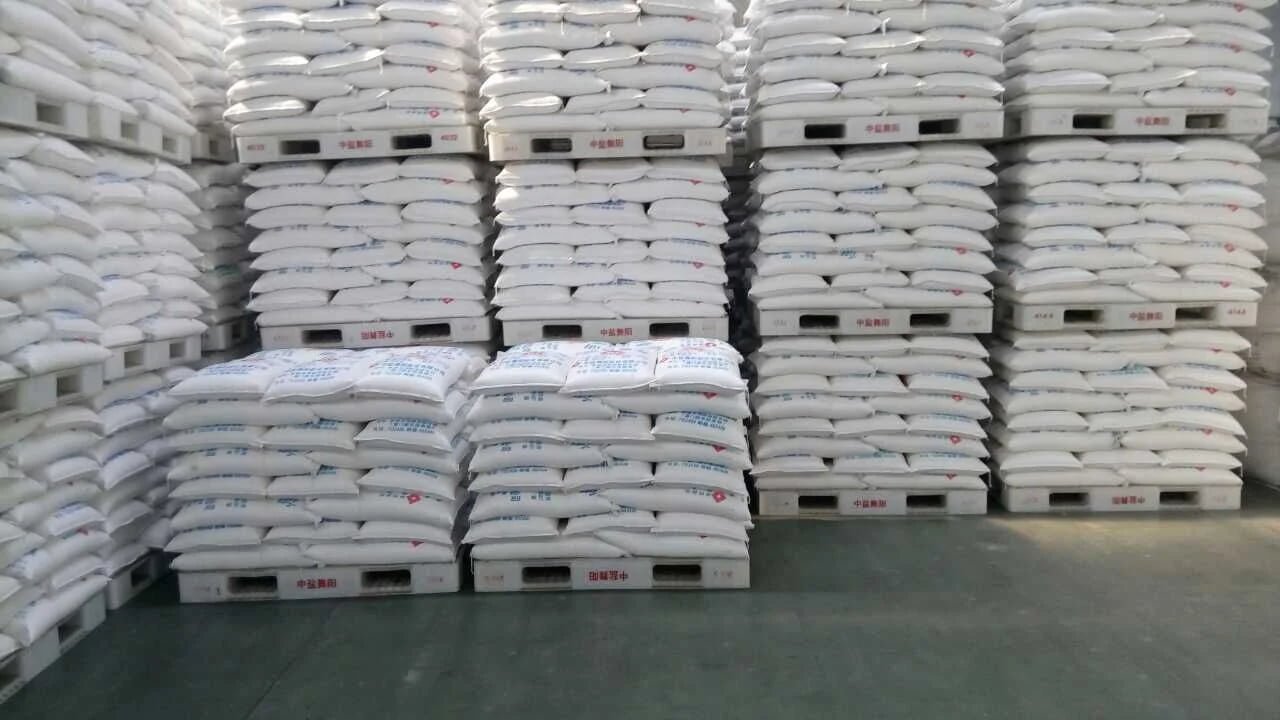

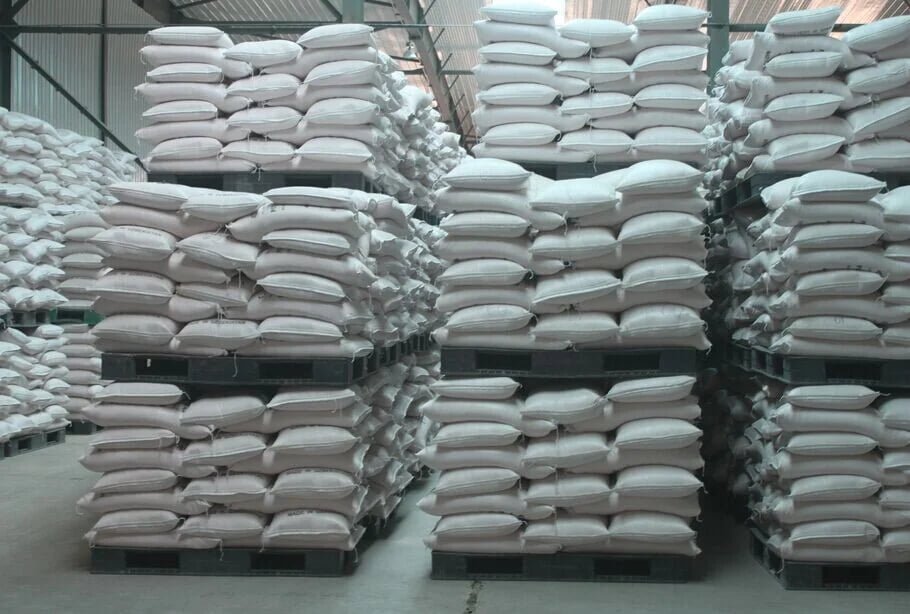

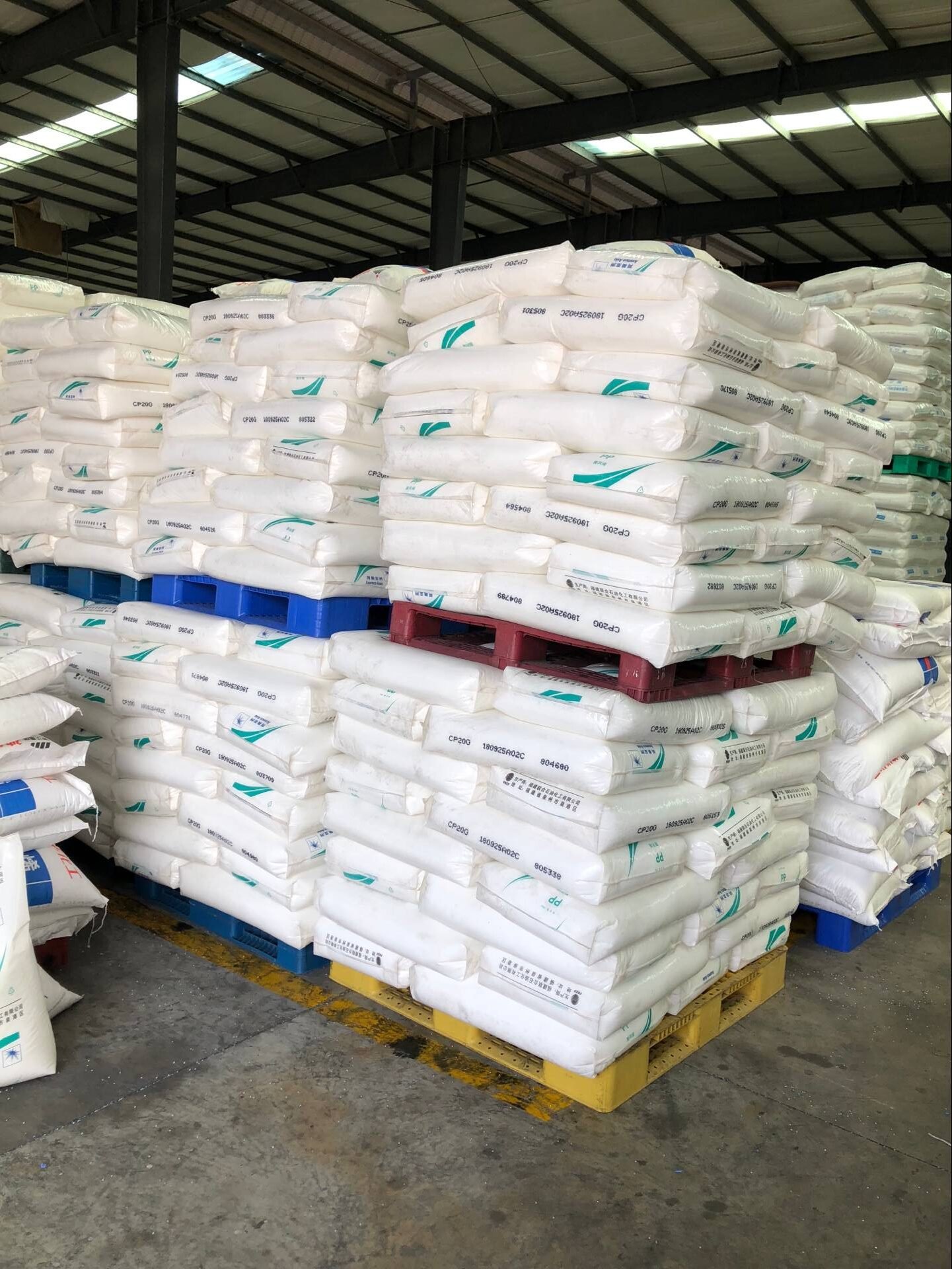

Floor and Block Stacking
The 6-runner picture-frame base provides twice the principal runner lines of a 3-runner base. Selected models carry up to 6,000 kg on a flat, rigid floor.
Beam Racks, AS/RS and Conveyors
Selected reinforced pallets publish 1,000–1,500 kg rack capacity. Specified automation builds can be controlled to ±2 mm for guides, sensors and repeat pickup.
Food and Cold Storage
Open decks aid drainage; solid decks support small packages continuously. Selected virgin-material models span -40°C to 70°C.
Chemicals, Bags and Large Loads
The 1300 × 1100 and 1400 × 1400 footprints provide 1.43 m² and 1.96 m² of deck area for drums, FIBC bags and wide components.
Export and Returnable Loops
Plastic pallets need 0 ISPM 15 wood treatment. Published model references run from 120–150 units per 20 ft container and 300–367 per 40HQ.
Choose the Footprint, Deck and Reinforcement Around Your Operation
We compare your load and handling route with our existing range before moving to a custom configuration.
Match Your Unit Load
Choose 1100 × 830, 1100 × 1100, 1200 × 800, 1200 × 1000, 1300 × 1100 or 1400 × 1400 mm. Open decks lower tare weight and aid drainage; solid decks provide continuous support.
Select Published Performance
Choose no steel or a model-specific 3, 4+, 8 or 12-tube package. The range reaches 2,000 kg dynamic, 6,000 kg static and 1,500 kg rack capacity.
Configure Identification
Options include HDPE or PP, standard or custom colors, molded or printed logos, anti-slip parts, RFID and barcodes. The modular platform offers 3,000+ combinations in about 20 mm increments.
Plan Repeat Orders
Standard MOQ is generally 300 units. Available samples can dispatch within 1 week, while standard full-container orders typically ship in 7–15 days after final specification and deposit.

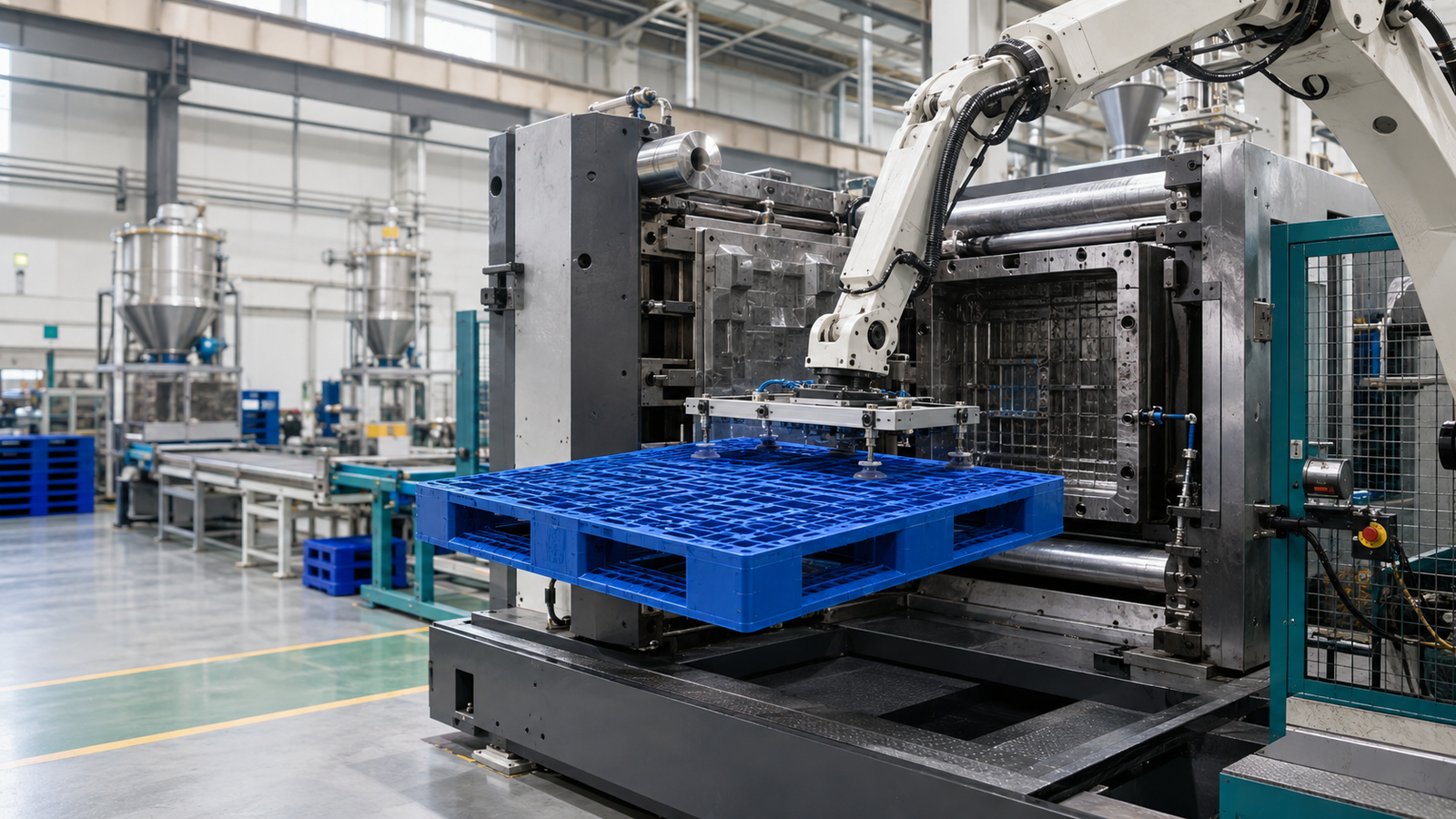

A Full Perimeter Plastic Pallet Manufacturer Built for Volume Supply
We have manufactured plastic material-handling products for more than 20 years. Our ISO 9001-managed process supports importers, distributors, manufacturers, 3PL operators and closed-loop pallet programs.
See a Full Perimeter Plastic Pallet in Operation
Watch the pallet structure, four-way fork-entry layout and material-handling sequence. Focus on the deck, bottom-runner contact and the way the pallet is supported while moving.
