Rackable Plastic Pallets for Beam Racking, Heavy Loads and Automated Warehouses
Preface Plast manufactures rackable plastic pallets for warehouse racking, high-bay storage, manufacturing, distribution and automated logistics. Our range includes heavy-duty racking plastic pallets, 3-runner and 3-skid designs, steel-reinforced pallets, Euro-size models and custom plastic pallets for racking.
Tell us your pallet size, unit load, rack type, clear beam span, orientation and handling equipment. We will compare your requirement with more than 600 existing pallet models before evaluating a custom solution.
What Makes a Plastic Pallet Rackable?
A rackable plastic pallet is designed to carry a specified unit load while spanning defined rack beams or support rails. Unlike floor-supported static loading, part of the pallet remains over an unsupported span, so bending stiffness and allowable deflection become critical.
Rackable plastic pallets are also searched as racking plastic pallets, plastic pallets for racking and warehouse racking plastic pallets. The term does not describe one fixed strength level: rack performance depends on base structure, beam spacing, orientation, load distribution, reinforcement, temperature and storage duration.
A pallet can be strong enough not to break and still bend too far to function safely in a beam rack, conveyor or high-bay automated system. For this reason, rack load must be evaluated separately from static and dynamic capacity.
Never Compare Rack Load Without the Support Condition
Ask for the clear beam span, support direction, pallet orientation, unit-load contact pattern, temperature, storage duration and allowable deflection. A single rack-load number without these conditions is incomplete.
Product Range at a Glance
Rackable Plastic Pallets by Size, Base and Load Requirement
Compare plastic rackable pallets by footprint, pallet weight, 3-runner structure, steel reinforcement, material and published static or dynamic capacity. Rack load is shown as application-specific because the supplied product data does not state a verified beam span or rack-load value.
1200 × 1000 Steel-Reinforced Rackable Plastic Pallet
A 1200 × 1000 heavy-duty rackable plastic pallet with reinforced steel tubes for beam racking, repeat-use warehouse handling and high-bay storage. Rack performance must be confirmed for the actual clear span, orientation and load pattern.
- Dimensions
- 1200 × 1000 × 180 mm
- Pallet Weight
- 19.8 kg
- Dynamic Load
- 1,500 kg
- Static Load
- 6,000 kg
- Rack Load
- Confirm by rack condition
- Material
- Confirm by model

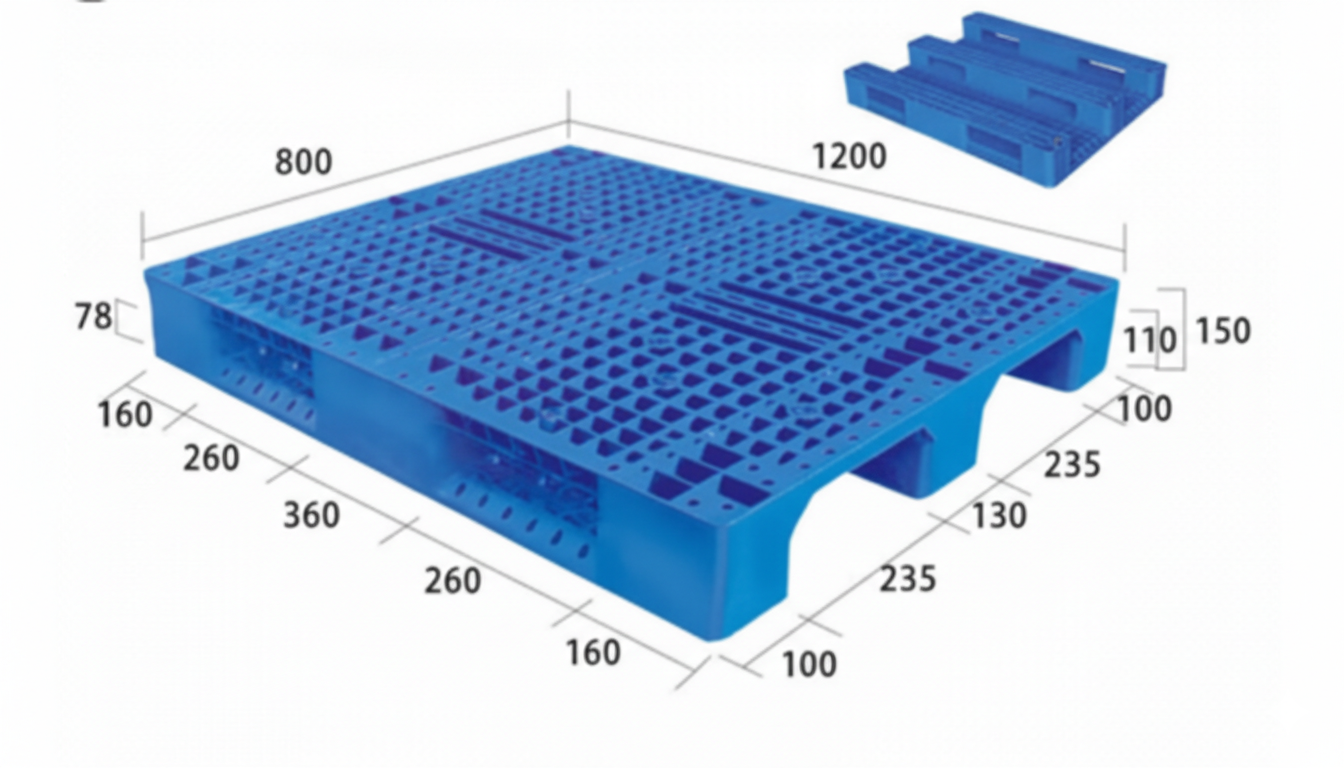

1200 × 800 Euro 3-Runner Open Deck Rackable Plastic Pallet
A Euro-size 1200 × 800 rackable plastic pallet with an open deck and 3-runner base for warehouse racking, repeat-use handling and compatible conveyor projects.
- Dimensions
- 1200 × 800 × 150 mm
- Pallet Weight
- 16.6 kg
- Dynamic Load
- 1,500 kg
- Static Load
- 6,000 kg
- Rack Load
- Confirm by rack condition
- Material
- Confirm by model
1200 × 1100 Heavy-Duty 3-Runner Rackable Plastic Pallet
A 1200 × 1100 three-runner rackable plastic pallet for manufacturing, beam racking and repeat-use warehouse cycles. The runner structure creates defined support paths, but beam spacing and rack direction still require verification.
- Dimensions
- 1200 × 1100 × 150 mm
- Pallet Weight
- 20.2 kg
- Dynamic Load
- 1,500 kg
- Static Load
- 6,000 kg
- Rack Load
- Confirm by rack condition
- Material
- Confirm by model
1200 × 1200 Large-Format Heavy-Duty Rackable Plastic Pallet
A large 1200 × 1200 rackable plastic pallet for heavier industrial unit loads, warehouse racking and repeated forklift handling. The 4-way entry supports flexible handling around storage and production areas.
- Dimensions
- 1200 × 1200 × 160 mm
- Pallet Weight
- 25.35 kg
- Dynamic Load
- 1,500 kg
- Static Load
- 6,000 kg
- Rack Load
- Confirm by rack condition
- Material
- Confirm by model

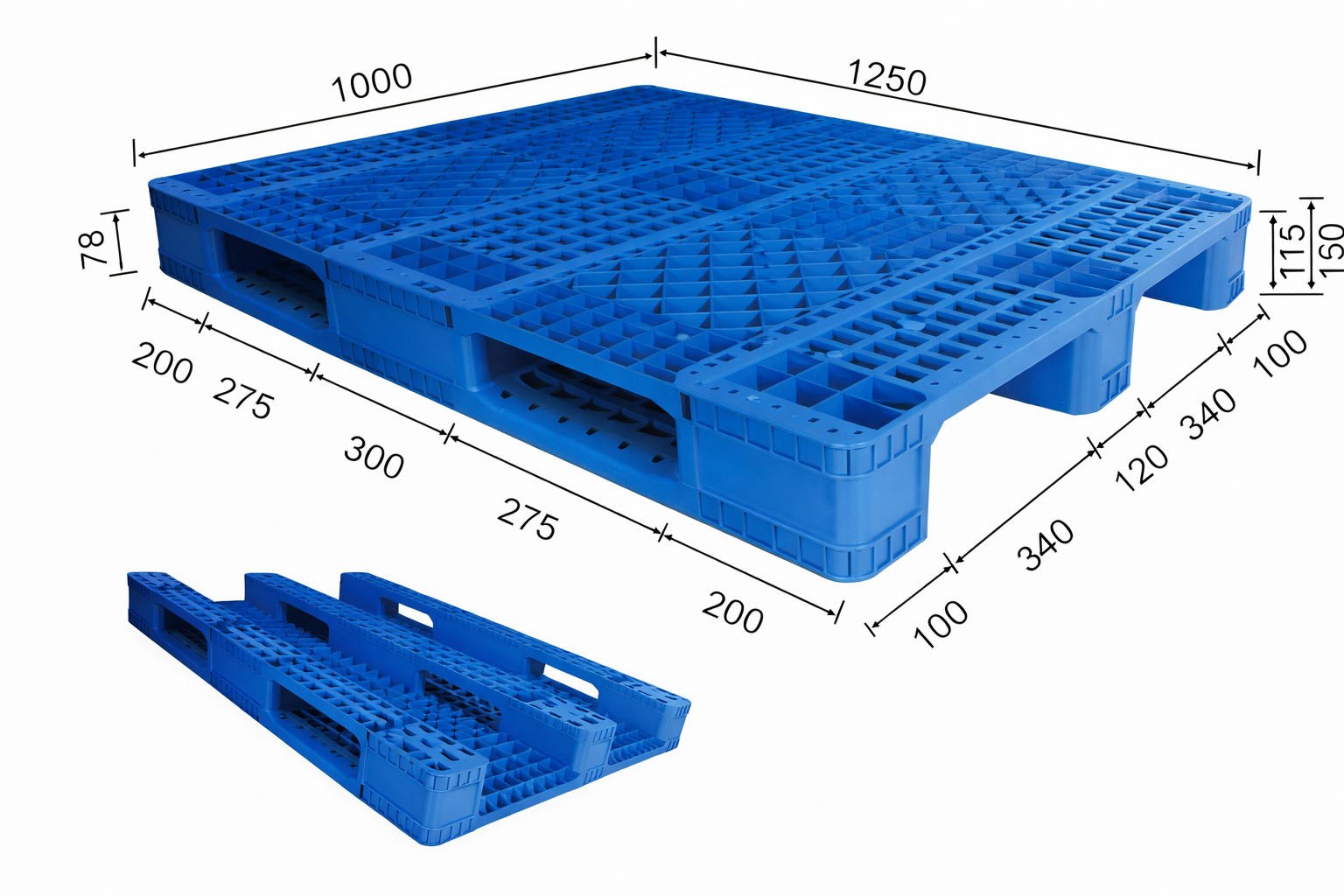

1250 × 1000 PP Steel-Reinforced Rackable Plastic Pallet
A 1250 × 1000 PP rackable plastic pallet with steel reinforcement for high-bay storage, beam racking and repeat-use warehouse lanes where additional stiffness is required.
- Dimensions
- 1250 × 1000 × 150 mm
- Pallet Weight
- 20.5 kg
- Dynamic Load
- 1,500 kg
- Static Load
- 6,000 kg
- Rack Load
- Confirm by rack condition
- Material
- PP

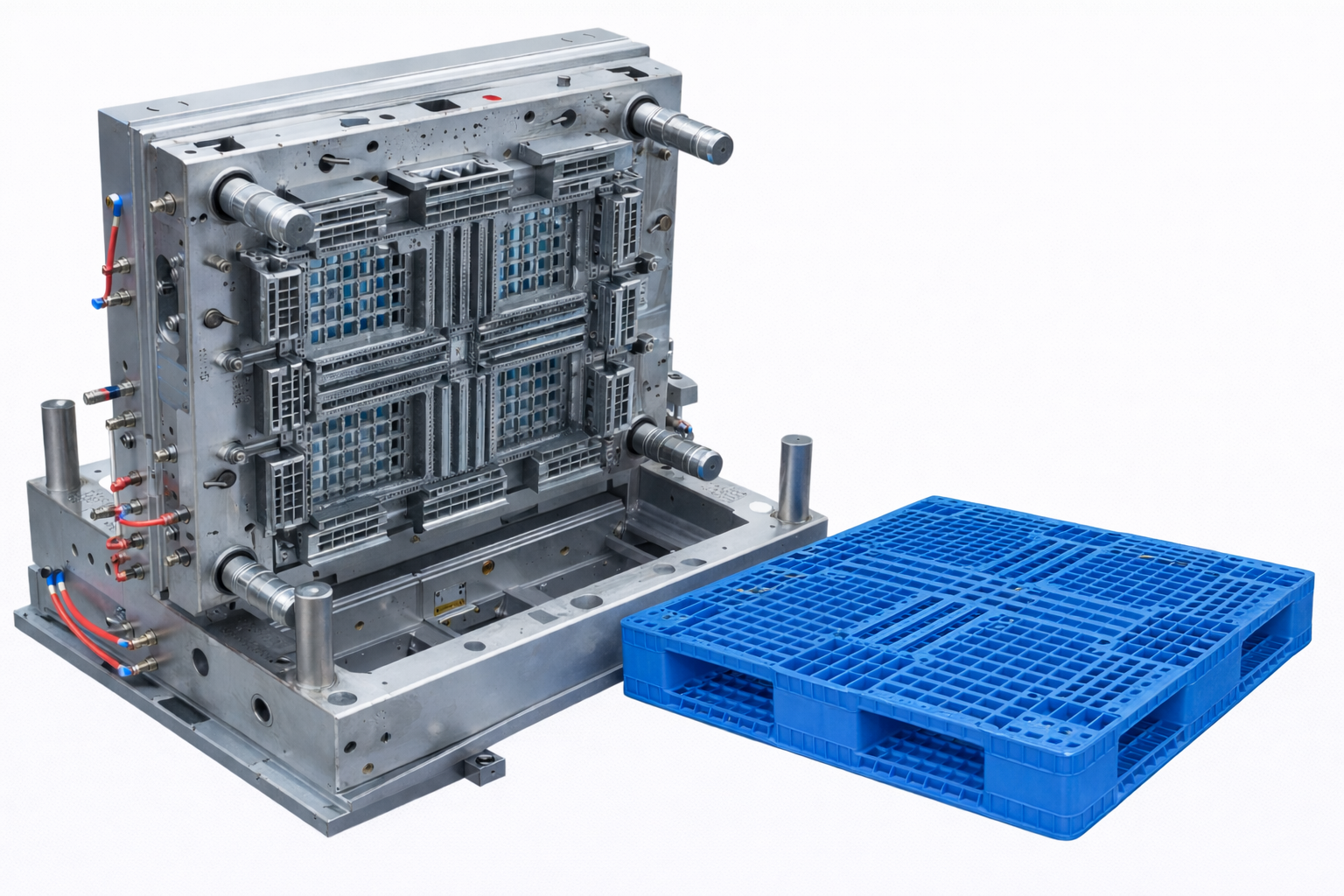

Custom Rackable Plastic Pallet for AS/RS and Special Racks
A custom rackable plastic pallet developed around your beam span, racking load, pallet orientation and handling route, with optional reinforcement, RFID, QR identification and AS/RS-compatible geometry.
- Dimensions
- Customized
- Pallet Weight
- Depends on structure
- Dynamic Load
- 1,000–2,000 kg
- Static Load
- 4,000–6,000 kg
- Rack Load
- Application-specific
- Material
- Project-specific
No Standard Model Matches Your Rack?
Send the clear beam span, support direction, pallet orientation, load contact points and equipment drawing. We will first check existing 3-runner, reinforced, Euro-size, open-deck and automation-ready options before evaluating custom tooling.
The Pallet Behaves Like a Beam Across the Rack
Only the defined support areas carry the pallet. The open distance between them is the unsupported span.
Match the Pallet to the Rack Support—not the Label
Rackable pallet selection is a system-matching decision. The base, load, support and equipment must work together.
Defined Support Paths
Continuous runners or connected base structures transfer load to the rack supports.
Clear Beam Span
A longer unsupported span generally increases bending and may reduce allowable rack capacity.
Pallet Orientation
The long and short directions can perform differently when spanning the rack beams.
Load Distribution
Uniform cartons, drums, bags and point-supported machines place different stresses on the deck.
Allowable Deflection
A pallet may remain unbroken yet bend too far for safe racking or automated handling.
Time and Temperature
Long-term creep and material stiffness change with storage duration and operating temperature.
Compare 10 Pallet Racking Systems Before Approving a Plastic Pallet
See how pallet rack beams, side rails, rollers and shuttle interfaces change support requirements. Review real Rackable, AS/RS and food-grade pallet selection, safety and testing cases before sending your RFQ.
3-Runner, Full-Perimeter and Double-Sided Bases
These market terms describe different load paths. Actual geometry and support points must be confirmed on the selected model.
3-Runner / 3-Skid Pallets
Three longitudinal runners create continuous support paths for compatible selective beam racks, conveyors and forklifts. Runner direction must match the rack support.
Full-Perimeter / Picture-Frame Pallets
A connected perimeter or 6-runner base provides broad bottom contact. Pallet-jack and rack compatibility must be checked because support rails and wheel paths vary.
Double-Sided Pallets
Upper and lower deck structures can provide broad support for heavy industrial loads. Reversible designs may not suit standard hand pallet trucks.
Open or Solid Deck
Open decks reduce weight and promote drainage; solid, closed and flat-top decks provide more continuous support for cartons, bags and small packages.
Find the Right Rackable Pallet for Your Rack System
Start with the rack, beam span, unit load and handling equipment—not static load alone.
Heavy-Duty Rackable Pallets
For repeated forklift handling, heavier unit loads and warehouse racking where pallet stiffness and deflection control are critical.
3-Runner / 3-Skid Pallets
Three longitudinal runners create defined support paths for compatible beam racks, conveyors and material-handling equipment.
Steel-Reinforced Pallets
Steel tubes can increase bending stiffness where the rack span, load, duration or allowable deflection requires additional support.
1200 × 800 Euro Rackable Pallets
Euro-size racking plastic pallets for European warehouse, distribution and repeat-use handling systems.
Plastic Pallets for Automation
Selected models can be evaluated for conveyors, AGVs, AS/RS, palletizers and high-bay automated storage.
48 × 40 & Custom Rack Projects
For North American 48 × 40 rackable plastic pallet projects or non-standard footprints, we check existing molds before new tooling.
Used where beam span, load or deflection limits justify additional stiffness.

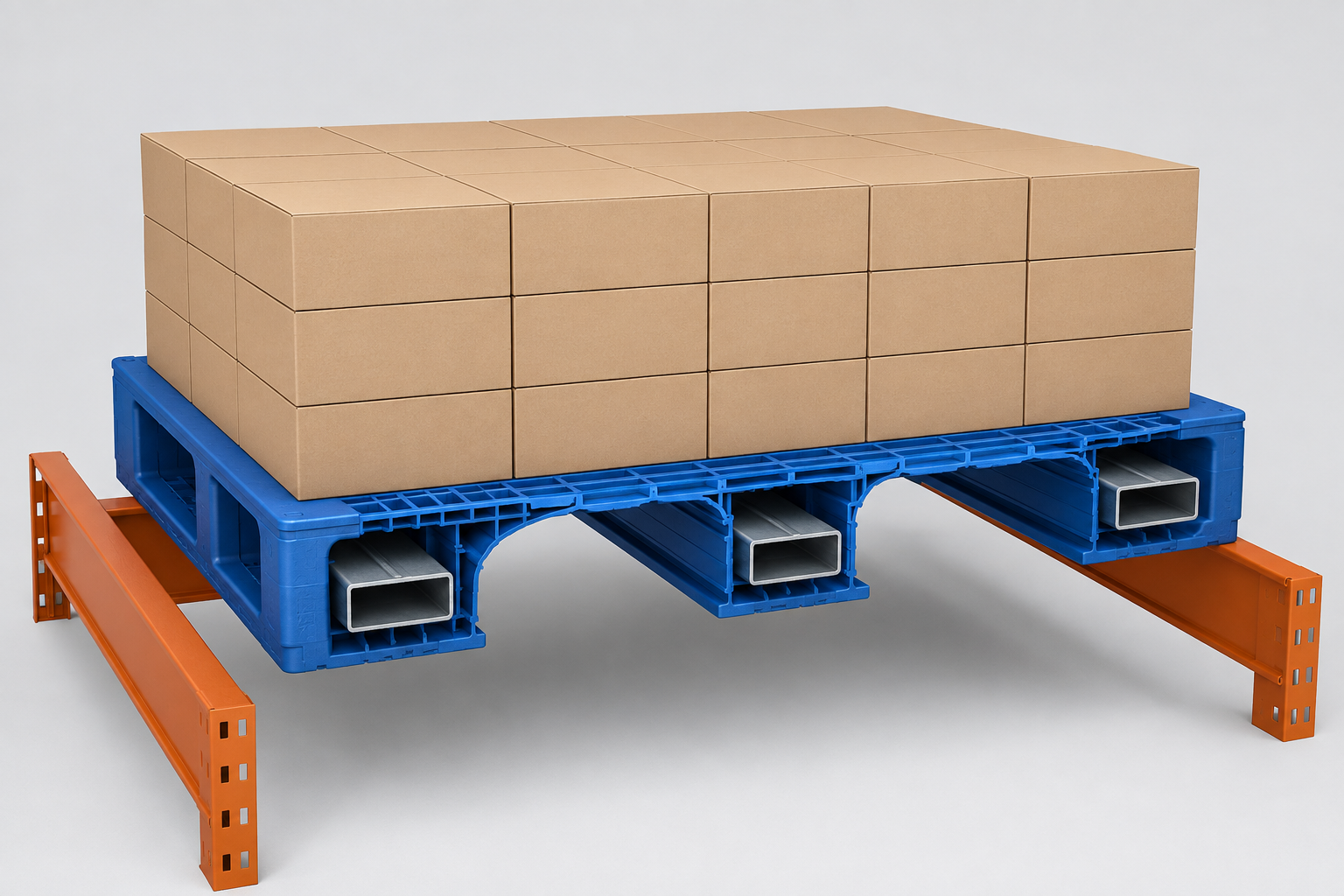

Steel-Reinforced Rackable Plastic Pallets for Lower Deflection
Steel tubes can increase bending stiffness across an unsupported span, but reinforcement should be selected around the actual rack and load condition—not added by default.
Reinforcement Direction
Steel bars must run in the direction that requires additional stiffness relative to the rack span.
Short-Term Deflection
Initial bending should remain within the operating limit defined for the rack or automation system.
Long-Term Creep
Plastic can continue to deform gradually under a sustained load even when the load does not increase.
Weight and Cost Trade-Off
Additional steel increases pallet weight, cost and recycling complexity, so the design should match the real requirement.
Rack Performance Is a Combination of Load, Span, Time and Temperature
Total weight and point-load distribution.
Clear distance between rack supports.
Hours, days or months under sustained load.
Material stiffness and creep change with temperature.
Rackable Plastic Pallets for Demanding Storage Systems
Industrial rackable plastic pallets are used where loads move repeatedly between floor handling, warehouse racks and automated storage.
Warehouse & Distribution
Warehouse racking plastic pallets support repeat beam-rack storage, forklift handling and high-density distribution operations.

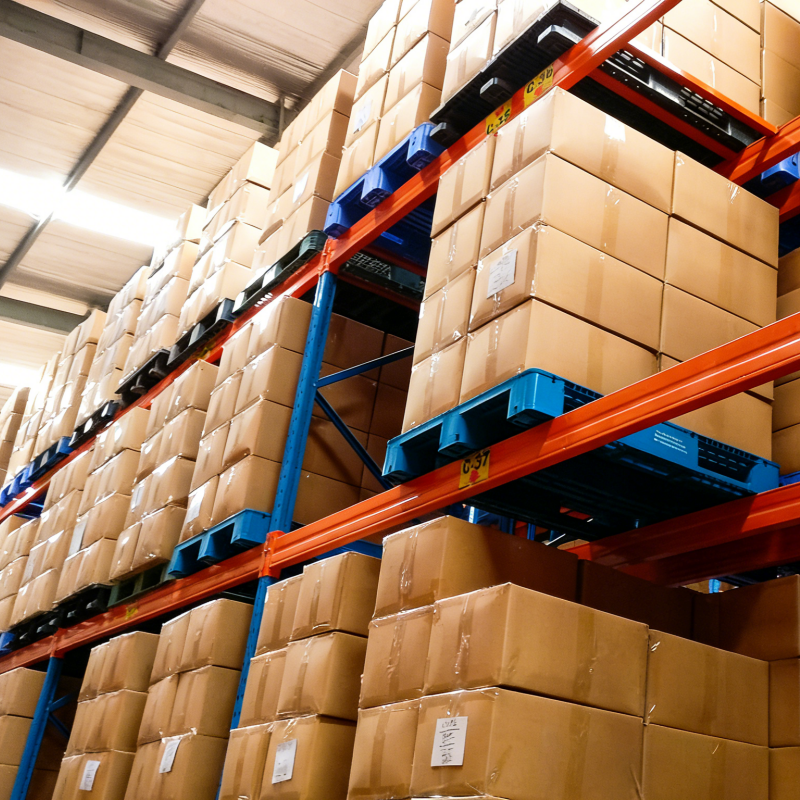

High-Bay & Automated Warehouses
AS/RS rackable plastic pallets require controlled dimensions, runner geometry and deflection for repeatable placement and retrieval.
Automotive & Closed Loop
Reusable rackable pallets support components and assemblies moving between suppliers, plants and storage systems.
Food & Beverage
Moisture-resistant plastic construction and model-specific solid or open decks can support cleanable food and beverage handling.
Pharmaceutical
Controlled materials, cleanability, traceability and sample-to-bulk consistency are important for pharmaceutical rackable pallet projects.
Cold Storage
Rackable plastic pallets for cold storage require model-specific review of material impact, stiffness, condensation and sustained rack load.
Chemicals, Drums & FIBC
Drums, jumbo bags and industrial materials require review of deck support, point loads, chemical exposure and unit-load stability.
3PL & Multi-Customer Logistics
Standard footprints, 4-way entry and repeat-use construction can support multi-client warehouse operations after rack compatibility is confirmed.
See Rackable Plastic Pallets for Automated Warehousing
This video introduces rackable plastic pallets developed for automated warehouse racking and demanding storage applications. Their stable structure supports repeated material handling while helping loads move efficiently through modern warehouse systems.
Rack capacity must be confirmed for the selected pallet model, reinforcement, unit-load distribution, beam spacing, orientation, operating temperature and storage duration.
Rack-Compatible Structure
Runner and full-perimeter base options provide stable support for compatible warehouse racking layouts.
Automated Warehouse Handling
Consistent pallet geometry supports integration with suitable conveyors, transfer stations and automated storage systems.
Reinforced Load Support
Reinforced configurations improve rigidity for demanding warehouse storage and repeated industrial handling.
Application-Specific Verification
Final rack performance is verified against the actual load, support span, temperature and storage conditions.
Rack Load Is Not the Same as Static or Dynamic Load
Pallet load ratings describe different support conditions and should never be treated as interchangeable.
Published on the listed standard models when the pallet rests on a flat, rigid floor with broad support beneath the base.
Published on the listed standard models while a suitable forklift or handling device lifts and moves the unit load.
Depends on beam spacing, support direction, pallet orientation, reinforcement, load distribution, temperature and duration.
Relates to vertical compression during loaded floor stacking and depends on the pallet, packaging and complete unit-load contact pattern.
Do Not Convert Static Load into Rack Load
A 6,000 kg static capacity does not mean the pallet can carry 6,000 kg across rack beams.
Edge Rack Capacity
Applies when the pallet is supported mainly at the outside beams, leaving a larger unsupported span between them.
Supported Rack Capacity
Applies where additional support is provided beneath the pallet, reducing the effective unsupported span.
Point Loads Behave Differently
A uniformly distributed 1,000 kg carton load is not equivalent to a 1,000 kg machine supported on four small feet. Provide the dimensions and positions of the load contact points for rackable pallet selection.
Rackable Pallets for Different Warehouse Racking Systems
Not every rackable pallet is suitable for every rack system. Support rails, runner contact, travel direction and allowable deflection require system-specific confirmation.
Selective Beam Racking
Plastic pallets for selective racking must bridge the open span between beams while keeping loaded deflection within the allowable range.
Drive-In Racking
Drive-in rackable pallets require runner positions and pallet orientation that match the support rails and forklift entry direction.
Push-Back, Flow & Shuttle Racks
Moving or rail-based systems place additional demands on the pallet base, contact surfaces and travel stability. Project drawings must be reviewed.
High-Bay and AS/RS Racking
High-bay rackable plastic pallets require controlled dimensions, flatness and deflection for repeatable automated placement and retrieval.
Rackable Plastic Pallets for AS/RS, Conveyors and AGVs
Plastic pallets for automation must provide more than rack strength. Dimensional repeatability, bottom contact geometry, fork openings, flatness and controlled deflection all affect system performance.
Dimensional Consistency
Length, width, height, fork openings and runner positions must remain consistent from sample to bulk production.
Bottom Contact Geometry
Runner positions must match conveyor rollers, chains, storage interfaces and automated pickup points.
Deflection Control
Excessive bending can interfere with transfers, sensors, palletizers and high-bay storage locations.
Fork and Sensor Interface
AGV fork width, pickup height, sensor targets, pallet orientation and load centering must be confirmed.
Explore AS/RS plastic pallets →Rackable Plastic Pallets in Common Industrial Configurations
The footprint, deck, base and material should be selected together with the rack and complete unit load.
1200 × 1000 Rackable Plastic Pallets
A common industrial footprint for manufacturing, distribution and warehouse racking projects.
1200 × 800 Euro Rackable Pallets
Euro-size plastic pallets for racking in European warehouse and repeat-use logistics systems.
1200 × 1100 Rackable Plastic Pallets
A larger industrial footprint with a listed 3-runner model for manufacturing and warehouse use.
1200 × 1200 Rackable Plastic Pallets
Square heavy-duty pallets for large unit loads and industrial storage systems.
1250 × 1000 PP Rackable Pallets
A PP and steel-reinforced option where a non-standard footprint and additional stiffness are required.
48 × 40 Rackable Plastic Pallet Projects
For North American 48 × 40 or GMA-size projects, send the rack, forklift and automation requirements so we can check existing or custom options.
Solid, Closed and Open Deck Options
Solid / Closed / Flat Top
Provides a more continuous support surface for cartons, flexible bags and small packages. Cleanability also depends on cavities, seams and drainage.
Open / Grid / Ventilated Deck
Reduces pallet weight and supports drainage or airflow where the goods have sufficient contact area.
Hygienic Rackable Pallets
Hygiene-sensitive projects require review of material, deck geometry, sealed areas, cleaning method and documentation—not only a solid top.
HDPE, PP, Virgin and Recycled Materials
HDPE Rackable Plastic Pallets
HDPE is commonly considered for impact resistance, moisture exposure and lower-temperature handling, subject to the model and resin grade.
PP Rackable Plastic Pallets
PP generally offers greater stiffness and is used in the listed 1250 × 1000 model. Low-temperature performance must be reviewed.
Virgin vs Recycled Material
Rackable and automated applications place high demands on batch consistency. Recycled material can be evaluated only where source control and performance are appropriate.
How to Choose the Right Rackable Plastic Pallet
Begin with the rack and complete unit load—not pallet size, static capacity or price alone.
Confirm the Pallet Footprint
Match the pallet to the product, rack, forklift, conveyor, truck, container and destination-market system.
Define the Complete Unit Load
Confirm the goods, packaging, total weight, load height, center of gravity and restraint.
Map the Load Contact Points
Uniform cartons, drum rings, FIBC bags and machine feet apply force differently to the pallet deck.
Identify the Rack Type
Selective, drive-in, push-back, flow, shuttle and AS/RS systems support pallets differently.
Measure the Clear Beam Span
The unsupported distance between rack supports directly affects bending and rack capacity.
Confirm Pallet Orientation
State whether the long side or short side spans the beams and whether additional support is present.
List Every Handling System
Include forklifts, pallet trucks, conveyors, AGVs, AS/RS and palletizers.
Define Temperature and Duration
Temperature affects stiffness, while sustained storage increases the importance of creep and long-term deflection.
Select Material and Reinforcement
Choose the deck, base, material and steel-bar direction around the verified operating condition.
Send the Rack Drawing Before Bulk Production
A rack drawing, beam span and load-contact image allow the pallet structure to be evaluated before a sample or full-container order.
Rackable, Stackable or Nestable: Which Plastic Pallet Do You Need?
These terms describe different capabilities. One pallet may combine more than one function, but each function requires separate verification.

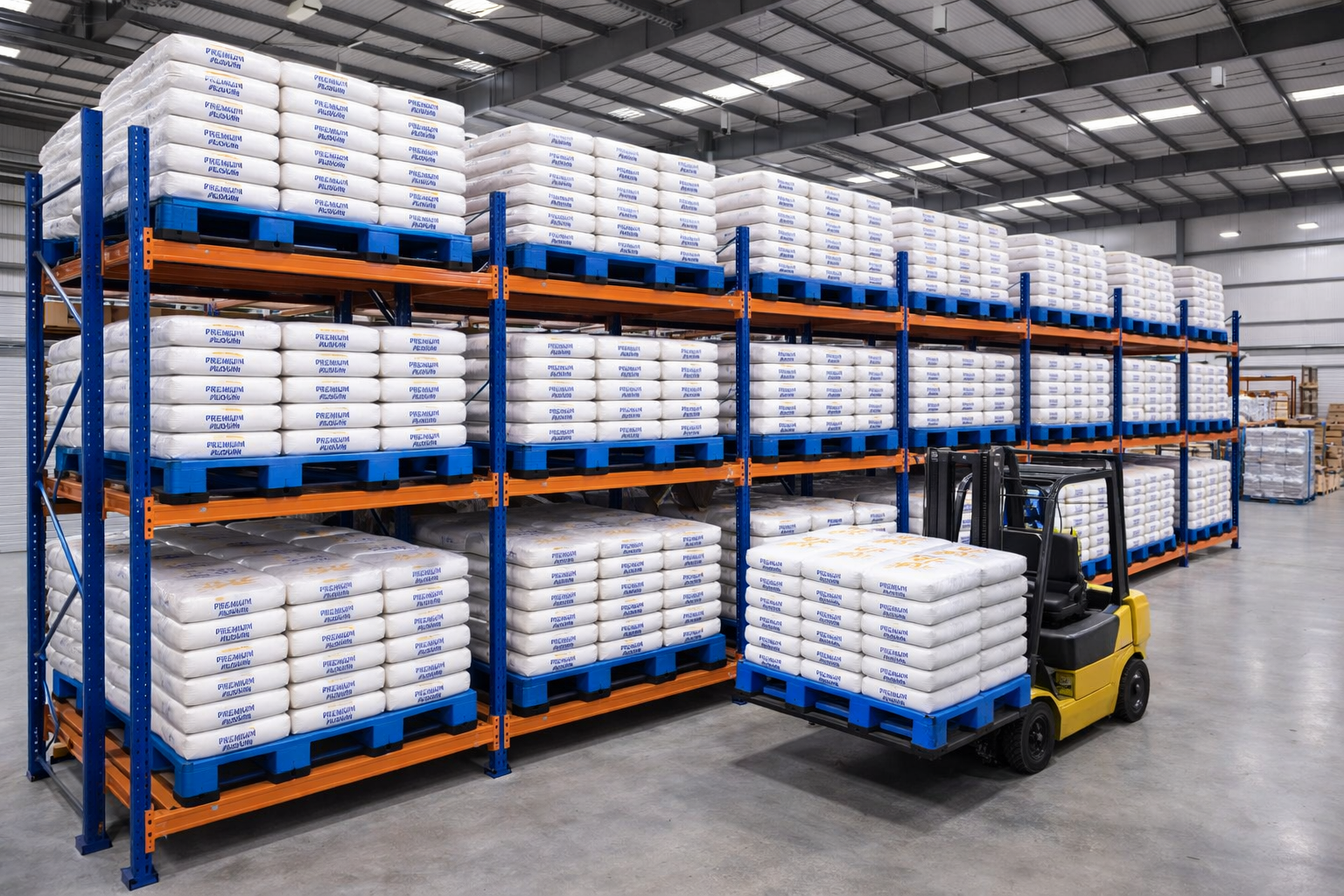

Rackable Plastic Pallets
Best for defined rack supports and unsupported spans
Designed to carry a verified load across specified rack beams or rails with acceptable strength and deflection.
Compare rackable pallets →Stackable Plastic Pallets
Best for loaded floor and block stacking
Runner, perimeter or double-sided bases support compatible loaded units placed directly on a flat floor.
Explore stackable pallets →Nestable Plastic Pallets
Best for saving empty return space
Feet or pods nest into the pallet below when empty, reducing storage and return transport volume.
Explore nestable pallets →Related Plastic Pallet Ranges
Continue product selection by load, hygiene or automation requirement.
Consistent Dimensions from Sample to Bulk Production
For rackable and automated pallet projects, batch consistency is as important as the first approved sample.
Raw-Material Control
Material identity and formulation are managed according to the agreed pallet specification and application.
Controlled Injection Molding
Temperature, pressure, filling and cooling affect pallet weight, shrinkage, flatness and stiffness.
Dimensional Inspection
Overall dimensions, fork openings and runner positions are checked; specified models are controlled to ±2 mm.
Weight and Flatness Checks
Unit weight and warpage provide practical indicators of molding and batch consistency.
Steel-Reinforcement Inspection
Steel-tube quantity, direction, position and installation are checked against the approved configuration.
Pre-Shipment Verification
Model, quantity, identification, packaging and key specification points are confirmed before shipment.
Custom Rackable Plastic Pallets Built Around the Rack
We first compare the project with more than 600 existing pallet models. When no standard option matches the footprint, beam span, runner layout or automation interface, Preface Plast can evaluate custom tooling.
A custom rackable pallet should be developed around the complete unit load and storage system—not a requested load number alone.
Explore custom plastic pallet services →Dimensions & Footprint
Standard sizes, 48 × 40 project evaluation or custom tooling for new length, width, height and fork openings.
Runner & Base Layout
3-runner, full-perimeter, picture-frame or project-specific contact geometry according to the rack supports.
Steel Reinforcement
Number, direction and position of steel tubes selected around span, load, duration and deflection limits.
Deck & Material
Open, solid or application-specific decks with HDPE, PP or another approved material option.
Automation Interface
Conveyor contact points, AGV pickup geometry, AS/RS tolerances, flatness and sensor requirements.
Color, Logo & Tracking
Custom colors, molded identification, serial numbers, QR codes and RFID pockets for asset control.
A China Rackable Plastic Pallet Manufacturer for Bulk and OEM Supply
Founded in 2000, Preface Plast supplies wholesale rackable plastic pallets to importers, distributors, manufacturers, 3PL providers and logistics integrators. We support product selection, samples, container orders and repeat procurement.
Employees
Manufacturing, engineering, quality, warehouse and commercial support.
Manufacturing Base
Production, mold, inspection, warehousing and order-handling capacity.
Production Lines
Support for multiple pallet structures, materials and purchasing volumes.
Injection Molds
A broad mold base for matching existing products before new-tool investment.
Pallet Models
Multiple footprints, decks, bases, weights and handling configurations.
Pallets in Stock
Standing inventory across selected products; availability is confirmed by model and color.
May vary by model, material, color, stock and customization.
Subject to model availability, freight and destination requirements.
After 50% deposit and final specification confirmation.
For qualifying products under agreed rack, load and use conditions.
How Much Do Rackable Plastic Pallets Cost?
Rackable plastic pallet prices depend on footprint, unit weight, material, 3-runner or perimeter structure, steel reinforcement, rack-load requirement, anti-slip parts, color, logo, RFID, quantity and container loading.
20GP and 40HQ Container Loading
Container quantity depends on pallet footprint, pallet height, base structure and empty stacking arrangement. Send the selected model and destination for 20GP or 40HQ loading quantity and freight allocation.
A lower FOB price can still create a higher landed cost if the pallet loads inefficiently in the container.
Rackable Plastic Pallet FAQs
Answers to common questions about rack load, beam spacing, 3-runner bases, steel reinforcement, deflection, automation, price, MOQ and delivery.
What makes a plastic pallet rackable?
Is static load the same as rack load?
What is edge rack capacity?
What is supported rack capacity?
How does beam spacing affect rack load?
Does pallet orientation matter in a rack?
What is the difference between a 3-runner and full-perimeter rackable pallet?
Do steel bars increase rack capacity?
Why do plastic pallets sag in racks?
How much deflection is acceptable?
Can rackable plastic pallets also be stacked?
Can rackable pallets work with hand pallet trucks?
Can rackable pallets work with conveyors, AGVs and AS/RS?
What rackable plastic pallet sizes are available?
Do you offer 48 × 40 rackable plastic pallets?
Are solid-top rackable plastic pallets available?
Should I choose HDPE or PP?
Can rackable plastic pallets be used in cold storage?
Can I test a sample before bulk production?
What is the MOQ for wholesale rackable plastic pallets?
How much do rackable plastic pallets cost?
How quickly can a standard order ship?
How many rackable plastic pallets fit in a 40HQ container?
Can you manufacture a custom rackable plastic pallet?
What information is required for a quotation?
Tell Us About Your Rack, Beam Span and Unit Load
Share the pallet size, rack type, clear beam span, unit load, orientation and handling equipment. We will compare the project with existing rackable plastic pallet models or evaluate a custom solution.
Choose the Rackable Pallet Around the Support Condition
The right rackable plastic pallet is determined by beam spacing, edge or supported rack condition, pallet orientation, 3-runner or perimeter structure, load distribution, steel reinforcement, temperature, storage duration and handling equipment—not static capacity alone.
Preface Plast is a rackable plastic pallet manufacturer and supplier in China with 600+ pallet models, 700+ injection molds and 60 production lines. The current range includes 1200 × 800, 1200 × 1000, 1200 × 1100, 1200 × 1200 and 1250 × 1000 racking plastic pallets, plus custom AS/RS, RFID, 48 × 40 and wholesale OEM project support.
