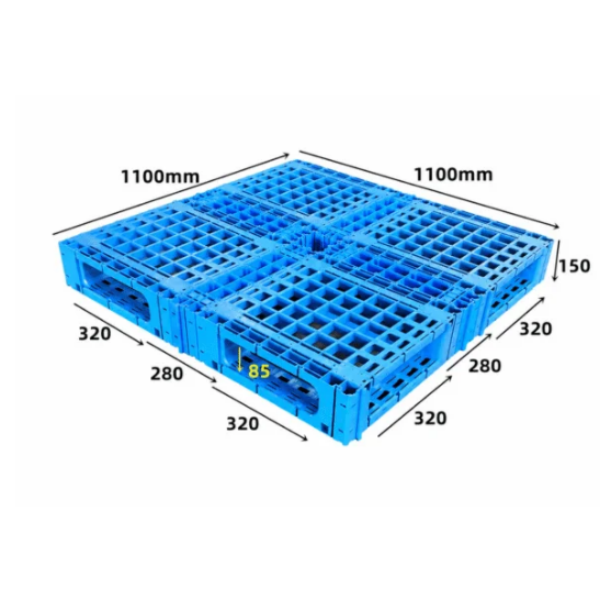

1100 × 1100 mm Modular Plastic Pallet

Basic Product Specifications

Main Features of Your 1100 × 1100 mm Modular Plastic Pallet

More Than 3,000 Size Combinations

You can change the length and width in approximately 20 mm increments and select from more than 3,000 combinations. You can match your cargo without investing in 1 complete custom pallet mold.

Replace Only 1 Damaged Module

You replace only the damaged module instead of discarding 1 complete pallet. You keep the remaining modules in service and reduce your maintenance cost and downtime.

Oversized Pallets Above 4 m

You can extend the pallet to more than 4 m in length or width. You can support pipes, panels, doors, machinery, and other cargo that does not fit a 1100 × 1100 mm pallet.

Four-, Six-, or Nine-Module Structures

You can choose a 4-, 6-, or 9-module structure for different dimensions and loads. You can pack eligible modules separately or nest them to reduce unused transport and storage space.

Load Capacity up to 6,000 kg

You can handle up to 6,000 kg static, 2,000 kg dynamic, or 1,000 kg in racking with the correct configuration. You can add 4 or more internal steel tubes when you need higher rigidity.

A 90°C Operating Temperature Span

You can operate the modified PP pallet from approximately -30°C to 60°C, covering a 90°C temperature span. You get stable performance for warehouses, outdoor circulation, and many cold-chain applications.

Drop Testing from up to 3 m

You can request configurations evaluated through corner-drop testing from heights up to 3 m. You also benefit from vehicle-wheel compression testing used to check joint stability and deck deformation.

Four-Way Forklift Entry

You can access the pallet from all 4 sides with a forklift and configure it for compatible pallet trucks. You reduce turning time in narrow aisles and load from different directions more efficiently.

Six-Wheel Mobile Trolley Option

You can add 6 swivel casters and 1 push-pull handle to create a mobile material trolley. You can move small batches without assigning a forklift to every transfer.

Four-Side Protective Rail Option

You can install protective rails around all 4 sides to create an open load carrier. You keep unstable goods contained and protect the pallet edges during handling.

Stack up to 5 Loaded Pallets

You can stack up to 5 loaded pallets when your load and site conditions are approved. You use more vertical warehouse space without increasing the pallet footprint.

No Exposed Metal Fasteners at the Joints

You get reinforced PP module connectors with 0 exposed metal fasteners at the panel joints. You protect your products and operators from sharp burrs while keeping the PP components recyclable.

Applications of Your 1100 × 1100 mm Modular Plastic Pallet

Warehouse Storage and Distribution

You can use the pallet for floor stacking, warehouse racking, order staging, distribution, and inventory circulation. You can use its 4-way entry to reduce forklift positioning time in busy handling areas.

Manufacturing and Production Circulation

You can move automotive parts, electronics, machinery, appliances, packaging materials, and work-in-process products. You can add 6 swivel casters and 1 handle when you need a mobile production trolley.

Export and Long-Distance Transportation

You can use the moisture-resistant and corrosion-free PP structure for export and long-distance shipping. You can choose a 4-, 6-, or 9-module design and pack eligible modules separately to reduce unused freight space.

Food, Beverage, and Pharmaceutical Operations

You can wash the non-absorbent plastic surface and reduce moisture, mold, odor, and corrosion concerns. You should confirm your industry hygiene requirements before selecting the final material and structure.

Cold-Chain Logistics

You can operate the pallet from approximately -30°C to 60°C after confirming your load and handling conditions. You can use it in cold storage, frozen food circulation, and other temperature-controlled supply chains.

Oversized and Irregular Cargo

You can create a pallet over 4 m long or wide for pipes, doors, panels, furniture, and industrial equipment. You can adjust the footprint in approximately 20 mm increments to support your actual cargo dimensions.

Your Customization Options

You can customize the pallet length and width in approximately 20 mm increments and select from more than 3,000 size combinations. You can choose a 4-, 6-, or 9-module structure, a standard or oversized footprint above 4 m, and 4 or more reinforcing steel tubes. You can also add 4-side protective rails, 6 swivel casters with 1 push-pull handle, custom colors, your logo, identification marks, cartons, stretch film, or project-specific export packaging.

You only need to provide your required dimensions, cargo weight, load distribution, rack span, handling equipment, operating temperature, and order quantity. You will then receive a recommended module layout, reinforcement plan, and accessory configuration.

FAQs

Can You Replace Only the Damaged Section?

Yes. You can remove 1 damaged module and keep the remaining modules in service. You can also keep spare modules on site to shorten your maintenance time.

Can You Order a Size Other Than 1100 × 1100 mm?

Yes. You can adjust the footprint in approximately 20 mm increments, choose from more than 3,000 combinations, or request a pallet over 4 m long or wide.

Do You Need a Complete New Mold for a Special Size?

In most cases, you do not need 1 complete new pallet mold. You can combine existing modules or replace only the required module mold, subject to your final dimensions and structure.

Can You Use the Pallet in Warehouse Racks?

Yes. You can reach a rack load of up to 1,000 kg with the approved reinforcement and rack configuration. You must confirm your rack span, support direction, load distribution, and safety factor before use.

Can You Use Forklifts and Pallet Trucks?

You get 4-way forklift entry and can request compatible pallet-truck access. You should provide your fork width, fork height, and handling direction before production.

Can You Reduce Freight Volume?

You can choose 4-, 6-, or 9-module designs and pack eligible modules separately or in nested groups. Your actual space saving depends on your pallet size, structure, quantity, and packaging method.

Can You Order a Sample?

Yes. You can order a sample to check the material, structure, dimensions, and handling fit before bulk production. Your sample and freight charges depend on your configuration and destination.

What Is Your Minimum Order Quantity?

You can typically order from 200–500 pieces, depending on your dimensions, reinforcement, color, logo, accessories, and packaging. You will receive your confirmed MOQ with your project quotation.

Get Your Modular Pallet Configuration

You can send your required dimensions, cargo weight, handling method, rack conditions, and quantity. You will receive a modular pallet proposal matched to your warehouse or logistics application.
