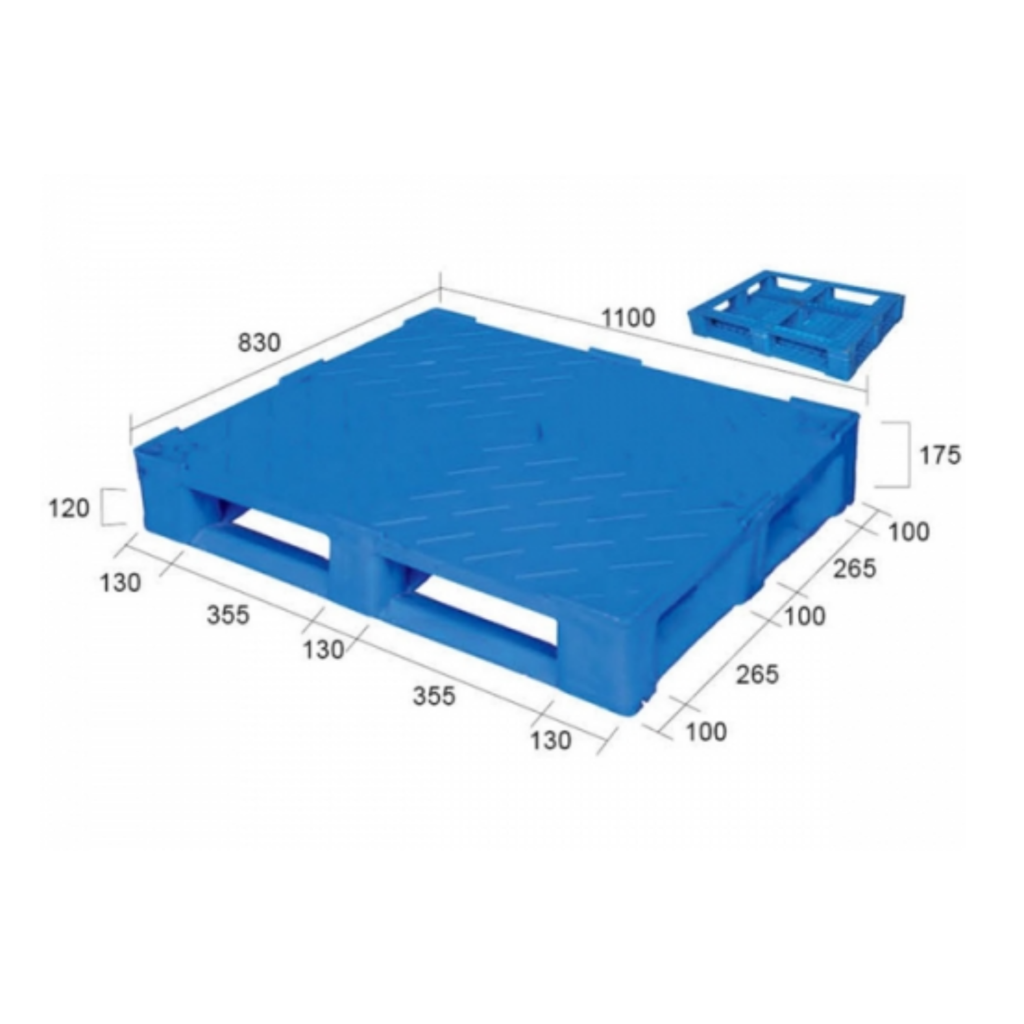

1100 x 830 Full Perimeter Solid Deck Plastic Pallet

Basic Product Specifications

Main Features of 1100 x 830 Full Perimeter Solid Deck Plastic Pallet

1. Compact 1100 × 830 mm Industrial Footprint

The 1100 × 830 mm footprint is designed for unit loads, returnable packaging, and industrial components that do not fit efficiently on conventional 1100 × 1100 mm or 1200 × 1000 mm pallets. Its narrower 830 mm width helps reduce unnecessary deck overhang when matching specialized containers or product packaging. Before ordering, customers can provide their cargo dimensions and handling layout to confirm pallet fit.

2. Solid Anti-slip Deck for Stable Product Support

The closed top deck provides continuous support for cartons, containers, small components, and other goods that may not sit securely on an open-grid pallet. An anti-slip surface and raised perimeter edge help limit cargo movement during forklift acceleration, braking, and warehouse handling. The solid surface also prevents small items from falling through the deck and is easier to wash than pallets with complex open-grid surfaces.

3. Two Load Configurations for Different Operating Requirements

This pallet can be supplied with or without internal steel reinforcement. The standard 13.1 kg version supports a 1,000 kg dynamic load and a 4,000 kg static load. Adding three steel bars increases dynamic capacity by 50%, from 1,000 to 1,500 kg, and static capacity by 50%, from 4,000 to 6,000 kg. The reinforced version also provides a rated racking capacity of up to 1,000 kg under specified support conditions.

4. Welded Full-perimeter Base Improves Stacking Stability

The six-runner full-perimeter base forms a connected support frame instead of relying on separate pallet feet. Compared with a nine-leg pallet, this structure distributes stacking pressure across a larger bottom area and provides more stable contact with the load below. The welded construction connects the solid deck and perimeter base into an integrated pallet suitable for warehouse stacking, industrial circulation, and heavy-load storage.

5. High Load Capacity Relative to Pallet Weight

With three steel bars installed, the pallet weighs approximately 15.6 kg while carrying up to 1,500 kg dynamically—about 96 times its own weight. Its 6,000 kg static rating is approximately 385 times the reinforced pallet weight. This load-to-weight performance helps customers handle heavy industrial unit loads without using an excessively heavy pallet, reducing manual handling weight and return logistics load.

Applications of 1100 x 830 Full Perimeter Solid Deck Plastic Pallet

Industrial Manufacturing

The pallet is suitable for transporting components, returnable containers, packaged raw materials, and finished products between production lines, warehouses, and distribution facilities. Its non-standard footprint is especially useful when the product or container system is already designed around an 1100 × 830 mm base.

Steel, Tire and Automotive Supply Chains

The solid deck, reinforced structure, and compact dimensions can support industrial components used in steel processing, tire manufacturing, and automotive production. For steel coils or other concentrated loads, the weight distribution, contact area, securing method, and support points should be verified separately rather than relying only on uniformly distributed load ratings.

Warehouse Rack Storage

The version with three internal steel bars can support up to 1,000 kg in compatible rack systems. Customers should confirm the rack beam spacing, pallet orientation, load distribution, storage duration, and operating temperature before use. The non-reinforced version should not be described as rackable unless separately tested.

Closed-loop Logistics

Its reusable construction makes this pallet suitable for repeated transport between factories, suppliers, warehouses, and distribution centers. The optional reinforced configuration allows customers to use the same pallet for transportation, floor stacking, and qualified rack storage, reducing unnecessary pallet transfers.

Conveyor and Automated Handling

The continuous full-perimeter base provides a larger contact area than a nine-leg pallet when moving across compatible conveyor systems. Before use on rollers, chains, AGVs, or ASRS equipment, customers should confirm the runner direction, conveyor spacing, sensor position, pallet deflection, and required positioning tolerance.

Export Transportation

As a plastic pallet, this model does not require the ISPM 15 heat treatment or fumigation applied to solid-wood packaging. The solid deck also protects smaller products from direct contact with the floor during export handling. Actual container quantities depend on the loading method and final packaging configuration.

Customization Options

Preface Pallet provides product configuration options according to different load and handling requirements.

Available customization includes:

• HDPE or PP material selection
• Standard or three-steel-bar reinforced configuration
• Custom pallet colors
• Logo and identification printing
• Barcode or RFID identification
• Anti-slip surface options
• Custom packaging and stretch-film protection
• Alternative pallet dimensions for matching special unit loads

Customers should provide the cargo weight, load distribution, rack dimensions, forklift type, pallet jack wheel size, and operating temperature when requesting a recommended configuration.

FAQs

1. What do the 1,500 kg, 6,000 kg and 1,000 kg capacities mean?

With three steel bars installed, the pallet has a 1,500 kg dynamic capacity, a 6,000 kg static capacity, and a 1,000 kg racking capacity. Dynamic capacity applies during forklift handling, static capacity applies when the pallet rests on a flat floor, and racking capacity applies under specified rack support conditions. These figures should not be used interchangeably.

2. Can this 1100 x 830 plastic pallet be used on warehouse racks?

Yes, the steel-reinforced version is rated for up to 1,000 kg in compatible racking systems. Rack use depends on beam spacing, support direction, load distribution, temperature, and storage duration. Provide your rack dimensions and unit-load information so the configuration can be checked before ordering.

3. Why choose an 1100 x 830 mm pallet?

The 1100 × 830 mm size is intended for specialized unit loads that do not require the wider deck area of common 1100 × 1100 mm or 1200 × 1000 mm pallets. It can provide a closer match for custom containers, industrial components, and existing returnable packaging systems, reducing unnecessary pallet overhang.

4. Can forklifts and pallet jacks enter from all four sides?

Yes. This model provides four-way entry for forklifts and pallet jacks. However, pallet jack fork width, wheel diameter, lowered fork height, and load-wheel position should be checked against the pallet entry dimensions before bulk purchase.

5. How many pallets can be loaded into a shipping container?

The reference loading quantity is approximately 130 pallets in a 20FT container and 300 pallets in a 40HC container. Final quantities may change according to pallet packaging, loading method, container specifications, and any additional protective materials.

6. Can I order this pallet without steel bars?

Yes. The standard version without steel reinforcement weighs 13.1 kg and supports a 1,000 kg dynamic load and a 4,000 kg static load. The steel-reinforced version is recommended when higher dynamic capacity or rack storage is required.

7. Can I request a sample before placing a bulk order?

Yes. A sample can be arranged for structure, dimensions, material, and equipment compatibility checks. The buyer normally covers the sample freight. For rack or automated handling projects, testing the pallet under the actual unit load and operating conditions is recommended before bulk purchasing.
