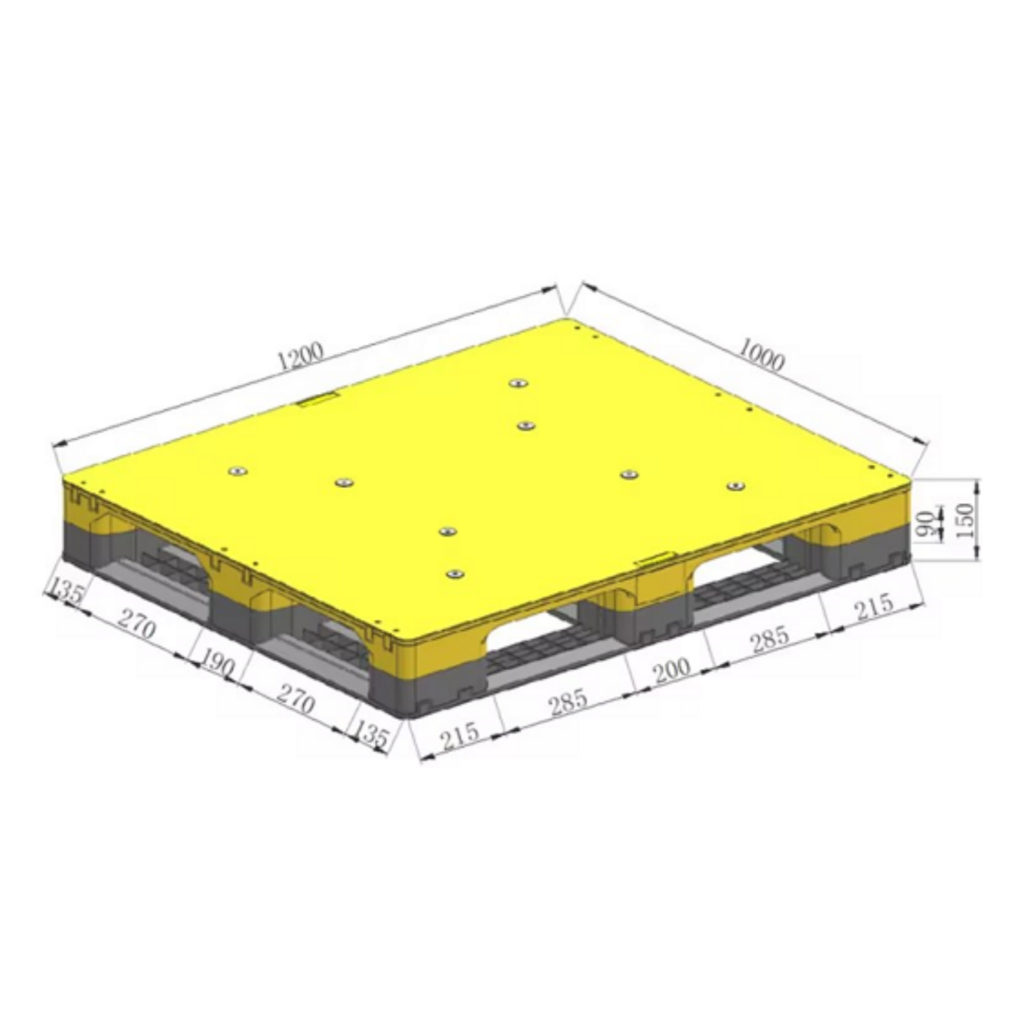

Basic Product Specifications
| Specification | Product Data |
|---|---|
| Materials | HDPE or PP |
| Dimensions (L×W) | 1200 × 1000 mm |
| Process | Injection Molding and Welding |
| Plastic Weight | 20.5 kg |
| Reinforcement Bars | 12 Steel Bars |
| Steel Bar Layout | 6 in the Deck + 6 in the Base |
| Steel Reinforcement Weight | 9.25 kg |
| Reinforced Pallet Weight | Approximately 29.75 kg |
| Base | Full Perimeter / Picture Frame |
| Top Deck | Solid Deck |
| Forklift | 4-Way Entry |
| Rackable | Yes, with Steel Reinforcement |
| Stackable | Yes |
| Reusable | Yes |
| Standard Color | Yellow |
| Logo / Printing | Available |
| Dynamic Capacity Without Steel Bars | 1,000 kg |
| Static Capacity Without Steel Bars | 4,000 kg |
| Dynamic Capacity with Steel Bars | 1,500 kg |
| Static Capacity with Steel Bars | 6,000 kg |
| Racking Capacity with Steel Bars | 1,000 kg |
| 20FT Container Quantity | Approximately 150 Pieces |
| 40HC Container Quantity | Approximately 367 Pieces |
Main Features of 1200 x 1000 Yellow Picture Frame Design Plastic Pallet
1. Yellow Deck Supports Visual Warehouse Management
The high-visibility yellow deck makes the pallet easier to identify in production areas and warehouses. It can be used to separate specific products, departments, production stages, quality statuses, or returnable pallet pools. Color coding reduces reliance on labels alone and helps operators recognize the intended pallet group from a distance.
2. Solid Deck Provides Continuous Product Support
The closed top deck provides a continuous loading surface for cartons, bags, containers, and smaller packaged products. Compared with an open grid deck, it prevents small items or packaging edges from entering deck openings. The flat surface is also easier to wipe or wash when handling products that require a controlled loading area.
3. Twelve Steel Bars Reinforce Both Deck and Base
The optional reinforcement system includes six steel bars in the deck and six in the base. This balanced arrangement strengthens both the upper loading surface and the lower picture-frame structure. It is designed to control bending across the pallet and provide additional support for heavy loads stored on compatible warehouse racks.
4. Continuous Support Above and Below the Load
The solid deck distributes cargo weight across the upper surface, while the full-perimeter base provides connected support around the underside. This combination is suitable for heavy cartons, bags, containers, and industrial products that benefit from broad support during transport, floor storage, and loaded stacking.
5. Reinforced Configuration Adds 50% More Load Capacity
Without steel bars, the pallet supports a 1,000 kg dynamic load and a 4,000 kg static load. The reinforced version increases both ratings by 50%, reaching 1,500 kg dynamically and 6,000 kg statically. It also adds a rated rack capacity of up to 1,000 kg under specified support conditions.
Applications of 1200 x 1000 Yellow Picture Frame Design Plastic Pallet
Color-coded Warehouse Operations
The yellow deck can identify designated products, production areas, inspection statuses, or internal pallet pools. It is suitable for facilities that use pallet colors as part of visual warehouse management.
Packaged Industrial Products
The solid surface supports cartons, bags, containers, components, and other products that may not sit securely on an open grid deck.
Heavy Floor Storage
The standard pallet supports up to 4,000 kg statically, while the reinforced configuration supports up to 6,000 kg under specified load conditions.
Warehouse Rack Storage
With all 12 steel bars installed, the pallet provides a rack capacity of up to 1,000 kg. Rack span, support direction, load distribution, temperature, and storage duration should be confirmed before use.
Customization Options
Preface Plast provides configuration options based on the required load and application.
Available options include:
- HDPE or PP material
- Plastic-only configuration
- Twelve-bar reinforced configuration
- Custom pallet colors
- Logo and identification printing
- Barcode or RFID identification
- Anti-slip components
- Custom packaging
FAQs
1. What is the advantage of a yellow plastic pallet?
Yellow pallets provide high visibility and can be used for warehouse zoning, product classification, quality-status identification, or management of a dedicated returnable pallet pool.
2. What products are suitable for the solid deck?
The solid deck is suitable for cartons, bags, containers, small components, and packaged products that require continuous support without openings in the loading surface.
3. How many steel bars can be installed?
The pallet can be fitted with 12 steel bars: six in the upper deck and six in the full-perimeter base. Their total weight is approximately 9.25 kg.
4. Can this pallet be used on warehouse racks?
Yes, the fully reinforced version supports up to 1,000 kg in compatible rack systems. The plastic-only version should not be used in racks unless separately tested and approved.
5. How many pallets fit in a shipping container?
The reference quantity is approximately 150 pallets in a 20FT container and 367 pallets in a 40HC container. Actual quantities may vary according to packaging and loading method.
