Basic Product Specifications
| Specification | Product Data |
|---|---|
| Materials | HDPE or PP |

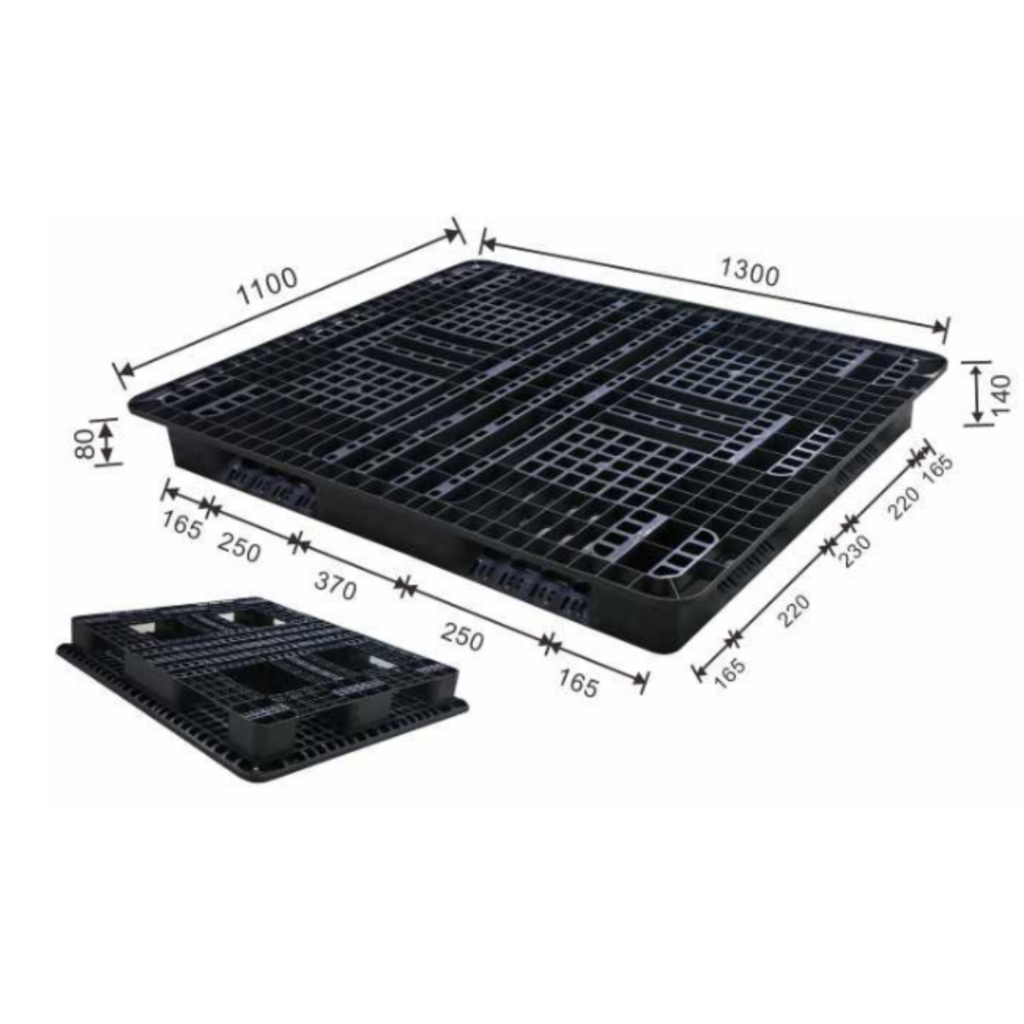

| Dimensions (L×W×H) | 1300 × 1100 × 140 mm |
| Process | One-piece Injection Molding |
| Weight | 11.3 kg |
| Reinforcement Bars | None |
| Base | Full Perimeter / 6 Runners |
| Top Deck | Ventilated Grid Deck |
| Forklift | 4-Way Entry |
| Fork Entry Height | Approximately 80 mm |
| Rackable | No |
| Stackable | Yes |
| Reusable | Yes |
| Standard Color | Black |
| Logo / Printing | Available |
| Dynamic Capacity | 1,500 kg |
| Static Capacity | 4,000 kg |
| Racking Capacity | Not Rated |
| 20FT Container Quantity | Approximately 120 Pieces |
| 40HC Container Quantity | Approximately 300 Pieces |
Main Features of 1300 x 1100 Returnable Full Perimeter Plastic Pallet
1. Large 1.43 m² Loading Area
The 1300 × 1100 mm footprint provides a loading area of approximately 1.43 m². It is suitable for oversized cartons, bags, containers, and industrial products that require more deck space than a 1200 × 1000 mm pallet. Customers should compare the pallet dimensions with their cargo footprint and handling equipment before ordering.
2. One-piece Structure Without Welded Runners
The pallet is produced as a one-piece injection-molded structure without separately welded runners. This eliminates welded joints between the deck and base and reduces the risk of runner separation during routine handling. The integrated structure is suitable for repeated factory, warehouse, and distribution use.
3. High Capacity at Only 11.3 kg
The pallet weighs 11.3 kg while supporting up to 1,500 kg dynamically—approximately 133 times its own weight. Its 4,000 kg static rating is approximately 354 times the pallet weight. The low tare weight makes empty pallets easier to handle and reduces the weight added to return and export shipments.
4. Low-profile 140 mm Height
At 140 mm high, the pallet is 10 mm lower than a common 150 mm industrial pallet. The lower profile helps limit the total height added beneath the cargo while retaining an approximately 80 mm forklift entry height. Equipment clearance should be checked before bulk purchasing.
5. Steel-free Full-perimeter Base
The pallet reaches its stated dynamic and static capacities without internal steel tubes. This avoids the additional weight of reinforcement and eliminates the need to separate steel bars from the plastic body at the end of service. The full-perimeter base provides connected support for floor storage and loaded stacking but is not rated for open-beam racking.
Applications of 1300 x 1100 Returnable Full Perimeter Plastic Pallet
Controlled Return Logistics
The lightweight one-piece structure is suitable for repeated movement between factories, suppliers, warehouses, and distribution centers where empty pallets can be collected and returned.
Oversized Packaged Goods
The 1300 × 1100 mm deck supports cartons, bags, containers, and industrial components that require a wider loading area.
Manufacturing and Warehouse Circulation
Four-way forklift entry supports material movement between production areas, floor-storage zones, loading docks, and distribution facilities.
Floor Storage and Export Transportation
The pallet supports up to 4,000 kg statically on a flat floor and can also be used for export shipments. It is not designed for unsupported rack storage.
Customization Options
Preface Plast provides configuration options based on cargo and handling requirements.
Available options include:
- HDPE or PP material
- Virgin or recycled material options
- Custom pallet colors
- Logo and identification printing
- Barcode or RFID identification
- Anti-slip components
- Custom packaging
FAQs
1. Is this pallet suitable for returnable logistics?
Yes. Its one-piece construction and low 11.3 kg tare weight make it suitable for controlled return routes between factories, suppliers, warehouses, and distribution centers. Actual service life depends on handling conditions and impact frequency.
2. Can this pallet be used on warehouse racks?
No racking capacity has been provided for this model. It should be used for transport, floor storage, and loaded stacking unless rack performance is separately tested and approved.
3. What are its load capacities?
The pallet supports up to 1,500 kg dynamically during forklift handling and 4,000 kg statically on a flat floor under the specified load conditions.
4. Does the pallet contain steel bars?
No. It reaches its stated dynamic and static capacities without steel reinforcement, keeping the pallet weight at 11.3 kg.
5. How many pallets fit in a shipping container?
The reference quantity is approximately 120 pallets in a 20FT container and 300 pallets in a 40HC container. Actual quantities may vary according to packaging and loading method.
