Basic Product Specifications
| Specifications | Details |
|---|---|
| Product Type | Printing Nestable Plastic Pallet |
| Dimensions (L×W×H mm) | 950 x 650 x 140 |
| Structure | 9 Legs |
| Top Deck | Flat Deck |
| Base | Nestable |
| Process | Injection Molding |
| Dynamic Capacity | 500 kg |
| Static Capacity | 800 kg |
| Forklift Entry | 4-Way Entry |
| Pallet Jack Entry | 4-Way Entry |
| Printing Press Application | Four-Color Printing |
| Reusable | Yes |
| Nestable | Yes |
| Moisture Resistant | Yes |
| Easy to Clean | Yes |
| Logo / Printing | Available |
| Color | Blue, Black, Grey, Custom |
| Customization | Size, Color, Logo, Structure |

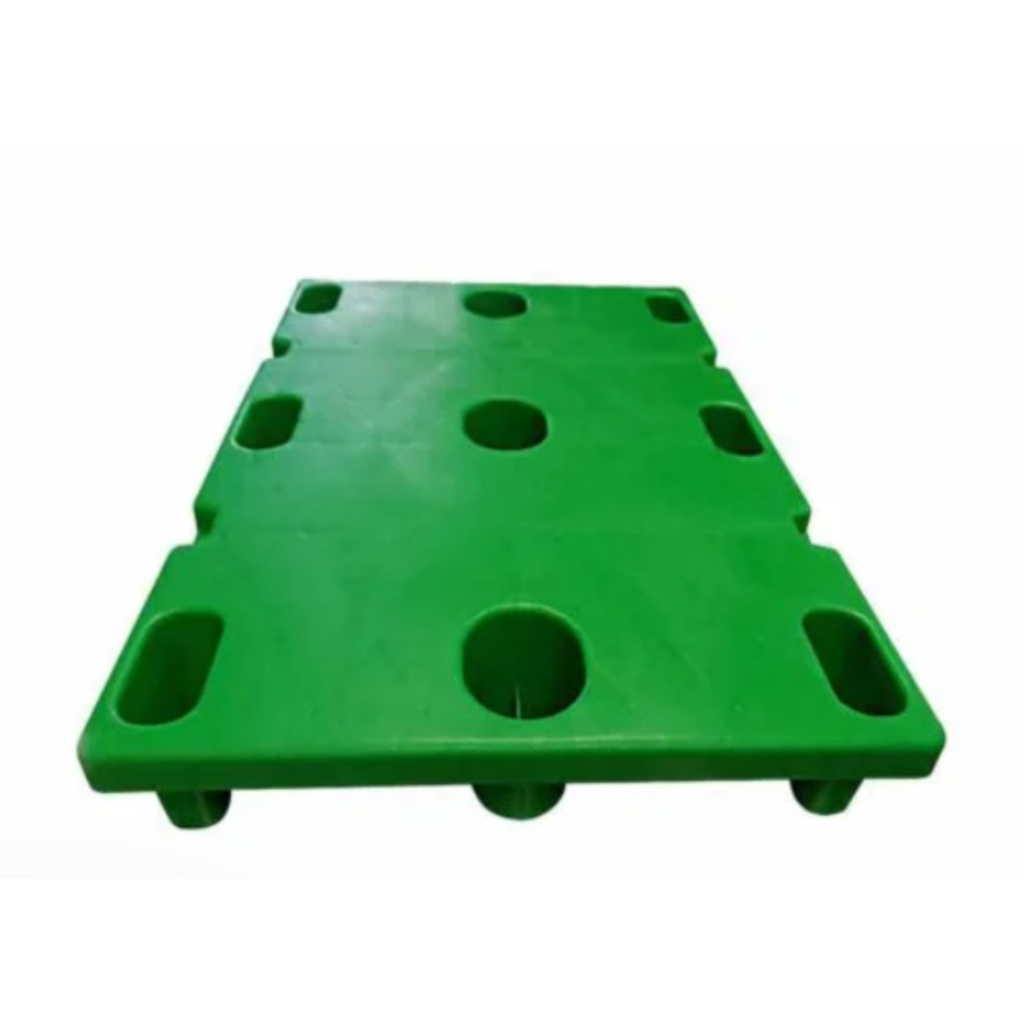

Main Features of 950 x 650 9 Legs Printing Nestable Plastic Pallet
1. Nestable Design Saves Storage Space
The biggest advantage of this model is its 9-leg nestable structure. When the pallets are empty, the legs can fit into the pallet below instead of requiring full-height stacking.
This makes the 950 x 650 mm pallet especially practical for printing plants that need to store a large number of empty pallets between production runs. It can also reduce the space occupied by pallets during return transportation.
2. 950 x 650 mm Compact Footprint
The relatively compact 950 x 650 mm format is designed for printing applications that do not require a full-size industrial pallet. The smaller footprint makes pallet positioning easier around printing equipment, workstations, and narrow production areas.
For paper handling operations, the format can be matched to the dimensions of the printing process, paper load, and equipment layout.
3. Flat Deck for Paper Handling
Unlike open or heavily ribbed industrial decks, this model uses a flat upper surface to provide a more continuous support area for paper and printed products.
The plastic deck avoids common wooden-pallet problems such as splinters, protruding nails, and broken boards. This makes it suitable for handling paper before printing as well as printed materials after production.
4. Designed for Four-Color Printing
The pallet is specified for four-color printing applications, making it suitable for paper staging and material transfer around four-color printing presses.
Its 950 x 650 x 140 mm format provides a defined pallet footprint for production areas where equipment compatibility and compact handling are more important than heavy industrial load capacity.
5. 500 kg Dynamic Capacity for Light-Duty Printing Loads
The pallet provides a 500 kg dynamic load capacity and an 800 kg static load capacity. This load range is suitable for light-duty movement of paper, printed sheets, cartons, and packaging materials.
Compared with heavy-duty rackable pallets, this model is better positioned as a compact printing and material-handling pallet rather than a high-load warehouse pallet. Actual capacity depends on load distribution, support conditions, handling equipment, and operating environment.
6. Efficient Empty-Pallet Return
Printing operations often move pallets back to the production area after unloading. The nestable construction reduces the amount of space required when pallets are empty, making the pallet suitable for return logistics and reusable pallet pools.
Instead of transporting each empty pallet at its full height, multiple pallets can be nested together before shipment or internal transfer.
7. Nine-Leg Base for Balanced Support
The nine-leg configuration provides multiple support points beneath the pallet deck while maintaining the nesting function.
The combination of a flat upper deck and distributed leg structure provides a practical balance between load support, handling stability, and empty-pallet nesting efficiency.
8. Easy Handling Around Production Lines
The pallet supports 4-way entry, allowing forklifts and pallet handling equipment to approach from different directions.
This is useful in printing workshops where pallets may need to move between paper storage, printing presses, finishing areas, and temporary staging locations without following a single fixed travel direction.
Applications of 950 x 650 9 Legs Printing Nestable Plastic Pallet
Four-Color Printing:
The pallet is designed for four-color printing applications and can be used for paper staging, material transfer, and handling around printing presses.
Paper Handling:
The flat plastic deck provides a continuous support surface for paper stacks and printed sheets, while the moisture-resistant construction is suitable for routine warehouse and production environments.
Printing Material Storage:
The pallet can be used for temporary storage of printing paper, packaging materials, and finished printed products before they move to the next production stage.
Packaging Operations:
Printed cartons, packaging components, labels, and other light-duty materials can be transferred between printing and packaging areas.
Return Logistics:
The nestable base makes the pallet particularly useful for reusable logistics loops where empty pallets must frequently be returned to printing plants or suppliers.
Small-Space Warehousing:
The compact footprint and nesting capability make this model suitable for production areas and storage locations where empty-pallet space is limited.
Customization Options
The 950 x 650 Printing Nestable Plastic Pallet can be adapted for different printing and paper-handling requirements.
Available customization:
- Custom pallet dimensions
- Flat or alternative deck structures
- Color customization
- Logo printing
- Identification markings
- Material options
- Packaging solutions
For printing applications, customers can provide their paper dimensions or equipment requirements to confirm whether the 950 x 650 mm format is suitable for the intended workflow.
FAQs
1. What makes this pallet different from a standard plastic printing pallet?
Its main difference is the nestable 9-leg base. The pallets can be inserted into one another when empty, making this model more suitable for space-conscious printing operations and return transportation.
2. How much weight can the pallet support?
The rated dynamic capacity is 500 kg, while the static capacity is 800 kg. These values should be evaluated together with the actual load pattern, support surface, and handling conditions.
3. Is this pallet suitable for four-color printing machines?
Yes. The product specification identifies it for four-color printing applications. Equipment compatibility should still be confirmed based on the actual machine dimensions and material-flow configuration.
4. How does the nesting structure reduce storage requirements?
The nine-leg base allows empty pallets to fit into one another rather than being stacked with the full 140 mm height of every pallet added separately. The actual space saving depends on the nesting depth and quantity stored.
5. Is the 950 x 650 pallet suitable for heavy warehouse racking?
This model is primarily intended for printing and light-duty material handling. It should not be treated as a heavy-duty rackable pallet unless the specific pallet design has been tested and rated for the intended racking system.
6. Can forklifts and pallet jacks enter from four sides?
Yes. The pallet is designed with 4-way entry, allowing flexible access during printing-floor and warehouse handling.
7. Can the pallet be used repeatedly?
Yes. The plastic construction is suitable for reusable handling and return logistics. Its nestable design is especially useful where empty pallets are regularly collected, stored, and transported back for reuse.
8. Can the pallet be customized for a different printing machine?
Yes. Dimensions, color, logo, deck structure, and other specifications can be adjusted according to the application. For a machine-specific project, equipment or pallet drawings can be provided for compatibility assessment.
