Basic Product Specifications
| Dimensions (L×W×H mm) | Material | Weight (kg) | Dynamic Load (t) | Static Load (t) |
| 800 × 650 × 140 | PE | 6.5 | 0.6 | 2.0 |
| 860 × 730 × 140 | PP | 6.8 | 0.6 | 2.0 |
| 1000 × 700 × 140 | PE | 8.9 | 0.3 | 0.5 |
| 1000 × 800 × 140 | PE | 10 | 1.0 | 2.5 |
| 800 × 800 × 145 | — | — | 0.6 | 2.0 |
| 1000 × 1000 × 140 | — | — | 1.0 | 2.0 |
| 1100 × 800 × 160 | — | — | 1.0 | 2.0 |
| 1200 × 800 × 170 | — | — | 1.0 | 3.0 |
| 1200 × 1000 × 140 | — | — | 1.0 | 2.5 |
| 1250 × 900 × 140 | — | — | 1.0 | 3.0 |
| Specification | Details |
|---|---|
| Structure | 9-Leg Flat Top |
| Top Deck | Flat / Solid Deck |
| Entry | 4-Way Entry |
| Forklift Entry | 450 mm / 550 mm / 680 mm depending on model |
| Pallet Jack | Supported |
| Process | Injection Molding |
| Application | Printing, Paper Handling, Internal Logistics |
| Logo / Printing | Available |
| Color | Blue, Black, Grey, Custom |

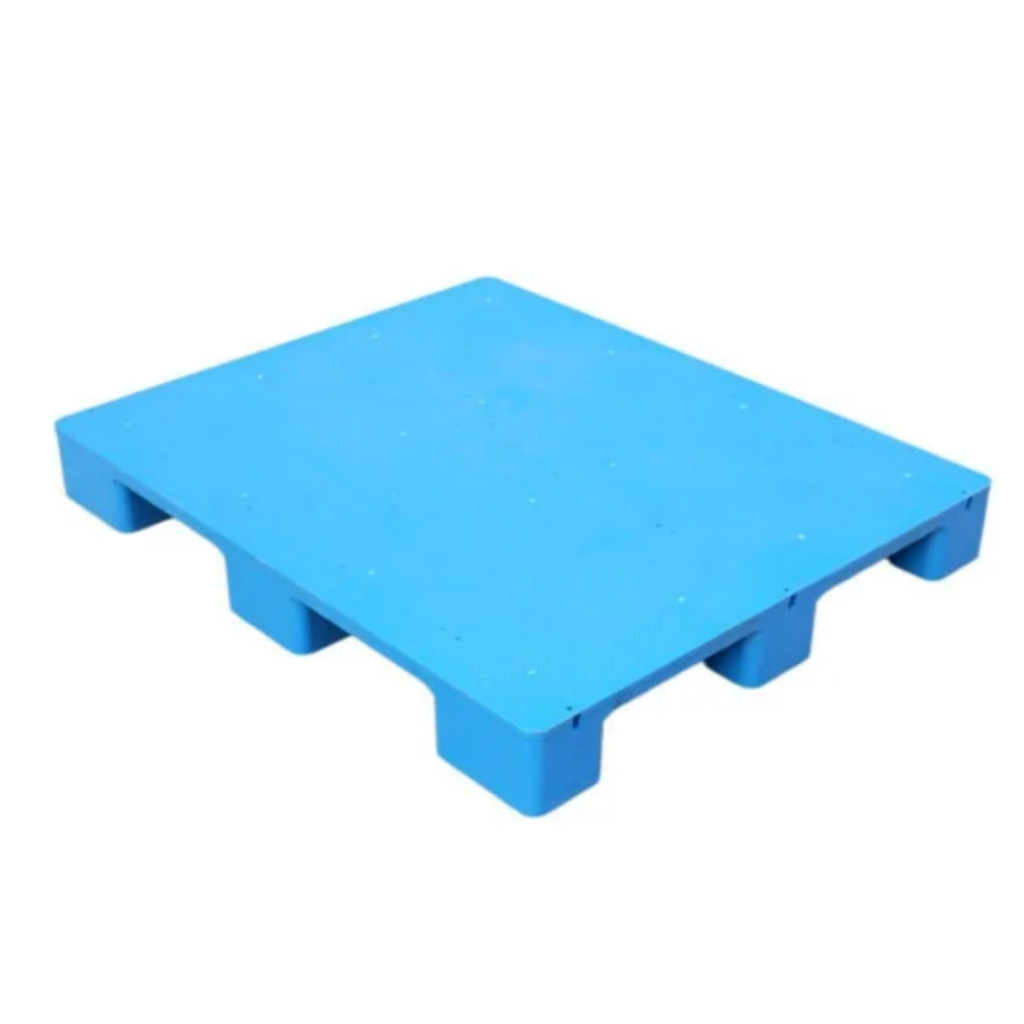

Main Features of 9 Legs Flat Top Plastic Pallets
Flat Printing Surface
The flat top deck provides continuous support for paper sheets and printed materials, helping keep loads stable during handling, storage, and production transfer.
Nine-Leg Support
The 9-leg structure distributes support across multiple points under the deck, providing stable handling performance for paper and other flat printing materials.
Multiple Printing Sizes
Sizes from 800 × 650 mm to 1250 × 900 mm provide different format options for paper handling, printing equipment, and internal production workflows.
Flexible Load Capacity
The range covers 0.3–1.0 tons dynamic and 0.5–3.0 tons static capacity, allowing different models to match specific load and handling requirements.
Four-Way Entry
The 4-way entry design supports flexible forklift and pallet jack access, making it easier to move materials between printing, finishing, packaging, and storage areas.
Stable Paper Support
The flat deck offers broad contact with the load base, helping reduce gaps beneath paper stacks and printed products during internal transportation.
Reusable Construction
The plastic structure is suitable for repeated handling and routine cleaning, making these pallets practical for recurring printing and material-transfer operations.
Format-Matched Handling
Multiple pallet dimensions make it easier to select a footprint that matches the load size, reducing unnecessary overhang and improving material-handling efficiency.
Applications of 9 Legs Flat Top Plastic Pallets
Printing Industry
The pallets are designed for paper sheets, printed materials, cartons, and packaging materials used in printing and finishing operations. The flat deck provides stable support during material movement and temporary storage.
Paper Handling
Different sizes allow the series to accommodate various paper formats and load dimensions. The smooth plastic surface provides a consistent support platform for paper-based materials.
Printing Production
The pallets can be used for material transfer between printing presses, finishing equipment, packaging stations, and warehouse areas, supporting repeated movement during daily production.
Warehouse Storage
These pallets are suitable for floor storage, staging, order preparation, and internal material circulation where a flat support surface and flexible forklift access are required.
Packaging Operations
After printing and finishing, the pallets can support cartons, packaged products, and other materials before shipment, further processing, or distribution.
Customization Options
We provide customized 9 Legs Flat Top Plastic Pallet solutions according to printing and material-handling requirements.
Available options include:
- Custom dimensions
- Material selection
- Color customization
- Logo printing
- Packaging solutions
- Structural adjustments
Customers can provide the paper size, load dimensions, handling equipment, and application requirements so the pallet size and structure can be matched to the actual workflow.
FAQs
1. What sizes are available for printing applications?
The 9-leg flat top pallet series includes sizes from 800 × 650 mm to 1250 × 900 mm, with options such as 800 × 800, 1000 × 800, 1000 × 1000, 1100 × 800, 1200 × 800, and 1200 × 1000 mm.
2. How much weight can these printing pallets support?
Depending on the model, dynamic capacity ranges from 0.3 to 1.0 tons, while static capacity ranges from 0.5 to 3.0 tons. Actual capacity depends on load distribution and operating conditions.
3. Are these pallets suitable for forklifts and pallet jacks?
Yes. The pallets feature 4-way entry, with forklift entry dimensions varying by model. Specific entry dimensions should be checked against the selected pallet model and handling equipment.
4. Which pallet size is suitable for my printing application?
The appropriate size depends on your paper format, load dimensions, equipment clearance, and handling method. Providing your material dimensions and application details allows the most suitable model to be selected.
5. Can the 9 Legs Flat Top Plastic Pallets be customized?
Yes. We can customize pallet dimensions, materials, colors, logo printing, and selected structural details according to your printing and logistics requirements.
Final CTA
Need a Plastic Pallet for Printing?
Choose the right flat top pallet size, load capacity, and entry configuration for your printing operation. Send us your paper dimensions and handling requirements to get a suitable pallet recommendation and quotation.
