Basic Product Specifications
| Specification | Details |
|---|---|
| Model | ENL1612-190 |

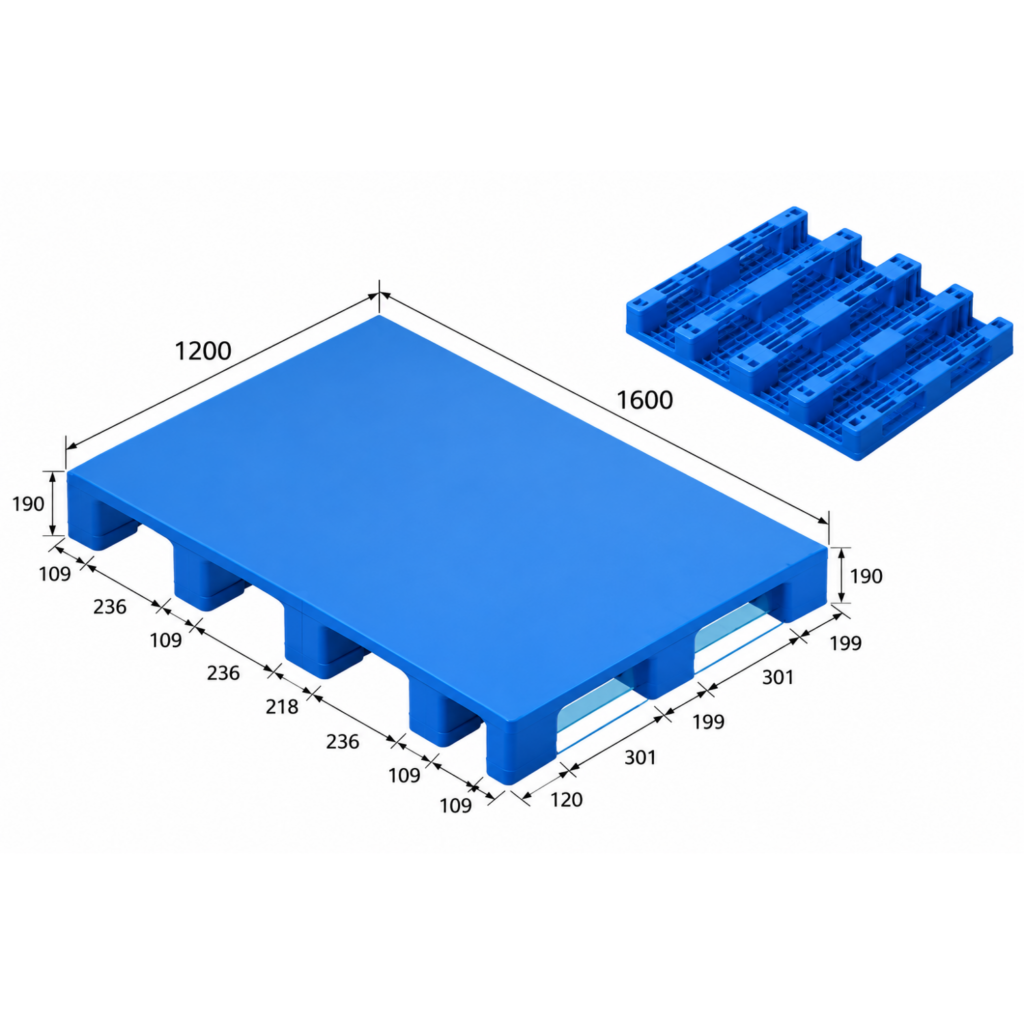

| Dimensions (L×W×H mm) | 1600 × 1200 × 190 |
| Structure | 5 Legs / Runner Type |
| Top Deck | Flat Deck |
| Dynamic Capacity | 2,000 kg |
| Static Capacity | 5,000 kg |
| Entry | 4-Way Entry |
| Forklift Entry | 450 / 550 / 680 mm / Other |
| Pallet Jack | Supported |
| Application | Large-Format Printing, Paper Handling, Internal Logistics |
| Color | Custom |
| Logo / Printing | Available |
Main Features of 1600 x 1200 5 Legs Large-Format Printed Plastic Pallet
Large Printing Format
The 1600 × 1200 mm footprint provides a large working surface for oversized paper sheets, printed materials, and large-format production loads.
Flat Support Surface
The flat top deck provides broad contact across the load base, helping keep large paper stacks and printed materials stable during handling and staging.
2-Ton Dynamic Load
With a 2,000 kg dynamic capacity, the pallet supports heavy large-format materials during forklift and pallet handling operations.
5-Ton Static Load
The 5,000 kg static capacity provides strong support for heavy loads during floor storage, staging, and production processes.
Five-Leg Structure
The 5-leg base provides multiple support points across the large pallet footprint, helping maintain structural stability under distributed loads.
Flexible Entry Options
The pallet supports 450 mm, 550 mm, and 680 mm entry configurations, with other entry options available for different handling equipment.
Large-Surface Handling
The oversized pallet format provides more usable loading area for large printing materials, helping reduce unnecessary overhang during internal transportation.
Reusable Plastic Design
The plastic pallet structure is suitable for repeated material handling in printing plants, production areas, and warehouse logistics.
Applications of 1600 x 1200 5 Legs Large-Format Printed Plastic Pallet
Large-Format Printing
The pallet is designed for large printed sheets, oversized paper, posters, packaging boards, and other large-format printed materials. Its 1600 × 1200 mm platform provides broad support for oversized loads.
Paper Handling
The large flat deck is suitable for moving and staging paper stacks that exceed the footprint of conventional printing pallets.
Printing Production
The pallet can be used between printing, finishing, cutting, packaging, and storage areas where large-format materials require stable internal transportation.
Warehouse Staging
With a 5,000 kg static capacity, the pallet can support heavy loads during floor storage and temporary production staging.
Internal Logistics
The 4-way entry structure provides flexible handling with forklifts and pallet handling equipment across production and warehouse environments.
Customization Options
We provide customized large-format printing plastic pallet solutions according to application and equipment requirements.
Available options include:
- Custom dimensions
- Entry configuration
- Material selection
- Color customization
- Logo printing
- Packaging solutions
- Structural adjustments
Customers can provide the paper size, load weight, handling equipment, and production requirements so the pallet can be matched to the actual workflow.
FAQs
1. What is the load capacity of the 1600 x 1200 pallet?
The pallet has a 2,000 kg dynamic load capacity and a 5,000 kg static load capacity under the specified operating conditions.
2. Is this pallet suitable for large-format printing?
Yes. Its 1600 × 1200 mm flat deck is designed for oversized paper, printed materials, and other large-format loads that require a larger support surface.
3. Can forklifts enter the pallet from different directions?
Yes. The pallet supports 4-way entry, with 450 mm, 550 mm, and 680 mm entry configurations shown for the model, with other options available.
4. What is the advantage of the 1600 x 1200 mm size?
The large footprint provides more continuous support for oversized printing materials and can reduce load overhang compared with smaller pallet formats.
5. Can the pallet be customized for specific printing equipment?
Yes. Dimensions, entry configuration, color, logo, and selected structural specifications can be customized according to the printing process and handling equipment.
Final CTA
Need a Large-Format Printing Pallet?
Choose a 1600 × 1200 mm plastic pallet with the load capacity and entry configuration required for your printing operation. Send us your material dimensions and handling requirements for a suitable pallet solution.
