Product Specification
| Materials | HDPE / PP |

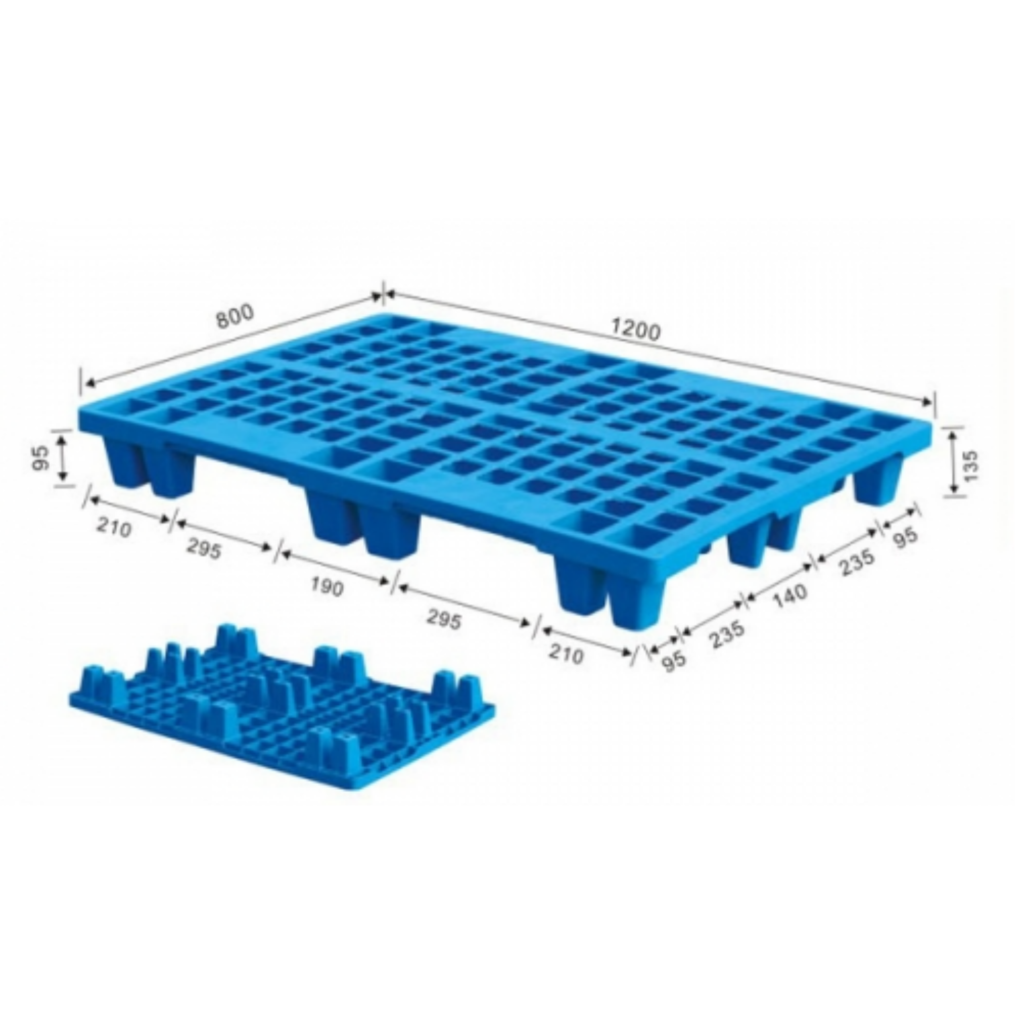

| Dimensions (L×W×H mm) | 1200 × 800 × 135 |
| Processes | One-piece Injection Molding |
| Weight | 5.8 kg |
| Base | 9 Legs |
| Top Deck | Open Grid Deck |
| Forklift | 4 Way Entry |
| Pallet Jack | 4 Way Entry |
| Static Capacity | 1500 kg |
| Dynamic Capacity | 500 kg |
| Stacking Quantity | 500 pcs / 1200 pcs |
| Reusable | Yes |
| Hygienic | Yes |
| Logo / Printing | Yes |
| Color | Blue, Black, Grey, Custom |
Product Advantages
Ultra-Light 5.8kg Design
At only 5.8kg, this pallet is designed for operations where pallet tare weight matters. The lightweight structure makes manual repositioning easier and reduces the amount of pallet weight included in repeated transportation.
Open Grid Airflow
The open grid deck creates multiple ventilation and drainage openings, allowing air and water to pass through the pallet surface. This makes it suitable for goods requiring airflow or environments where moisture drainage is important.
Nine-Leg Support
The 9-leg configuration distributes the pallet structure across multiple support points while keeping the overall pallet lightweight. The nine-leg base also creates clear forklift and pallet-jack entry areas for routine warehouse handling.
One-Piece Construction
Manufactured through one-piece injection molding, the pallet does not rely on welded deck and leg components. Its integrated structure provides consistent dimensions and eliminates separate assembly points during normal use.
Low-Tare Logistics
The 5.8kg pallet weight is particularly useful when empty pallets need to be moved, returned, or shipped over long distances. A lighter pallet can also help reduce the proportion of packaging weight within lightweight distribution systems.
Export-Friendly Format
The 1200 × 800mm footprint provides a practical European pallet format for international logistics. The lightweight construction is suitable for export applications where empty pallet weight, handling efficiency, and return transportation costs need to be controlled.
500kg Dynamic Capacity
The pallet supports up to 500kg dynamic load under appropriate handling conditions, making it suitable for lightweight cartons, packaged goods, components, and general distribution cargo.
1500kg Static Support
When placed on a stable, level floor with properly distributed cargo, the pallet provides up to 1500kg static capacity, giving lightweight construction enough support for warehouse staging and temporary storage.
Typical Applications
Export Packaging
The lightweight 1200 × 800mm footprint is suitable for export packaging where pallet tare weight and international transportation efficiency are important.
Distribution Logistics
The 5.8kg construction allows empty pallets to be moved and handled easily between distribution areas, warehouses, and loading zones.
Carton Handling
The open grid deck provides a stable base for properly packaged cartons while allowing airflow and drainage through the pallet surface.
Lightweight Manufacturing
Suitable for moving lightweight components, packaged parts, and semi-finished products between production and storage areas.
Food & General Goods
The washable plastic construction can be used for suitable packaged goods where the application requires a cleanable and moisture-resistant pallet surface.
Our Custom Options
Besides the standard 1200 × 800mm Lightweight Grid Deck 9-Legs Plastic Pallet, Enlightening Pallet can adjust the configuration according to cargo and handling requirements.
Size: length, width, height, and fork-entry dimensions
Load: deck thickness, support ribs, and load-bearing structure
Material: virgin material, recycled material, or specified material blend
Additive Addition: UV absorber, anti-static agent, toughening agent, antibacterial agent, and flame retardant
Color Customization: blue, black, grey, green, or other customized colors
Surface Design: customized grid opening, anti-slip areas, and edge details
Tracking: pre-embedded RFID chip
Marking: number, barcode, QR code, LOGO printing, or heat transfer
FAQ
Q1: How much does this lightweight plastic pallet weigh?
The standard 1200 × 800mm pallet weighs approximately 5.8kg, making it suitable for applications where low pallet tare weight and easier empty-pallet handling are important.
Q2: What is the load capacity of the 1200 × 800mm pallet?
The pallet has a rated capacity of up to 500kg under dynamic handling conditions and 1500kg under static storage conditions, provided the load is properly distributed.
Q3: What makes this pallet different from a standard 9-leg pallet?
Its main distinction is the 5.8kg lightweight construction combined with an open grid deck and 1200 × 800mm footprint. It is designed specifically for applications where reducing pallet weight is more important than maximizing heavy-duty capacity.
Q4: Is the open grid deck suitable for wet environments?
The grid structure allows water and air to pass through the deck rather than collecting across a completely closed surface. The actual suitability depends on the cargo, hygiene requirements, and operating environment.
Q5: Can the pallet be used for export shipping?
Yes. Its 1200 × 800mm format and 5.8kg weight make it suitable for export packaging and distribution applications where pallet weight and empty-pallet transportation are important considerations.
Additional Information
| Product Weight | 5.8 kg |
| Dimensions | 1200 × 800 × 135 mm |
| Dynamic Capacity | 500 kg |
| Static Capacity | 1500 kg |
| Stacking Quantity | 500 / 1200 pcs |
| Sample Availability | Free (Freight at Buyer’s Expense) |
| Lead Time | 15 days after 50% deposit |
| Shipping Ports | Qingdao, Shanghai, and other options |
| Export Capability | Global delivery supported |
| MOQ | 300 pcs |
