Product Specification
| Specification | Details |
| Materials | HDPE / PP |

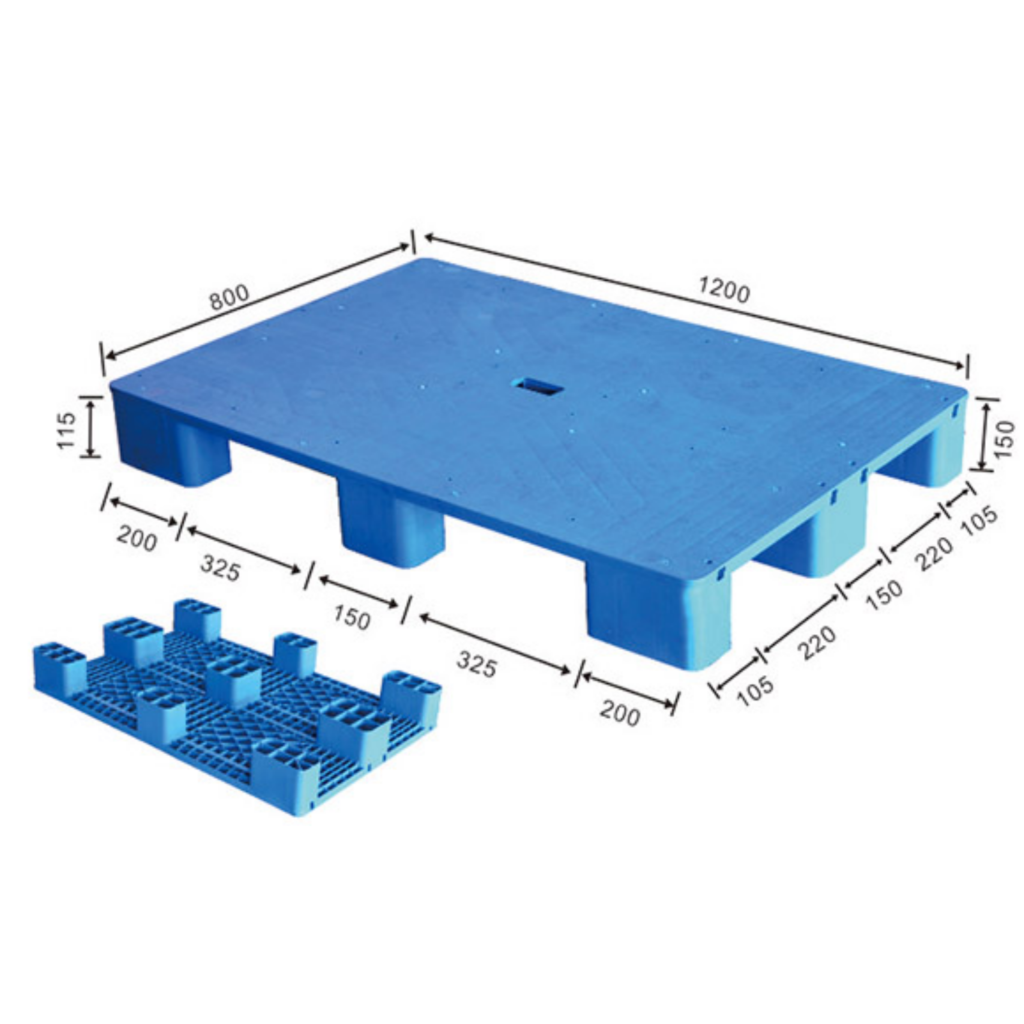

| Dimensions (L×W×H mm) | 1200 x 800 x 150 |
| Processes | One-Piece Injection Molding |
| Structure | One-Piece Molded |
| Top Deck | Solid Flat Top |
| Bottom Structure | 9-Leg |
| Pallet Weight | 10.9 kg |
| Steel Reinforcement | 3 kg, 4 Steel Tubes Optional |
| Forklift Entry | 4-Way Entry |
| Pallet Jack Entry | 4-Way Entry |
| Static Capacity | Up to 4000 kg |
| Dynamic Capacity | Up to 1000 kg |
| Stackable | Yes |
| Reusable | Yes |
| Logo / Printing | Available |
| Color | Blue, Black, Grey, Orange, Custom |
Product Advantages
Solid Flat Top
The solid flat deck provides a continuous loading surface for cartons, boxes, bags, and products with smaller contact areas. Compared with open-grid decks, it offers greater surface coverage and helps prevent smaller packages from entering deck openings.
One-Piece Molding
The pallet is manufactured through one-piece injection molding, integrating the deck and nine support legs into a single structure. This eliminates separate assembly between major pallet components and provides consistent dimensions across the pallet.
Nine-Leg Base
The 9-leg support structure provides multiple load-bearing points beneath the deck while maintaining openings for handling equipment. The legs also allow empty pallets to be stacked together for more efficient storage.
Optional Steel Tubes
For applications requiring additional structural reinforcement, the pallet can accommodate 4 steel reinforcement tubes, with the steel components weighing approximately 3kg. This option allows the pallet configuration to be matched to specific handling and load requirements.
Balanced Load Support
The pallet supports up to 1000kg dynamic load and 4000kg static load under specified conditions. Actual capacity depends on load distribution, support conditions, handling equipment, and operating environment.
10.9kg Pallet Weight
With a base weight of approximately 10.9kg, the pallet provides a relatively lightweight solution for routine warehouse handling. The optional steel reinforcement can be added when greater structural support is required.
Four-Way Entry
The 4-way entry structure allows forklifts and pallet jacks to approach the pallet from four directions. This provides greater flexibility when pallets need to be repositioned, loaded, or unloaded in different orientations.
Reusable Construction
The HDPE/PP plastic structure is designed for repeated handling and circulation. Its resistance to moisture and common warehouse conditions makes it suitable for reusable logistics systems where pallets move repeatedly between storage, production, and distribution areas.
Typical Applications
Warehouse Storage
The 1200 × 800mm solid deck provides a stable base for cartons, packaged goods, boxes, and containers stored on warehouse floors or compatible storage systems.
Distribution Centers
The 4-way entry design allows the pallet to be moved efficiently between receiving, storage, picking, and dispatch areas, supporting frequent material handling operations.
Manufacturing Logistics
The reusable pallet can transport components, raw materials, and finished products between production lines and warehouse areas while providing a continuous deck surface for packaged goods.
Retail Distribution
The solid top deck is suitable for boxed and packaged products moving through distribution centers where smaller packages require continuous support across the pallet surface.
General Material Handling
The combination of a 10.9kg base weight, 9-leg structure, and optional steel reinforcement makes this model adaptable to different warehouse and internal logistics requirements.
Our Custom Options
Besides existing models, Enlightening Pallet provides customized Solid Flat Top Plastic Pallet solutions according to cargo dimensions, weight, handling equipment, and working conditions.
Size: length, width, height, and fork-entry dimensions
Load: reinforced ribs, increased deck thickness, and additional structural reinforcement
Steel Reinforcement: optional steel tubes and customized tube quantity or configuration
Material: virgin HDPE/PP, recycled material, or customized material combinations
Additives: UV absorber, anti-static agent, flame retardant, toughening agent, and antibacterial additives
Color: blue, black, grey, orange, or custom colors
Surface Design: anti-slip pads, customized anti-slip patterns, and safety edges
Tracking: pre-embedded RFID chips for pallet identification and logistics tracking
Marking: serial numbers, barcodes, QR codes, LOGO printing, or heat transfer
Accessories: pallet collars, separator boards, and other customized components
FAQ
Q1: What is the load capacity of this 1200 x 800mm plastic pallet?
This model supports up to 1000kg dynamic load and 4000kg static load under specified conditions. The actual working capacity should be evaluated according to load distribution, support conditions, handling method, and application environment.
Q2: What does one-piece injection molded mean?
One-piece injection molding means the pallet deck and support legs are formed as an integrated plastic structure during the injection molding process. There is no separate assembly of the main pallet body after molding.
Q3: Can steel tubes be added to this pallet?
Yes. The model can be configured with 4 steel reinforcement tubes, adding approximately 3kg to the pallet weight. The reinforcement configuration can be selected according to the required load and handling conditions.
Q4: Is a solid flat top better for small packages?
A solid flat deck provides continuous surface support, making it suitable for cartons, bags, boxes, and products with smaller contact areas that may be less stable on an open-grid deck.
Q5: Can this pallet be used with pallet jacks?
Yes. The 4-way entry design allows compatible forklifts and pallet jacks to access the pallet from four directions, improving handling flexibility in warehouses and distribution facilities.
Additional Information
| Weekly Output Capacity | 100,000 pcs/week |
| Sample Availability | Free (Freight at Buyer’s Expense) |
| Standard Lead Time | 7–15 business days |
| Custom Order Lead Time | 20–30 business days, depending on design and mold requirements |
| Shipping Ports | Qingdao, Shanghai, and other options |
| Export Capability | Global delivery supported |
| MOQ | 300 pcs |
Payment & Delivery Information
- Payment
T/T (Telegraphic Transfer): Commonly used for bulk orders, with payment terms confirmed according to the order.
L/C (Letter of Credit): Available for qualified larger orders upon agreement.
Other Payment Methods: Available for smaller orders or specific purchasing requirements. - Production Lead Time
Standard Orders: 7–15 business days, depending on order quantity and production schedule.
Custom Orders: 20–30 business days, depending on customization requirements and mold/design confirmation. - Delivery
Sea Freight: Suitable for bulk plastic pallet orders and international shipments, with final transit time depending on the destination port and shipping route.
