Product Specification
| Specification | Details |
| Materials | HDPE / PP |

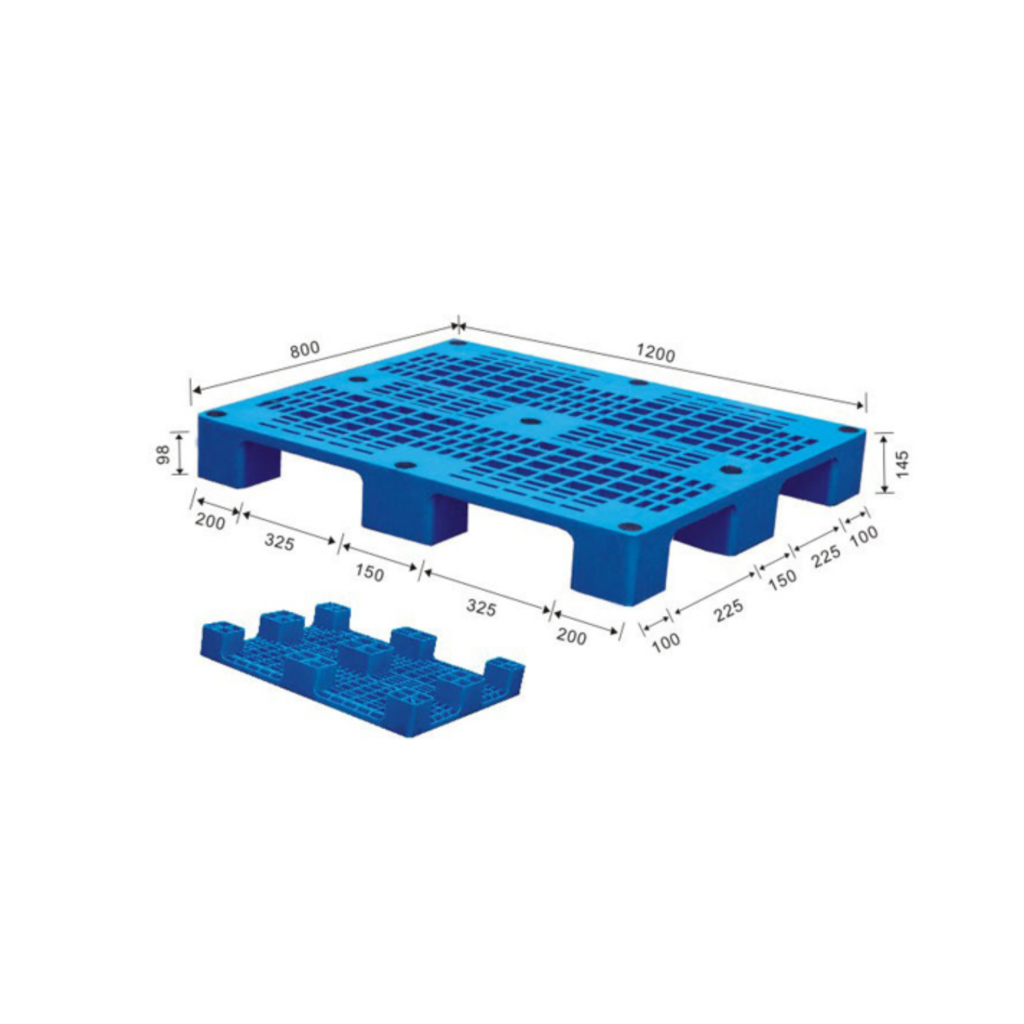

| Dimensions (L×W×H mm) | 1200 x 800 x 145 |
| Processes | One-Piece Injection Molding |
| Structure | One-Piece Molded |
| Top Deck | Open Grid |
| Bottom Structure | 9-Leg |
| Pallet Weight | 11.05 kg |
| Steel Reinforcement | 3 kg, 4 Steel Tubes Optional |
| Forklift Entry | 4-Way Entry |
| Pallet Jack Entry | 4-Way Entry |
| Dynamic Capacity | Up to 1000 kg |
| Static Capacity | Up to 4000 kg |
| Stackable | Yes |
| Reusable | Yes |
| Logo / Printing | Available |
| Color | Blue, Black, Grey, Orange, Custom |
Product Advantages
Open Grid Surface
The open grid deck uses distributed openings across the pallet surface rather than a continuous flat deck. This structure allows air and water to pass through the deck, making it suitable for applications where ventilation and drainage are important.
One-Piece Molding
The deck and 9-leg support structure are produced as a single injection-molded body. This one-piece manufacturing process avoids separate assembly of the main pallet structure and provides consistent positioning of the support legs.
Drainage & Ventilation
The open deck allows moisture to drain through the pallet instead of remaining on a continuous surface. Air can also circulate through the deck openings, which is useful when pallets are exposed to washing, condensation, or humid warehouse conditions.
Reinforced Steel Option
For higher structural requirements, the pallet can be fitted with 4 steel reinforcement tubes, adding approximately 3kg to the pallet. This provides buyers with a choice between the standard plastic configuration and a reinforced version based on the intended load.
Balanced 9-Leg Support
The nine-leg base distributes loads across multiple support points while maintaining access channels for material-handling equipment. The configuration also allows empty pallets to be stacked together when they are not carrying cargo.
4-Way Handling
The 4-way entry design allows forklifts and compatible pallet jacks to approach the pallet from four directions. This reduces the need to rotate pallets before handling and provides more flexibility in warehouse operations.
1000kg Dynamic Capacity
The pallet supports up to 1000kg under dynamic handling conditions and up to 4000kg under static conditions, subject to load distribution and test conditions. This makes it suitable for routine movement and floor stacking of general industrial and commercial goods.
Easy-Clean Deck
The open structure provides fewer continuous surfaces where water and loose debris can remain trapped. Combined with the plastic construction, this makes the pallet easier to wash and maintain than many traditional wooden alternatives.
Typical Applications
Warehouse Distribution
The 1200 × 800mm footprint fits compact warehouse and distribution operations where pallets need to move frequently between receiving, storage, picking, and dispatch areas.
Food & Beverage Logistics
The open deck allows water and cleaning fluids to pass through the pallet structure, making it suitable for appropriate packaged food and beverage logistics where drainage and hygiene are important.
Cold Chain Handling
The open grid structure provides ventilation through the deck and is suitable for logistics environments where products and pallets may be exposed to condensation or temperature changes.
Manufacturing Logistics
The reusable pallet can be used for moving components, packaged materials, and finished products between production lines, warehouses, and assembly areas.
Distribution & Retail
The 1200 × 800mm size provides a practical platform for cartons, cases, and packaged products moving through distribution centers and retail supply chains.
Our Custom Options
Besides existing models, Enlightening Pallet provides customized Open Grid Plastic Pallet solutions based on cargo weight, handling equipment, and working conditions.
Size: length, width, height, and fork-entry dimensions
Load: reinforced ribs, increased deck thickness, and additional structural reinforcement
Steel Reinforcement: optional steel tubes, quantity, and reinforcement configuration
Material: virgin HDPE/PP, recycled material, or customized material combinations
Additives: UV absorber, anti-static agent, flame retardant, toughening agent, and antibacterial additives
Color: blue, black, grey, orange, or custom colors
Grid Design: customized opening size, grid pattern, anti-slip areas, and safety edges
Tracking: pre-embedded RFID chips for pallet identification and logistics tracking
Marking: serial numbers, barcodes, QR codes, LOGO printing, or heat transfer
Accessories: pallet collars, separator boards, and other customized components
FAQ
Q1: What is the load capacity of this open grid pallet?
The pallet supports up to 1000kg dynamic load and 4000kg static load under specified conditions. Actual working capacity depends on load distribution, support conditions, handling equipment, and operating environment.
Q2: What is the benefit of an open grid pallet?
An open grid deck allows air and water to pass through the pallet surface, which can improve drainage and ventilation. It is useful for applications involving washing, condensation, humidity, or products requiring airflow.
Q3: Is this pallet one-piece injection molded?
Yes. The main deck and nine-leg body are manufactured as an integrated one-piece injection-molded structure, rather than being assembled from separate deck and leg components.
Q4: Can steel reinforcement tubes be installed?
Yes. The model can be configured with 4 steel reinforcement tubes, with the reinforcement weighing approximately 3kg. The final configuration can be selected according to the required load and handling conditions.
Q5: What is the difference between this pallet and a solid flat top pallet?
The main difference is the deck structure. This model uses an open grid deck for drainage and ventilation, while a solid flat top pallet provides a continuous loading surface for goods requiring full deck coverage.
Additional Information
| Weekly Output Capacity | 100,000 pcs/week |
| Sample Availability | Free (Freight at Buyer’s Expense) |
| Standard Lead Time | 7–15 business days |
| Custom Order Lead Time | 20–30 business days, depending on design and mold requirements |
| Shipping Ports | Qingdao, Shanghai, and other options |
| Export Capability | Global delivery supported |
| MOQ | 300 pcs |
Payment & Delivery Information
- Payment
T/T (Telegraphic Transfer): Commonly used for bulk orders, with payment terms confirmed according to the order.
L/C (Letter of Credit): Available for qualified larger orders upon agreement.
Other Payment Methods: Available for smaller orders or specific purchasing requirements. - Production Lead Time
Standard Orders: 7–15 business days, depending on order quantity and production schedule.
Custom Orders: 20–30 business days, depending on customization requirements and mold/design confirmation. - Delivery
Sea Freight: Suitable for bulk plastic pallet orders and international shipments, with final transit time depending on the destination port and shipping route.
