Product Specification
| Specification | Details |
| Materials | HDPE / PP |

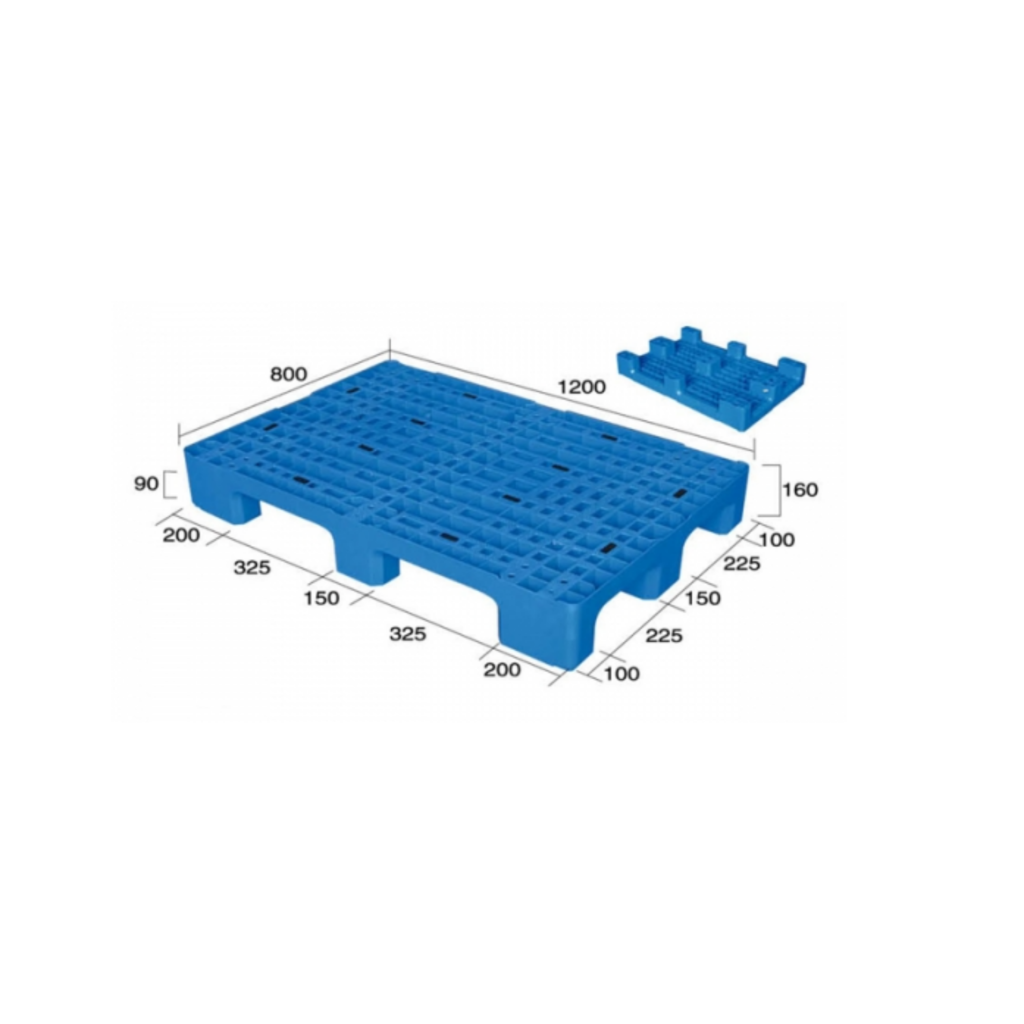

| Dimensions (L×W×H mm) | 1200 x 800 x 160 |
| Structure | One-Piece Molded |
| Top Deck | Grid Deck |
| Bottom Structure | 9-Leg |
| Pallet Weight | 13.8 kg |
| Forklift Entry | 4-Way Entry |
| Pallet Jack Entry | 4-Way Entry |
| Dynamic Capacity | 1000 kg |
| Static Capacity | 4000 kg |
| Rackable | Confirm According to Application |
| Stackable | Yes |
| Reusable | Yes |
| Hygienic | Yes |
| Color | Blue, Black, Grey, Custom |
| Logo / Printing | Available |
Product Advantages
Open Grid Deck
The grid deck structure reduces unnecessary material while maintaining a stable loading surface. The openings also allow easier drainage and ventilation when pallets are used in environments where moisture or airflow needs to be considered.
One-Piece Construction
The pallet is produced as a one-piece molded structure, eliminating assembly between the deck and legs. This integrated design reduces loose components and provides consistent structural performance during repeated material handling.
Nine-Leg Support
The 9-leg configuration distributes the pallet load across multiple support points and provides clearance for forklift and pallet jack access. The evenly spaced legs also allow empty pallets to be stacked when not in use.
4-Way Entry
The 4-way entry design allows handling equipment to approach the pallet from four directions. This makes loading and unloading more flexible in warehouses, production lines, and distribution centers where pallet orientation may change frequently.
Balanced Load Capacity
With a 1000kg dynamic capacity and up to 4000kg static capacity, this pallet is suitable for everyday material handling and floor stacking applications. Actual capacity should be evaluated according to load distribution, handling equipment, and operating conditions.
13.8kg Lightweight Design
At approximately 13.8kg per pallet, the design reduces the amount of weight operators and handling equipment need to move compared with heavier industrial pallet models. This can also simplify manual repositioning of empty pallets.
Stackable Empty Design
The nine-leg structure allows empty pallets to be stacked together to reduce floor space during storage and return transportation. This is useful for warehouses and distribution operations that regularly handle empty pallet inventory.
Reusable Plastic Structure
The plastic construction is suitable for repeated handling cycles and is resistant to common warehouse conditions such as moisture and repeated forklift contact. Unlike disposable wooden pallets, the same pallet can be returned and reused within a closed logistics cycle.
Typical Applications
Warehouse Distribution
The 1200 × 800mm footprint is suitable for cartons, packaged products, containers, and general warehouse loads. The 4-way entry design also simplifies movement between storage and dispatch areas.
Manufacturing Logistics
The reusable structure can be used for transporting raw materials, components, and finished products between production lines, storage areas, and assembly stations.
Retail Supply Chain
The grid deck provides a stable platform for boxed and packaged products moving through distribution centers, regional warehouses, and retail supply chains.
Food & Beverage
The washable plastic construction and open deck can be used for suitable packaged food and beverage logistics. Material and hygiene requirements should be confirmed according to the specific application.
Export Logistics
The 1200 × 800mm standard footprint can be used for international shipping and containerized cargo handling. Its plastic construction avoids many of the moisture-related issues associated with wooden pallets.
Our Custom Options
Besides existing models, Enlightening Pallet provides customized 9-Leg Plastic Pallet solutions based on cargo weight, handling equipment, and operating conditions.
Size: length, width, height, and fork-entry dimensions
Load: reinforced ribs, increased deck thickness, and structural reinforcement
Material: virgin HDPE/PP, recycled material, or customized material combinations
Additives: UV stabilizer, anti-static agent, flame retardant, toughening agent, and antibacterial additives
Color: blue, black, grey, orange, or custom colors
Surface Design: customized deck opening pattern, anti-slip areas, and safety edges
Tracking: pre-embedded RFID chips for pallet identification and logistics tracking
Marking: serial numbers, barcodes, QR codes, LOGO printing, or heat transfer
Accessories: pallet collars, separator boards, and other customized components
FAQ
Q1: What is the load capacity of the 1200 x 800mm pallet?
This model supports up to 1000kg dynamic load and 4000kg static load under the specified test conditions. Actual capacity depends on load distribution, support conditions, handling equipment, and operating environment.
Q2: Is this 9-leg plastic pallet suitable for forklifts?
Yes. The pallet uses a 4-way entry design, allowing forklifts and compatible pallet handling equipment to access it from four directions.
Q3: What is the difference between a grid deck and a flat deck?
A grid deck uses openings across the pallet surface to reduce material weight and improve drainage and ventilation. A flat deck provides a more continuous surface for small or irregular products and applications requiring greater deck coverage.
Q4: Can the 1200 x 800mm pallet be used repeatedly?
Yes. Its one-piece plastic construction is designed for reusable logistics and material handling applications. Service life depends on cargo weight, handling frequency, temperature, impact, and operating conditions.
Q5: Can the pallet be customized with a different size or color?
Yes. Size, color, material formulation, deck structure, reinforcement, marking, RFID, and other specifications can be customized according to the application and order requirements.
Additional Information
| Weekly Output Capacity | 100,000 pcs/week |
| Sample Availability | Free (Freight at Buyer’s Expense) |
| Standard Lead Time | 7–15 business days |
| Custom Order Lead Time | 20–30 business days, depending on design and mold requirements |
| Shipping Ports | Qingdao, Shanghai, and other options |
| Export Capability | Global delivery supported |
| MOQ | 300 pcs |
Payment & Delivery Information
- Payment
T/T (Telegraphic Transfer): Commonly used for bulk orders, with payment terms confirmed according to the order.
L/C (Letter of Credit): Available for qualified larger orders upon agreement.
Other Payment Methods: Available for smaller orders or specific purchasing requirements. - Production Lead Time
Standard Orders: 7–15 business days, depending on order quantity and production schedule.
Custom Orders: 20–30 business days, depending on customization requirements and mold/design confirmation. - Delivery
Sea Freight: Suitable for bulk plastic pallet orders and international shipments, with the final transit time depending on the destination port and shipping route.
