Product Specification
| Materials | HDPE / PP |

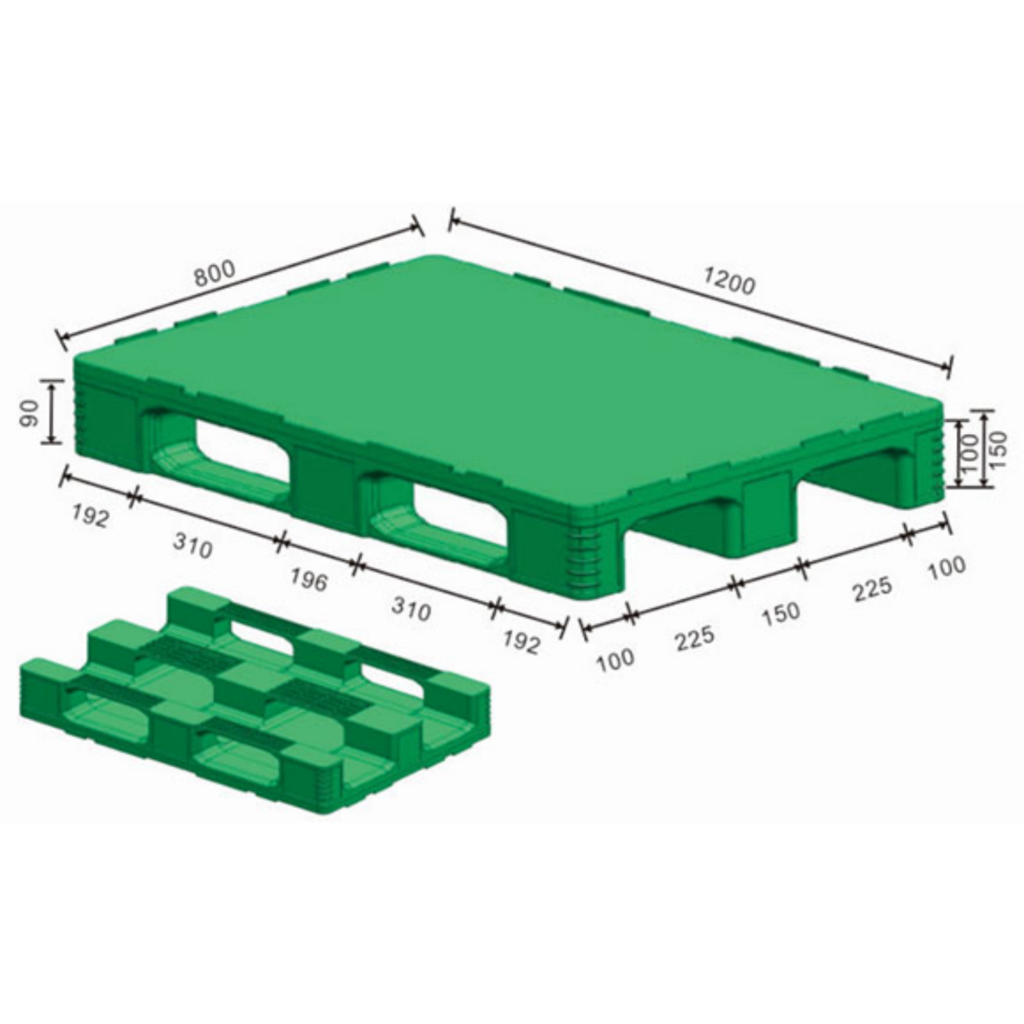

| Dimensions (L×W×H mm) | 1200 × 800 × 150 |
| Processes | Injection Molding + Welding |
| Weight | 15 kg |
| Reinforcement Bars | 5 Steel Tubes / 5.4 kg |
| Base | Welded Structure |
| Top Deck | Solid Flat Top |
| Forklift | 4-Way Entry |
| Pallet Jack | 4-Way Entry |
| Rackable | Yes |
| Stackable | Yes |
| Hygienic | Yes |
| Reusable | Yes |
| Logo / Printing | Yes |
| Static Capacity | Up to 6000 kg |
| Dynamic Capacity | Up to 2000 kg |
| Rack Capacity | Up to 1500 kg |
| Usage Temperature | -40℃ to 70℃ |
| Color | Green, Blue, Black, Grey, Custom |
Product Advantages
Solid Flat Top
The closed flat deck creates a continuous loading surface for cartons, bags, boxes, and industrial products. Compared with open-grid decks, the solid surface provides more consistent contact for small or irregular packages.
Welded Base Structure
The pallet uses a welded connection between the deck and base structure, creating an integrated load-bearing frame. This construction is particularly suitable for repeated forklift handling and warehouse circulation.
Five-Tube Reinforcement
Up to 5 steel reinforcement tubes can be incorporated into the pallet, adding approximately 5.4kg to the pallet weight. The reinforced version reaches 6000kg static, 2000kg dynamic, and 1500kg racking capacity under specified conditions.
Rackable Load Support
The reinforced structure is designed for warehouse racking applications, providing additional support when the pallet is stored across rack beams. It is suitable for distribution centers and industrial warehouses where floor stacking alone is not sufficient.
Distinct Green Design
The green color provides immediate visual identification in warehouse operations and can be used to distinguish specific product flows, production areas, returnable packaging systems, or customer-owned pallet pools.
1200 × 800 Footprint
The 1200 × 800mm European-size footprint provides a practical balance between cargo coverage and handling efficiency. Its compact width is suitable for warehouse aisles, production lines, and standard material-handling equipment.
Four-Way Entry
The 4-way forklift and pallet jack entry allows operators to approach the pallet from different directions, reducing positioning restrictions during loading, unloading, and internal transportation.
Reusable Construction
Made from durable plastic, the pallet is resistant to moisture and does not absorb water like untreated wood. Its reusable structure is suitable for repeated movement between production, storage, and distribution locations.
Typical Applications
Warehouse Racking
The reinforced 1200 × 800mm rackable pallet provides stable support for goods stored on warehouse rack beams, particularly where consistent pallet dimensions are required.
Manufacturing Logistics
The flat deck supports components, cartons, and production materials moving between manufacturing lines, temporary storage areas, and finished-goods warehouses.
Industrial Packaging
The solid top provides continuous support for packaged products and containers that may not sit securely on a grid deck.
Distribution Centers
The 4-way entry structure allows efficient forklift and pallet-jack handling during receiving, sorting, storage, and outbound distribution.
Returnable Transport
The reusable plastic construction makes this pallet suitable for closed-loop logistics where pallets repeatedly circulate between suppliers, factories, warehouses, and customers.
Our Custom Options
Besides the existing 1200 × 800 Flat Top Welded Rackable Plastic Pallet, Enlightening Pallet provides customized solutions according to cargo weight, storage conditions, and handling equipment.
Size: length, width, height, fork entry height
Load: additional steel tubes, thicker structure, reinforced ribs
Material: virgin HDPE/PP, recycled material ratio adjustment
Additives: flame retardant, anti-static agent, UV absorber, toughening agent, antibacterial agent
Color: green, blue, black, grey, or custom colors
Surface: anti-slip pads, anti-slip patterns, safety rims
Tracking: embedded RFID chips
Marking: serial numbers, barcode, QR code, logo printing or heat transfer
Accessories: pallet collars, separator boards, and other handling accessories
FAQ
Q1: What makes this pallet different from a grid deck pallet?
Its solid flat top and welded base provide a continuous loading surface and integrated structural connection, making it suitable for products that require more consistent deck support.
Q2: Can the green pallet be used on warehouse racks?
Yes. The pallet is designed as a rackable model, and the reinforced version can provide up to 1500kg racking capacity under specified test conditions.
Q3: How many steel reinforcement tubes can be installed?
This model can be reinforced with 5 steel tubes, adding approximately 5.4kg to the pallet and increasing its load capacity for demanding warehouse applications.
Q4: What is the maximum static load?
The reinforced pallet supports up to 6000kg static load, while the specified dynamic capacity is up to 2000kg and racking capacity up to 1500kg.
Q5: Why is this pallet available in green?
The green finish can be used for visual identification and pallet-pool management, such as separating production areas, material categories, returnable packaging flows, or customer-specific logistics systems.
Q6: Is the flat deck suitable for small packages?
Yes. The solid deck eliminates large openings across the loading surface, providing more continuous support for cartons, bags, containers, and smaller packaged products.
Additional Information
| Weekly Output Capacity | 100,000 pcs/week |
| Sample Availability | Free (Freight at Buyer’s Expense) |
| Lead Time | 15 days after 50% deposit |
| Shipping Ports | Qingdao, Shanghai, and other options |
| Export Capability | Global delivery supported |
| MOQ | 300 pcs |
