Basic Product Specifications
| Specifications | Details |
|---|---|
| Product Type | Welded Flat Double-Sided Plastic Pallet |

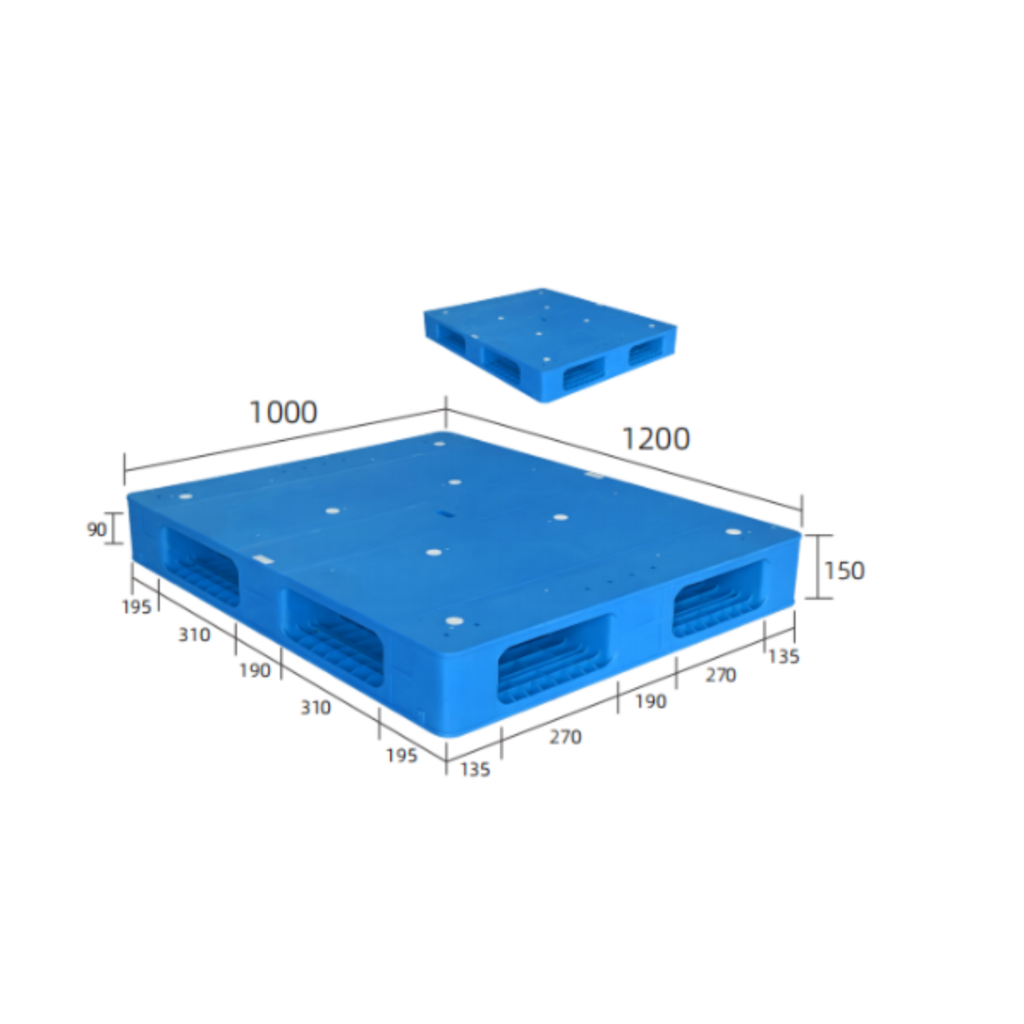

| Dimensions (L×W×H mm) | 1200 x 1000 x 150 |
| Material | Plastic with Optional Steel Reinforcement |
| Structure | Double-Sided |
| Top Deck | Flat Deck |
| Pallet Weight | Approx. 23 kg |
| Manufacturing Process | Welding |
| Steel Reinforcement | Optional |
| Steel Tube Arrangement | Up to 6 Top + 6 Bottom |
| Dynamic Capacity | Up to 1,500 kg |
| Static Capacity | Up to 6,000 kg |
| Racking Capacity | Up to 1,000 kg with Reinforcement |
| Application | Warehousing, Logistics, Manufacturing, Heavy Loads |
| Color | Customizable |
| Logo / Printing | Customizable |
Main Features of 1200 x 1000 Welded Flat Double-Sided Plastic Pallet
1. Double-Sided Flat Deck
The pallet uses a flat deck on both sides, allowing the upper and lower surfaces to provide continuous support for different handling configurations. This double-sided structure makes the pallet suitable for applications requiring a reversible platform and stable contact with cartons, containers, drums, or other unit loads.
2. Welded Structural Design
Unlike one-piece lightweight pallets, this model uses a welded construction to form a reinforced pallet structure. The welded design provides a rigid connection between pallet components and is suitable for repeated handling in warehouses, manufacturing facilities, and logistics operations.
3. 23 kg Heavy Structure
With a weight of approximately 23 kg, this 1200 x 1000 mm pallet is designed for heavier-duty applications where additional structural strength is required. The combination of a 23 kg body and 6,000 kg static capacity provides a higher-strength configuration for concentrated warehouse loads.
4. Steel Tube Reinforcement
The pallet can be equipped with steel reinforcement tubes, with up to 6 tubes on the upper side and 6 on the lower side. This reinforcement system can increase structural stability and support applications requiring up to 1,000 kg racking capacity.
5. 6 Ton Static Load
The pallet supports up to 6,000 kg static load capacity under the specified configuration and conditions. This makes it suitable for heavy goods storage and stationary stacking where the pallet remains properly supported and the load is evenly distributed.
6. 1.5 Ton Dynamic Load
The standard load specification provides up to 1,500 kg dynamic capacity, making the pallet suitable for forklift and pallet-handling operations involving heavy industrial goods. Actual dynamic performance depends on load distribution, handling equipment, speed, and operating conditions.
Applications of Double-Sided Plastic Pallet
1. Heavy Goods Storage
The 6,000 kg static capacity makes this pallet suitable for heavy goods stored on warehouse floors or in stacked configurations. It can be used for industrial components, machinery parts, packaged materials, and other high-load applications requiring a rigid pallet platform.
2. Warehouse Racking
With optional steel reinforcement, the pallet provides up to 1,000 kg racking capacity for supported warehouse storage systems. Before use in pallet racks, the required rack beam spacing, load distribution, and support conditions should be confirmed.
3. Industrial Logistics
The 1,500 kg dynamic capacity supports repeated movement of heavy loads between production lines, warehouses, staging zones, and shipping areas. The double-sided structure provides a stable platform for industrial packaging and returnable transport operations.
4. Manufacturing Operations
Manufacturing facilities can use the pallet for automotive parts, machinery components, metal products, and other industrial materials. The 1200 x 1000 mm footprint provides a large loading platform while the reinforced structure supports higher-weight goods.
5. Returnable Transport
The welded plastic structure is suitable for reusable logistics systems where pallets move repeatedly between factories, warehouses, and distribution locations. The 23 kg pallet weight provides a balance between structural reinforcement and routine pallet handling.
Customization Options
The 1200 x 1000 Welded Flat Double-Sided Plastic Pallet can be customized according to your load and handling requirements.
Available options include:
- Steel tube reinforcement with different reinforcement configurations
- Up to 6 top + 6 bottom steel tubes according to the required load
- Custom pallet colors
- Logo printing
- Structural modifications
- Customized packaging, including stretch film and cartons
For racking applications, please provide the cargo weight, rack beam spacing, rack load requirement, and handling conditions so the reinforcement configuration can be selected correctly.
FAQs
1. What makes this pallet different from a standard double-sided plastic pallet?
Its key difference is the combination of a welded structure, flat double-sided deck, 23 kg weight, and optional 12-tube reinforcement configuration. It is designed for heavier-duty applications rather than lightweight one-way logistics.
2. How much weight can the pallet support?
The supplied specification lists up to 1,500 kg dynamic capacity and 6,000 kg static capacity. With the reinforced configuration, the pallet can provide up to 1,000 kg racking capacity under the specified rack conditions.
3. How many steel tubes can be added?
The structure can use up to 6 reinforcing steel tubes on the top side and 6 on the bottom side, giving a maximum of 12 reinforcement tubes according to the supplied configuration.
4. Is this pallet suitable for pallet racking?
Yes. The reinforced configuration is designed for racking applications with a listed capacity of up to 1,000 kg. Rack beam spacing, load distribution, and support conditions should be confirmed before installation.
5. Why is the pallet welded instead of injection molded as one piece?
The welded construction allows the pallet structure to be assembled and reinforced according to specific load requirements. This makes it possible to configure additional steel reinforcement for applications requiring higher static or racking performance.
6. What is the size and weight of this plastic pallet?
The pallet measures 1200 x 1000 x 150 mm and weighs approximately 23 kg in the supplied configuration. Additional steel reinforcement may affect the final pallet weight.
