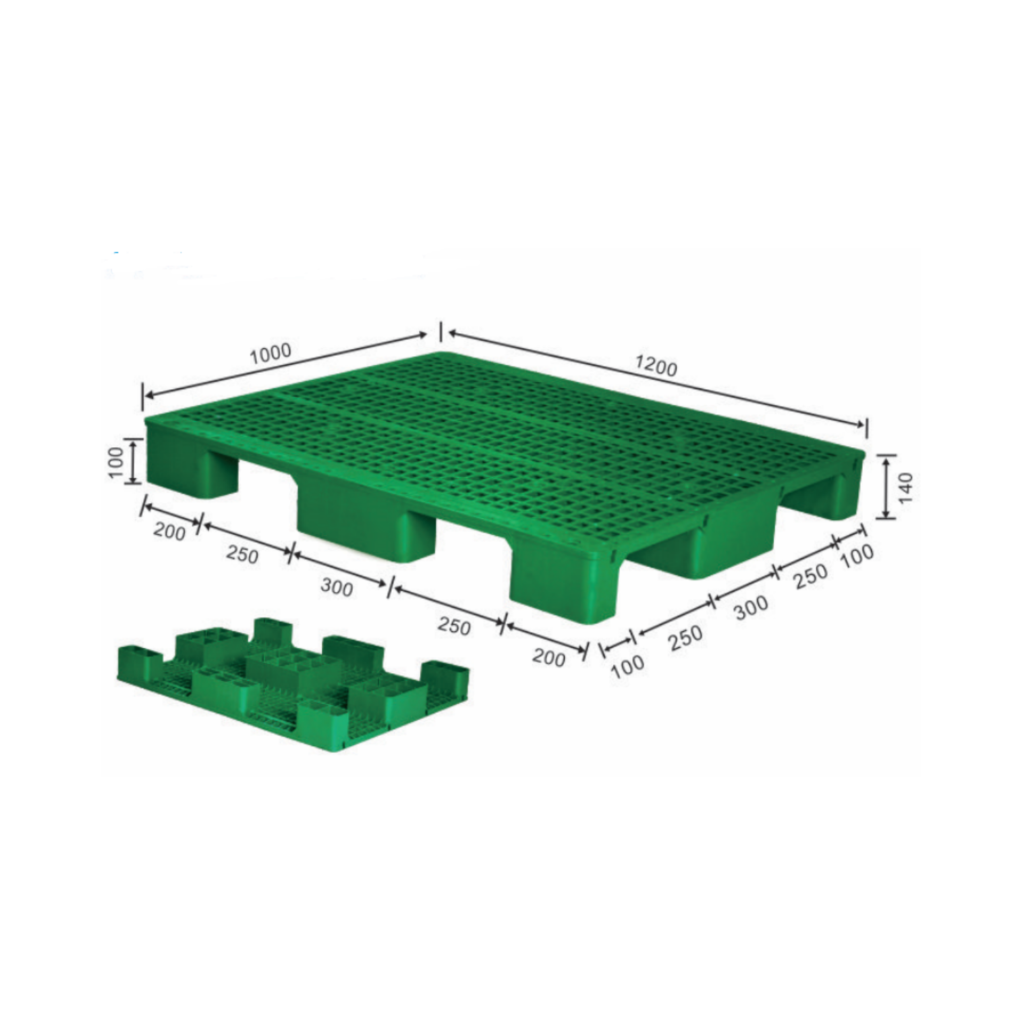

1200 x 1000 Green 9-Leg Grid-Top Plastic Pallet

Basic Product Specifications

Main Features of 9-Leg Grid-Top Plastic Pallet

1. Lightweight 12.4 kg

At approximately 12.4 kg, this pallet is designed for customers who need a lower pallet tare weight without moving to a smaller pallet footprint. The combination of a 1200 x 1000 mm size and 12.4 kg weight helps reduce the amount of pallet weight carried throughout storage and transportation.

2. Nine-Leg Stable Base

The pallet uses a 9-leg support structure distributed across the 1200 x 1000 mm base. This design provides multiple support points between the pallet and the floor while keeping the overall structure relatively lightweight, making it suitable for general warehouse handling and export logistics.

3. Ventilated Grid Deck

The grid-top surface provides ventilation openings across the pallet deck, which can be useful for applications requiring airflow around packaged goods. Compared with a completely solid deck, the grid structure also reduces material usage, contributing to the pallet’s 12.4 kg overall weight.

4. One-Piece Molded Structure

The pallet is manufactured as a one-piece injection-molded structure, eliminating welded assembly between the main pallet components. This integrated construction provides a consistent 9-leg layout and simplifies the pallet structure for repeated handling and circulation.

5. 6 Ton Reinforced Load

For higher load requirements, the pallet can be fitted with 3 steel reinforcing bars, adding approximately 3 kg to the pallet. With reinforcement, load capacity can reach approximately 1,500 kg dynamic and 6,000 kg static, making the same 1200 x 1000 mm platform suitable for heavier applications.

6. High Container Efficiency

The lightweight structure is particularly useful for export shipping. Approximately 200 pallets can be loaded into a 20FT container and 500 pallets into a 40HQ container, helping buyers plan pallet quantities and container utilization more efficiently.

Applications of 9-Leg Plastic Pallet

1. Export Transportation

The 12.4 kg pallet weight makes this model suitable for export packaging where pallet tare weight and container utilization affect total logistics cost. With approximately 200 pcs per 20FT and 500 pcs per 40HQ, it can be used for large-volume international pallet shipments.

2. Warehouse Storage

The 1200 x 1000 mm footprint provides a practical loading platform for cartons, bags, and packaged industrial goods. The 9-leg base provides distributed floor support, while the 4,000 kg static capacity is suitable for stationary storage under appropriate loading conditions.

3. General Logistics

The pallet can be used for recurring movement between warehouses, production areas, loading zones, and distribution centers. The 1,000 kg standard dynamic capacity provides support for routine material handling, while reinforced versions can be selected for loads up to 1,500 kg dynamically.

4. Food And Beverage

The ventilated grid deck can be used where airflow around packaged products is beneficial. The pallet’s plastic structure is suitable for logistics operations involving packaged food, beverages, and other products that require a cleanable and reusable transport platform.

5. Returnable Logistics

For supply chains using reusable pallets, the one-piece molded construction provides a straightforward platform for repeated circulation. Customers handling heavier return loads can add 3 steel bars and increase the specified load capacity to 1.5 tons dynamic and 6 tons static.

Customization Options

The 1200 x 1000 Green 9-Leg Grid-Top Plastic Pallet can be customized according to your logistics and load requirements.

Available options include:

• 3 steel reinforcement bars for higher load capacity
• Custom colors instead of the standard green
• Logo printing and pallet identification
• Packaging with stretch film or cartons
• Custom structural configurations for specific applications

For load-critical applications, please confirm the cargo weight, loading method, support conditions, and required dynamic/static capacity before selecting the reinforced configuration.

FAQs

1. How much does the 1200 x 1000 9-leg pallet weigh?

The standard pallet weighs approximately 12.4 kg. When fitted with the optional 3 steel reinforcing bars, the reinforcement adds approximately 3 kg.

2. How much weight can the pallet hold?

The standard configuration is specified at 1,000 kg dynamic and 4,000 kg static capacity. With 3 steel reinforcing bars, the specified capacity increases to approximately 1,500 kg dynamic and 6,000 kg static.

3. How many pallets fit in a container?

Approximately 200 pallets can be loaded into a 20FT container, while a 40HQ container can hold around 500 pallets, depending on the actual loading and packaging method.

4. What is the advantage of the 9-leg grid-top design?

The 9-leg structure provides multiple floor support points, while the ventilated grid deck reduces material usage and allows airflow through the pallet surface. Together, these features help keep the pallet weight at approximately 12.4 kg.

5. Can steel reinforcement be added?

Yes. The pallet can be fitted with 3 steel reinforcing bars, adding about 3 kg to the pallet and providing the specified reinforced capacity of up to 1,500 kg dynamic and 6,000 kg static.

6. Is the pallet suitable for export shipping?

Yes. Its 1200 x 1000 mm footprint, 12.4 kg weight, and high container loading quantity make it suitable for export logistics. Approximately 200 units can be loaded into a 20FT container and 500 units into a 40HQ container.
