Basic Product Specifications
| Specification | Details |
|---|---|
| Product Model | Y1111PQA |
| Material | Plastic; specific resin grade available on request |

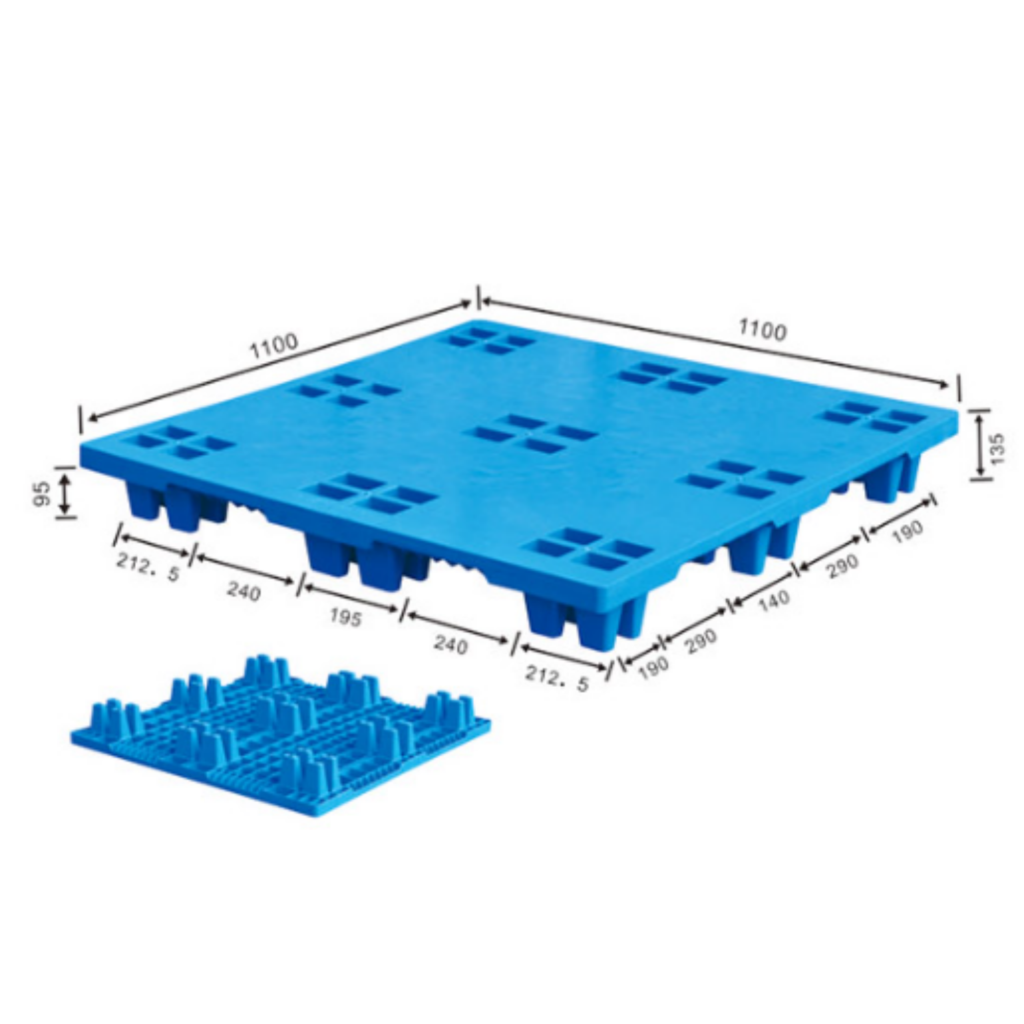

| Dimensions (L × W × H) | 1100 × 1100 × 135 mm |
| Structure | Single-Sided, One-Piece Molded |
| Top Deck | Flat Top Deck |
| Base | 9 Legs |
| Process | One-Piece Injection Molding |
| Weight | 9.3 kg (±5%) |
| Reinforcement Bars | N/A |
| Static Capacity | 1500 kg |
| Dynamic Capacity | 500 kg |
| Racking Capacity | N/A |
| Forklift Entry | 4 Way |
| Pallet Jack Entry | 4 Way |
| Ground Use | Yes |
| Nestable | Yes |
| Export Use | Yes |
| Rackable | No |
| Reusable | Yes, subject to operating conditions |
| Color | Blue, Custom |
| Logo / Printing | Available |
| 20FT Container Quantity | 410 pcs |
| 40HC Container Quantity | 1050 pcs |
| Usage Temperature | Confirm according to the selected material and operating environment |
| Quality Documentation | Available according to material and project requirements |
Why Choose Our 1100 x 1100 9-Leg Lightweight Plastic Pallet?
Space-Saving Nestable Design Reduces Storage and Transport Costs
The nine-leg base allows empty pallets to nest together, reducing the space required for storage and return transportation. Compared with conventional non-nestable pallets, more empty units can be organized within the same warehouse area or vehicle.
This helps improve space utilization, simplify empty-pallet management and reduce the logistics cost associated with storing or transporting pallets after unloading.
Lightweight 9.3 kg Structure Improves Daily Handling Efficiency
At approximately 9.3 kg, model Y1111PQA is designed with practical daily handling in mind. Its lightweight construction makes empty pallets easier to lift, reposition, sort and organize during warehouse and distribution operations.
The lower pallet weight can also help reduce unnecessary non-payload weight in logistics processes where pallets are transported together with the goods.
Flat Single-Sided Deck Provides Stable Load Support
The flat top deck provides a broad and consistent loading surface for cartons, boxes, bags and other packaged products.
Compared with heavily ventilated pallet decks, the flatter surface offers more continuous support beneath smaller packages and helps reduce the possibility of packaging edges becoming caught in large deck openings.
The single-sided structure is suitable for straightforward ground-level transportation, staging and warehouse handling applications.
Four-Way Entry Supports Flexible Material Handling
The nine-leg base provides four-way access for both forklifts and pallet jacks. Operators can approach the pallet from different directions without repeatedly changing its position.
This supports more efficient loading, unloading and internal material movement in warehouses, manufacturing facilities and distribution centers.
Fork dimensions, pallet jack wheel positions and entry clearances should be checked before bulk ordering to ensure compatibility with the customer’s handling equipment.
One-Piece Injection-Molded Structure Improves Consistency
Model Y1111PQA is manufactured through one-piece injection molding, forming the deck and base as an integrated structure without separate assembly points.
This manufacturing method supports consistent dimensions and dependable performance during routine handling. The non-reinforced design also keeps the pallet lightweight and straightforward for general ground-use logistics.
Its plastic construction resists moisture absorption and contains no nails or splinters, making it easier to maintain than conventional wooden pallets.
Applications of 1100 x 1100 Lightweight Plastic Pallet
Warehouse and Distribution Handling
The square 1100 x 1100 mm footprint provides a balanced loading area for cartons, boxes, bags and packaged general cargo.
Its lightweight structure and four-way entry support frequent movement between receiving, staging, picking and dispatch areas. The flat deck also provides consistent support for loads with smaller contact surfaces.
Manufacturing and Internal Material Transfer
Manufacturers can use this pallet to move components, packaging materials, work-in-process goods and finished products between production and storage areas.
The one-piece plastic structure provides repeatable dimensions for routine internal logistics, while the nine-leg base allows handling equipment to approach the pallet from multiple directions.
One-Way Export and General Cargo Shipping
The lightweight and nestable design makes model Y1111PQA a practical option for one-way export shipments where controlling pallet cost and transportation weight is important.
Plastic pallets do not require the fumigation treatment associated with wooden pallets, helping simplify preparation for international shipping. After unloading, empty pallets can be nested to reduce the space required for storage or onward collection.
The pallet is suitable for cartons, packaged industrial products, bags and other general cargo within its specified load limits.
Please note that model Y1111PQA is designed for ground use rather than unsupported pallet racking. Actual load performance depends on load distribution, handling method, operating temperature, support conditions and the selected plastic material.
Additional Information
| Item | Details |
|---|---|
| MOQ | 300 pcs; final quantity confirmed with quotation |
| Weekly Output Capacity | Confirmed according to order quantity and production schedule |
| Sample Availability | Available on request |
| Lead Time | Generally 15 days after order confirmation; subject to quantity and customization |
| Shipping Ports | Shanghai, Qingdao or other nominated Chinese ports |
| Export Capability | International shipping arrangements available |
| Customization | Color, logo and printing options available upon request |
Payment & Delivery Information
Payment
T/T: Commonly used for production orders. Deposit and balance terms will be confirmed in the formal quotation.
L/C: Available for qualifying orders, subject to order value and commercial review.
Other Payment Methods: Confirm available payment options with the sales team before placing an order.
Production Lead Time
Standard Orders: Production time is normally confirmed according to order quantity, selected color, inventory and the current production schedule.
Customized Orders: Lead time will be confirmed after the logo, color, material, packaging and other customization requirements have been finalized.
Delivery
Sea Freight: Suitable for volume orders and international pallet shipments. The freight method, loading plan, Incoterms, destination port and estimated transit time will be confirmed in the quotation.
