Basic Product Specifications
| Specification | Details |
|---|---|
| Product Model | 1111-B |
| Internal Reference Number | 483 |
| Material | PE |
| Dimensions (L × W × H) | 1100 × 1100 × 150 mm |
| Structure | Single-Sided, Rib-Reinforced |
| Top Deck | Flat Top Deck |
| Base | 9 Legs |
| Manufacturing Process | Compression Molding |
| Plastic Weight | 17 kg (approximately ±0.5 kg) |
| Reinforcement Structure | Integrated Molded Reinforcing Ribs |
| Steel Reinforcement Bars | N/A |
| Static Capacity | 3000 kg |
| Dynamic Capacity | 1500 kg |
| Racking Capacity | N/A |
| Forklift Entry | 4 Way |
| Pallet Jack Entry | 4 Way |
| Ground Use | Yes |
| Nestable | Yes |
| Rackable | No |
| Reusable | Yes, subject to operating conditions |
| Color | Black, Custom |
| Logo / Printing | Available upon request |
| Place of Origin | Ningbo, China |
| 20FT Container Quantity | Confirm with quotation |
| 40HQ Container Quantity | 1200 pcs |
| Usage Temperature | Confirm according to material grade and operating environment |
| Quality Documentation | Available according to order and project requirements |

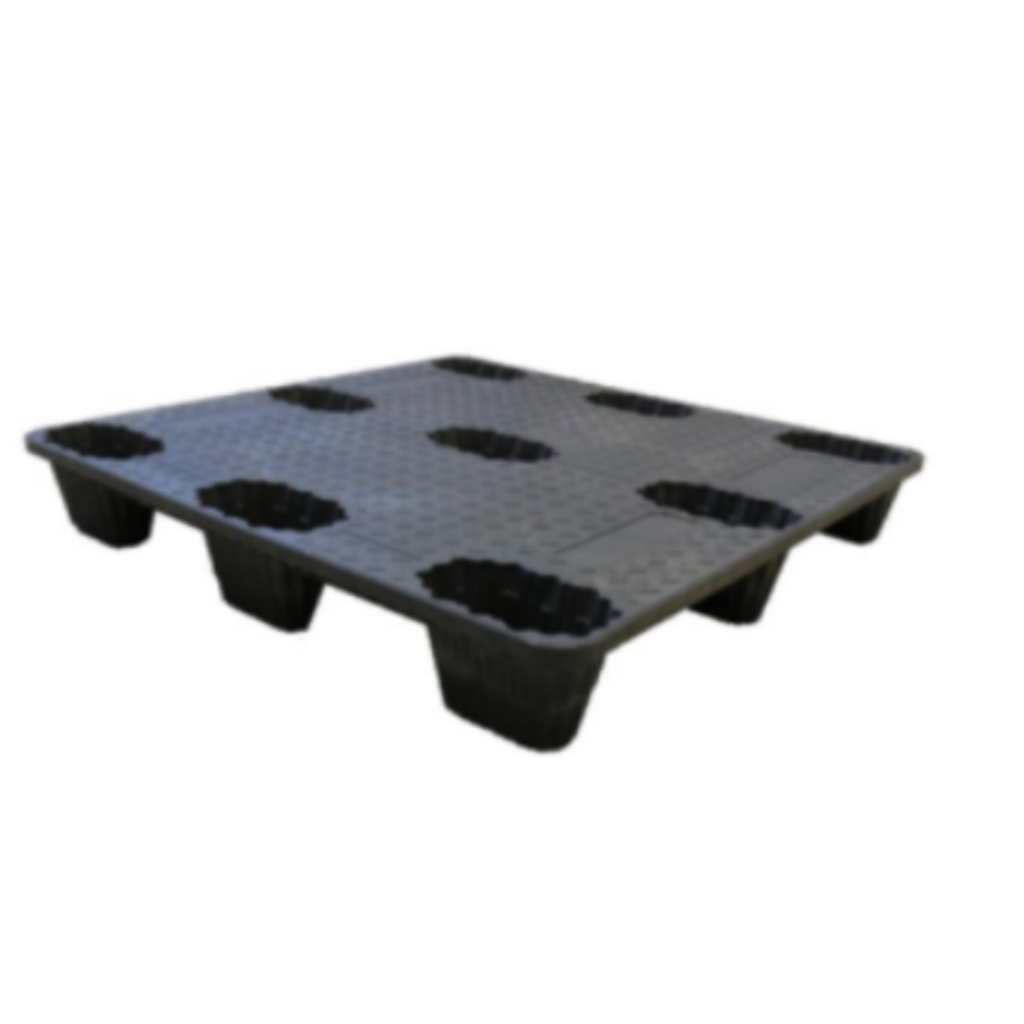

Why Choose Our 1100 x 1100 Reinforced Compression-Molded Plastic Pallet?
Rib-Reinforced Structure Improves Pallet Stability
Model 1111-B features integrated reinforcing ribs within its molded plastic structure. These ribs help distribute stress across the pallet deck and improve structural rigidity during stacking, transportation and repeated warehouse handling.
The reinforced design is formed directly into the pallet rather than relying on additional steel tubes. This keeps the construction straightforward while avoiding the additional weight and potential corrosion concerns associated with exposed metal reinforcement.
Compression-Molded Construction Supports Consistent Performance
The pallet is manufactured using a compression-molding process that forms the PE material into a dense and integrated structure.
Compared with pallets assembled from multiple separate components, the molded construction reduces additional connection points and supports consistent dimensions. It provides practical impact and load performance for regular industrial logistics operations.
1500 kg Dynamic and 3000 kg Static Load Capacity
Under specified test conditions, the pallet supports a dynamic load of up to 1,500 kg and a static load of up to 3,000 kg.
This makes it suitable for moving and storing cartons, bags, packaged industrial components and other evenly distributed goods on supported floors. Actual allowable loads should always be evaluated according to the goods, load distribution and handling method.
The pallet is not designed for unsupported racking because no racking-load rating is specified.
Nestable Nine-Leg Base Saves Empty-Pallet Space
The nine-leg structure allows empty pallets to nest together when they are not in use. Compared with conventional non-nestable pallets, this design reduces the vertical space required for empty-pallet storage and transportation.
Up to 1,200 pallets can be loaded into a 40HQ container according to the supplied product information. This makes the pallet a practical option for export projects, return logistics and operations that regularly store large quantities of empty pallets.
Flat Deck Provides Stable Support for Packaged Goods
The flat top deck provides a broad and consistent loading surface for cartons, boxes, bags, drums and other packaged products.
Compared with heavily ventilated deck designs, the flatter surface provides more continuous support beneath smaller packages. It can also help prevent packaging edges from becoming caught in large deck openings during loading and unloading.
Four-Way Entry Supports Flexible Material Handling
The nine-leg base provides four-way access for forklifts and pallet jacks. Operators can approach the pallet from different directions without repeatedly changing its position.
This supports more efficient loading, unloading and internal material transfer in manufacturing plants, warehouses and distribution facilities.
Fork dimensions, pallet jack wheel positions and entry clearances should be checked before bulk ordering.
Plastic Construction Simplifies Export and Maintenance
The PE construction resists moisture absorption and avoids common wooden-pallet problems such as nails, splinters, insect damage and mold caused by absorbed moisture.
Plastic pallets do not require the fumigation treatment associated with wooden pallets, making them a practical option for international transportation.
The pallet surface can also be cleaned more easily than unfinished wood. The required cleaning method and chemical compatibility should be confirmed according to the selected material grade.
Applications of 1100 x 1100 Reinforced Nestable Plastic Pallet
Manufacturing and Internal Material Transfer
Manufacturers can use model 1111-B to move raw materials, components, packaging materials, work-in-process goods and finished products between production and storage areas.
Its reinforced molded structure provides practical load performance, while the four-way nine-leg base supports flexible forklift and pallet jack handling.
Warehouse Floor Storage and Distribution
The 1100 x 1100 mm square footprint provides a balanced loading area for cartons, boxes, bags and other packaged goods.
The flat deck provides consistent load contact, while the 3,000 kg static capacity supports evenly distributed goods stored on a level floor. The pallet is suitable for receiving, staging, order preparation and dispatch operations.
Export and One-Way Transportation
The nestable design makes this pallet suitable for export projects where empty-pallet storage and container utilization are important.
After unloading, empty pallets can be nested together to reduce the space required for collection, storage or onward transportation. Its plastic construction also avoids the fumigation requirements associated with wooden pallets.
Chemical and Electronics Logistics
The reinforced flat deck can support packaged materials, components and finished products used in chemical, electronics and general industrial supply chains.
Material compatibility should be evaluated when the pallet may be exposed to concentrated chemicals, unusual temperatures or specialized cleaning processes.
Additional Information
| Item | Details |
|---|---|
| MOQ | 300 pcs |
| Weekly Output Capacity | Confirmed according to order quantity and production schedule |
| Sample Availability | Available upon request |
| Lead Time | Confirmed according to order quantity and customization requirements |
| Shipping Port | Ningbo or other nominated Chinese ports |
| Export Capability | International shipping arrangements available |
| Color Customization | Available |
| Logo / Printing | Available according to order requirements |
| Packaging Method | Confirmed according to quantity and shipping method |
Payment & Delivery Information
Payment
T/T: Commonly used for production orders. Deposit and balance terms will be confirmed in the formal quotation.
L/C: Available for qualifying orders, subject to order value and commercial review.
Other Payment Methods: Confirm available options with the sales team before placing an order.
Production Lead Time
Standard Orders: Production time will be confirmed according to order quantity, selected color, inventory and the current manufacturing schedule.
Customized Orders: Lead time will be confirmed after the color, logo, material, packaging and other requirements have been finalized.
Delivery
Sea Freight: Suitable for volume orders and international pallet shipments. Freight method, container plan, Incoterms, destination port and estimated transit time will be confirmed in the quotation.
