Basic Product Specifications
| Specification | Details |
|---|---|
| Product Model | ENL-B-1008 |
| Dimensions (L × W × H) | 1000 x 800 x 146 mm |
| Footprint | 0.8 m² |
| Structure | Single-Sided / Single-Deck |
| Top Deck | Open Grid / Mesh Deck |
| Plastic Weight | 7.1 kg |
| Base | 9 Feet |
| Forklift Entry | 4-Way Entry |
| Pallet Jack Compatibility | Confirm fork dimensions and wheel clearance for the actual equipment |
| Floor Storage | Intended for floor-supported storage under appropriate loading conditions |
| Loaded Stacking | Requires a separate assessment of the complete loaded stack |
| Rackable | No racking capacity specified; not offered as a rack-rated pallet on the available data |
| Steel Reinforcement | None in the listed configuration |
| Static Capacity | Up to 3,000 kg without steel reinforcement |
| Dynamic Capacity | Up to 800 kg without steel reinforcement |
| Rack Capacity | Not specified |
| Construction | One-Piece Structure |
| Material | Confirm polymer and formulation for the quoted version |
| Color Shown | Blue |
| Container Loading Reference | 600 / 1,450 pieces; matching container types and packing arrangements to be confirmed |
| Origin | Shanghai, China |
Specification Note: Load capacities are reference figures for the illustrated configuration. Confirm the load distribution, floor support, handling equipment and operating conditions before use. The 0.8 m² figure is calculated from the external footprint; it is not the solid contact area of the open-grid deck.
Main Features of the 1000 x 800 Single-Sided Plastic Floor Pallet
1. 7.1 kg Ultra-Lightweight Construction
With a plastic weight of 7.1 kg per pallet, this model keeps pallet tare weight low for operations that frequently reposition empty pallets or move packaged goods between storage and dispatch areas.
The lightweight configuration provides an alternative to selecting a heavier pallet when the application only requires floor-supported storage and handling within the stated capacity. Buyers can use the 7.1 kg unit weight when planning pallet inventory, shipment weight and empty-pallet handling.
2. Compact 1000 x 800 mm Footprint
The 1000 x 800 mm dimensions provide a 0.8 m² rectangular footprint for arranging cartons, packages and compatible containers. This size can be considered for loads that do not require a larger pallet platform.
Matching the load to the pallet footprint helps avoid unnecessary unused deck space and product overhang. Carton dimensions, the packing pattern and the position of the load should be checked against the 1000 mm length and 800 mm width before ordering.
3. Up to 800 kg Dynamic Load Capacity
The unreinforced configuration has a listed dynamic capacity of up to 800 kg, providing a defined starting point for evaluating loaded movement within a warehouse or distribution operation.
This capacity relates to handling, rather than stationary floor storage. The actual load arrangement, fork support and movement conditions must match the approved application. The 800 kg dynamic figure should be used for the relevant handling review—not the higher static capacity.
4. Up to 3,000 kg Static Capacity with a 9-Foot Base
The pallet has a listed static capacity of up to 3,000 kg for the unreinforced configuration. Its 9 support feet form the base for transferring the load to the floor.
For floor-storage applications, all support feet should rest on a suitable, level surface, with the cargo arranged according to the agreed specification. This makes the model relevant to stationary storage requirements where floor support is available, without needing to select a pallet on the basis of a racking rating.
The 3,000 kg static figure is not approval for placing one loaded pallet on top of another.
5. 4-Way Forklift Entry
The pallet provides 4-way entry, allowing forklift access from all four sides. Operators can approach the load from either the 1000 mm side or the 800 mm side, depending on the loading position and available aisle access.
This layout provides flexibility when positioning pallets at receiving areas, production stations and dispatch points. Fork spacing, fork length and entry clearance should still be checked against the equipment used.
Pallet-jack access requires a separate clearance check because its fork and wheel arrangement differs from that of a forklift.
6. One-Piece Structure with an Open-Grid Deck
The 1000 x 800 mm deck and 9-foot base form one integrated structure, rather than an assembly of separate upper and lower pallet sections.
The grid openings provide paths for drainage and airflow where they are not obstructed by the load. For cartons, bags and smaller packages, review how the packaging spans the openings: the deck should support the product without relying on unsupported areas between the grid ribs.
7. 146 mm Overall Height for Raised Floor Storage
With an overall height of 146 mm, the pallet raises its loading surface above the warehouse floor. This provides a defined storage base for packaged goods instead of placing them directly on the floor.
The 146 mm height is also useful when calculating the complete unit-load height for doorway, vehicle and storage clearances. It describes the pallet’s overall height, not the minimum available clearance for forklift forks or pallet-jack wheels.
Applications of the 1000 x 800 Single-Sided Plastic Floor Pallet
Warehouse Floor Storage
The pallet can be evaluated for cartons, boxed components and packaged materials stored on a level warehouse floor. Its 1000 x 800 mm footprint and 3,000 kg reference static capacity provide the initial dimensions and load information needed for selection.
Internal Material Movement
For moving packaged goods between receiving, storage, production and dispatch, the 4-way entry design provides multiple approach directions. Loaded handling should remain within the approved conditions for the 800 kg reference dynamic capacity.
Carton and Packaged-Goods Distribution
The rectangular platform can support carton-based unit loads that fit within the 1000 x 800 mm footprint. Packaging layout, load restraint and deck contact should be reviewed to keep the goods supported during movement.
Manufacturing Work-in-Progress
The pallet can serve as a floor-supported carrier for boxed parts, packaged assemblies and other work-in-progress materials. The 7.1 kg pallet weight is relevant where empty pallets need to be repositioned between work areas.
Dispatch and Shipment Preparation
The pallet provides a defined base for grouping, identifying and securing packaged products before dispatch. Its 146 mm overall height should be included when planning the finished unit-load height.
Light-Duty Export and Transport Applications
For shipping projects requiring a 1000 x 800 mm pallet, this model can be considered where the load and handling route match its specification. Confirm destination requirements, load restraint, equipment access and the final packing arrangement before selecting it for an export shipment.
Customization Options
Enlightening Pallet can review customization requests around the ENL-B-1008 configuration and the requirements of the intended application. Available options, minimum quantities and any tooling requirements should be confirmed in the quotation.
| Customization Area | Options to Discuss |
|---|---|
| Color | Alternative colors for brand identity, ownership or internal identification |
| Logo and Markings | Company logos, product identification or ownership markings |
| Material Specification | Polymer, virgin or recycled content, and formulation appropriate to the intended use |
| Packaging | Empty-pallet packing arrangements and shipment preparation |
| Alternative Dimensions | Selection of another existing size or evaluation of new tooling |
| Different Load Requirements | Review of another configuration or pallet model with supporting performance data |
The illustrated configuration does not list an optional steel-reinforcement version. Projects requiring rack storage, higher handling loads or different equipment interfaces should be reviewed separately rather than assuming that reinforcement can be added to this model.
When requesting a quotation, provide the required quantity, destination, cargo dimensions, maximum weight per pallet, storage method and handling equipment. Include any material, color or marking requirements so the quotation reflects the actual specification.
FAQs
1. What are the dimensions of this single-sided plastic floor pallet?
The pallet measures 1000 x 800 x 146 mm. Its external footprint is 0.8 m², calculated from the length and width. The usable contact pattern depends on the grid deck and the packaging placed on it.
2. How much does the pallet weigh?
The listed plastic weight is 7.1 kg per pallet. The illustrated configuration does not include steel reinforcement. Confirm the final production specification and any additional components when placing an order.
3. What is the load capacity of the 1000 x 800 plastic pallet?
The supplied specification lists up to 800 kg dynamic capacity and up to 3,000 kg static capacity, both without steel reinforcement.
These figures apply to different support and handling conditions. The higher static figure should not be used as the permitted load during forklift movement.
4. Can this plastic floor pallet be used on warehouse racks?
A racking capacity is not provided for this configuration. It should therefore be selected as a floor-storage and handling pallet rather than assumed to support loads across rack beams.
For a racking project, provide the support arrangement, span, load distribution and operating conditions so a suitable rack-rated model can be reviewed.
5. Does the pallet provide four-way entry?

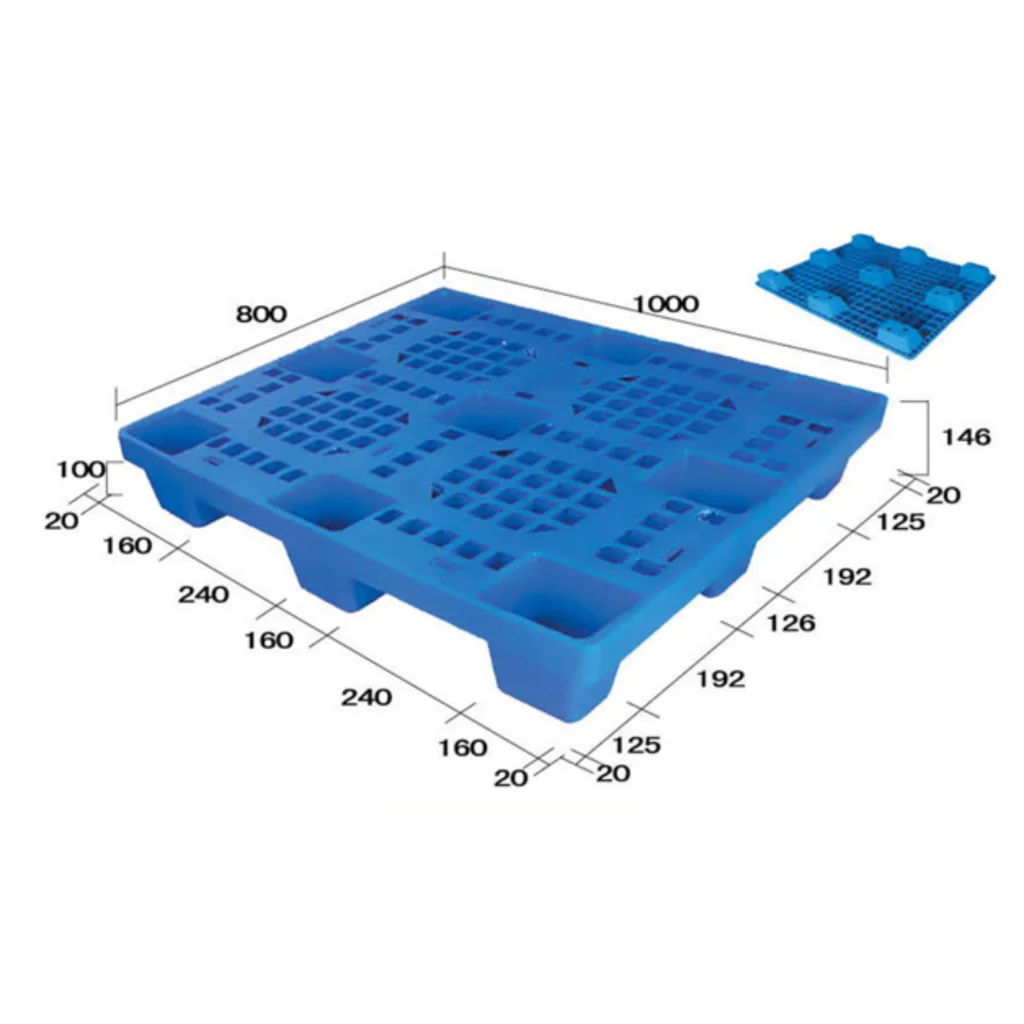

Yes. The product drawing identifies 4-way entry, allowing forklift approach from all four sides.
This does not establish compatibility with every handling device. For a hand or electric pallet jack, confirm fork dimensions, lowered height, wheel travel and clearance between the 9 support feet.
6. Can loaded pallets be stacked on top of each other?
Loaded stacking is not established by the available specification. The 3,000 kg static capacity should not be interpreted as an approved load for a multi-level stack.
The complete stack needs its own assessment, including packaging compression, the contact points of the upper pallet, load restraint and stability. Empty-pallet storage is a separate requirement.
7. What type of deck and construction does the pallet have?
The pallet has an open-grid deck, a 9-foot base and a one-piece structure. It is a single-sided pallet with one loading deck, rather than a double-faced pallet with two deck structures.
8. How many pallets can be loaded into a container?
The supplied catalogue lists 600 and 1,450 pieces as container-loading reference quantities, but the screenshot does not identify the corresponding container types.
Request a confirmed loading plan for the selected container, pallet configuration and packing method before using either quantity in a freight calculation.
9. Where is this plastic pallet manufactured?
The supplied specification identifies the origin as Shanghai, China. The model reference shown in the product drawing is ENL-B-1008.
10. What information is needed for a quotation?
Provide the required quantity, delivery destination, cargo dimensions, maximum load per pallet, storage method and handling equipment.
For this 1000 x 800 x 146 mm model, also confirm the required material and any color or logo requests. Mention racking, loaded stacking or unusual operating conditions before selection so these requirements can be reviewed separately.
