1200×800mm Industrial plastic pallets Model Y1208WHS represent cutting-edge material handling technology featuring grid deck design with 3-runner stringer construction. These industrial plastic pallets combine lightweight 10kg HDPE base with strategic 8-piece steel tube reinforcement system totaling 6kg additional weight for enhanced structural performance.
Manufactured in Jiangsu using advanced one-piece molding technology, these industrial plastic pallets deliver exceptional strength-to-weight ratio ideal for automated warehouse systems and intensive logistics operations. The grid deck design provides superior drainage capabilities while maintaining optimal load distribution across the 1200×800mm platform dimensions.
Load capacity specifications demonstrate versatility with 1T dynamic/4T static capacity without steel reinforcement, expanding to impressive 1.5T dynamic/6T static/1T racking capacity when equipped with integrated steel tube system. This dual-configuration approach makes these industrial plastic pallets suitable for diverse applications from light assembly operations to heavy-duty storage systems.
The 3-runner base configuration ensures compatibility with standard forklift equipment, pallet jacks, and automated guided vehicles while providing excellent structural stability. Container loading efficiency reaches 240-600 pieces depending on stacking configuration, significantly reducing transportation costs and maximizing warehouse storage density.
Industrial plastic pallet Model Y1208WHS feature corrosion-resistant construction ideal for pharmaceutical manufacturing, food processing, chemical handling, and export applications. The grid deck design facilitates air circulation, prevents moisture accumulation, and supports high-pressure cleaning protocols required in regulated industries.
One-piece molding manufacturing eliminates joint failures and stress concentration points common in multi-component designs. These industrial plastic pallet maintain dimensional accuracy across temperature ranges while providing 15-20 year service life in typical commercial applications. The lightweight design reduces handling fatigue while steel reinforcement options accommodate varying load requirements without compromising structural integrity.
Industrial Plastic Pallets Technical Specifications
| Parameter | Value |
|---|---|
| Model | 503 Y1208WHS |
| Pallet Type | Grid deck, 3-runner (stringer) |

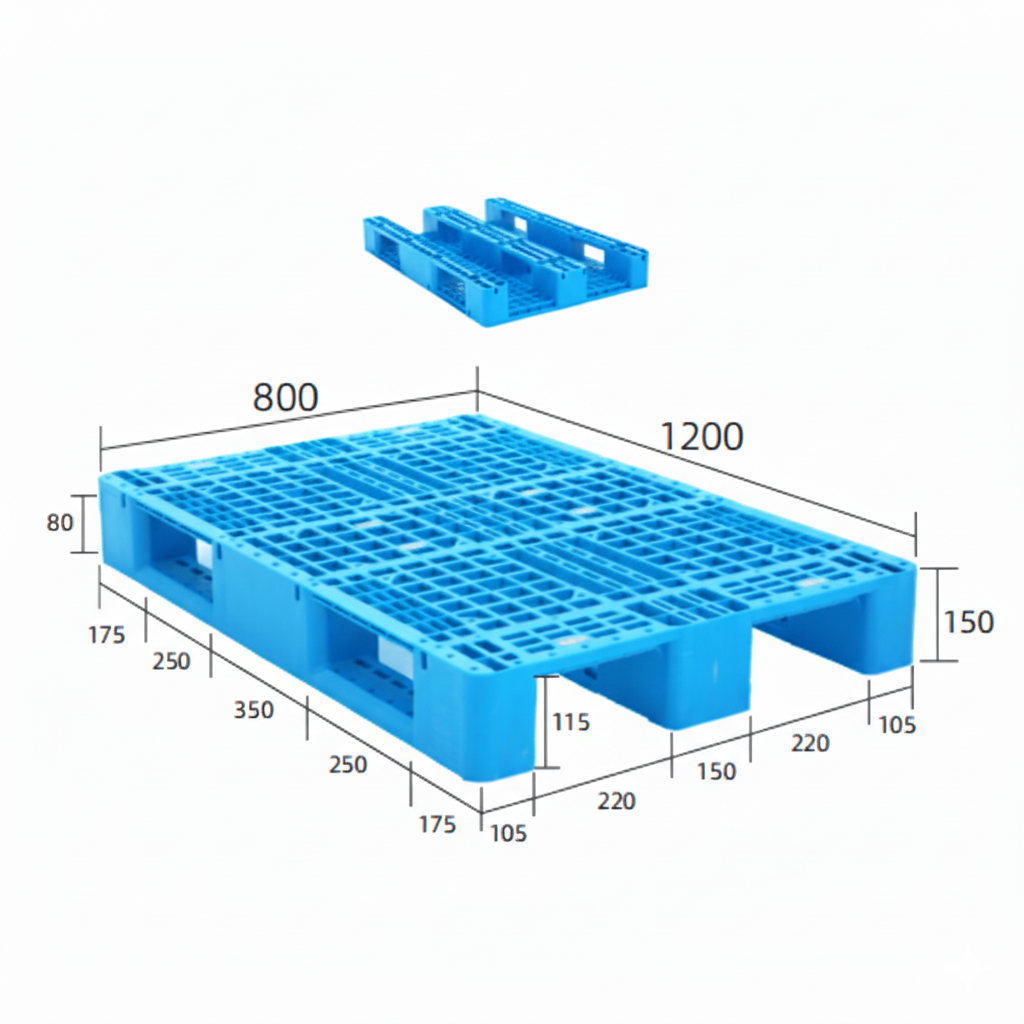

| Size (L × W) | 1200 × 800 mm |
| Deck Style | Grid |
| Base Style | 3-runner |
| Origin | Jiangsu |
| Plastic Weight | 10 kg |
| Steel Tube Weight | 6 kg (8 pcs steel tubes) |
| Load Capacity (no steel) | 1T / 4T |
| Load Capacity (with steel) | 1.5T / 6T / 1T |
| Container Loading Qty | 240 / 600 pcs |
| Manufacturing Process | One-piece molding |
